Boom protection system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 21, 2017
Issued Date -
N/A
app pub date -
May 23, 2016
filing date -
May 23, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

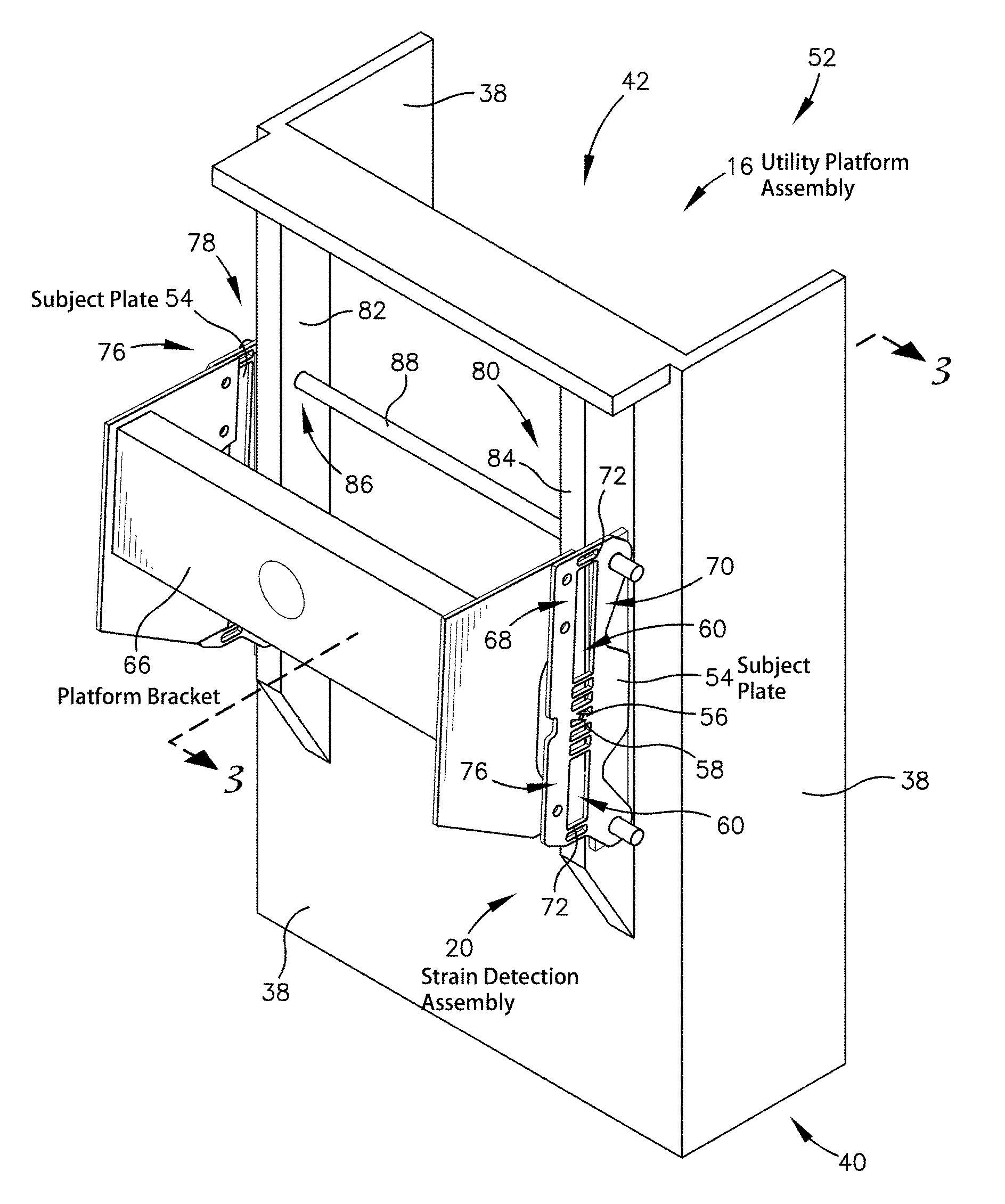

A boom protection system prevents damage to an insulated boom section. The boom protection system has a static strain-detection assembly, a pressure-detection assembly, and an alarm. The static strain-detection assembly is configured to determine a load disposed from an implement at a distal end of said insulated boom section. The static strain-detection assembly includes a subject plate presenting a void therein, a traversing member spanning the void, and a strain gauge disposed adjacent to the traversing member. The pressure-detection assembly is configured to detect pressure within a hydraulic cylinder that is associated with the insulated boom section. The pressure detection assembly comprises a first pressure gauge at a distal end of the hydraulic cylinder, and a second pressure gauge at a proximal end of the hydraulic cylinder. The alarm is configured to alert a user of potential structural damage to the insulated boom section.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2016 Application Filing Year
- G01L Class
- 1354 Applications Filed
- 1037 Patents Issued To-Date
- 76.59 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- G01L Class
- 20.58 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 21, 2028 |
