Seat structure with function of suspension
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 21, 2017
Grant Date -
Aug 6, 2015
app pub date -
Aug 30, 2012
filing date -
Aug 30, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

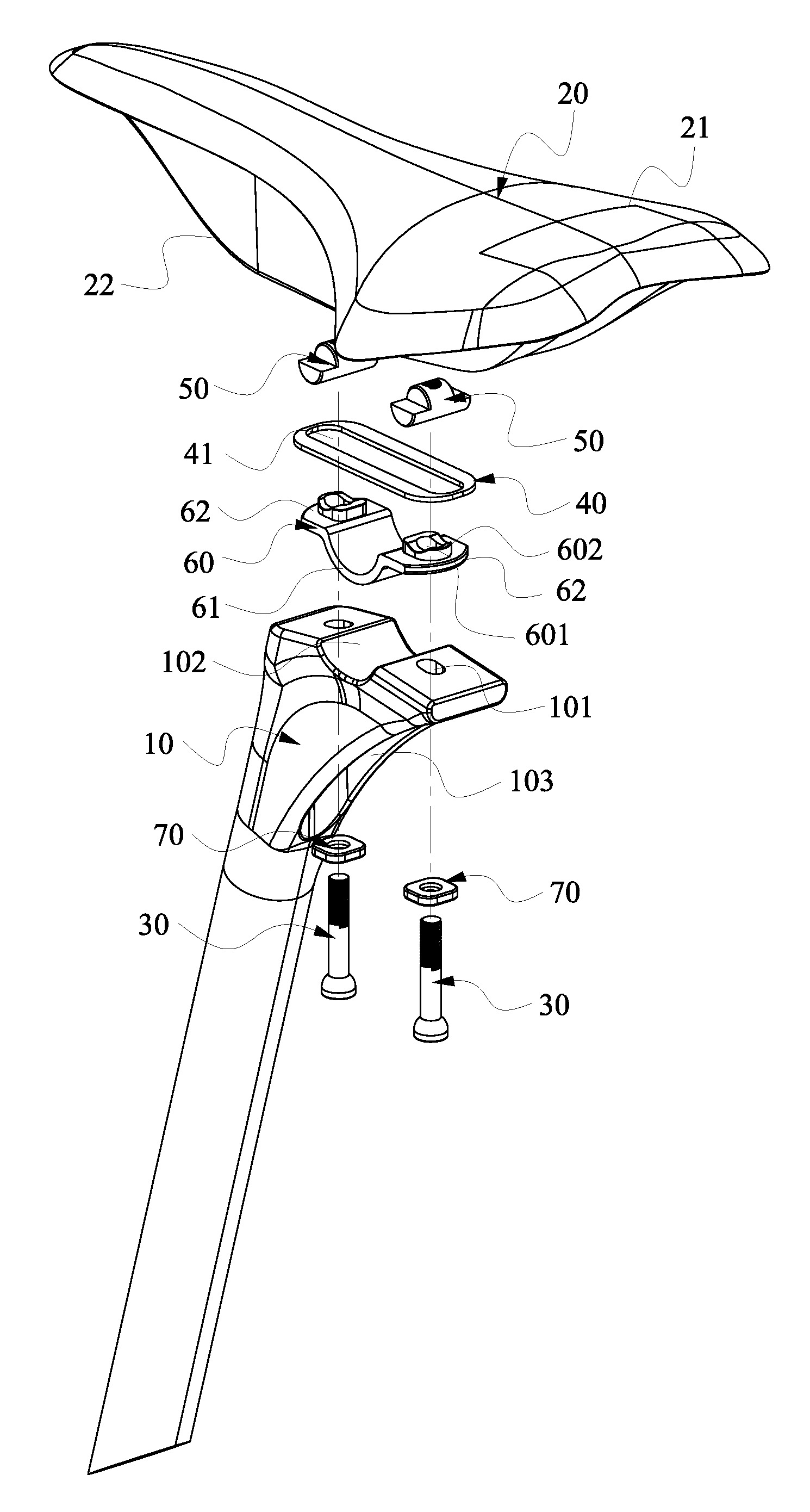

A seat structure with function of suspension includes a seat tube and a cushion body installed on the seat tube. The seat tube and cushion body are made of carbon-fiber materials. The cushion body includes an integrated seat and a bracket. The bracket is installed on the seat tube. The bracket is an arc piece. The front end of the bracket and the front end of the seat are integrally molded and connected to form a first angle. The rear end of the bracket and the rear end of the seat are integrally molded and connected to form a second angle. The first angle and the second angle are less than 90°, thereby enabling the seat being good elasticity relative to the bracket, which can effectively reduce the vibration transferred from the seat tube. The seat structure has larger elasticity coefficient and better effect of damping.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B62J Class
- 164 Applications Filed
- 143 Patents Issued To-Date
- 87.20 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B62J Class
- 24.55 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 21, 2028 |
