Device for taking samples from containers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 21, 2017
Grant Date -
Aug 13, 2015
app pub date -
Feb 6, 2015
filing date -
Feb 7, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

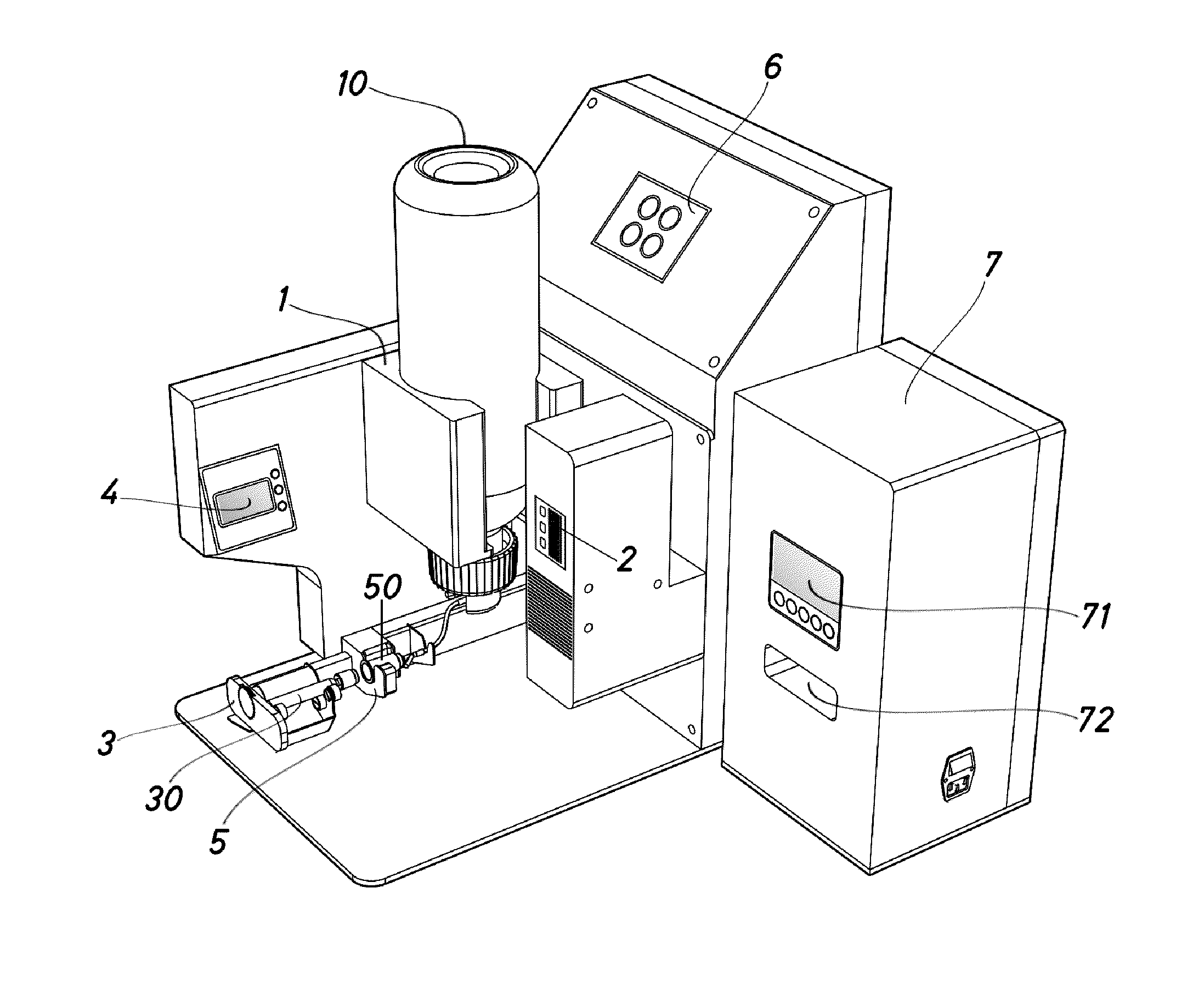

A device for taking samples from containers includes: a receiving body for at least one container; a container bar code reader positioned in the receiving body for containers; a support for a test tube with the ability to move; a bar code reader positioned in the support; and a fluid communication component between the container and the test tube. The support for test tubes includes at least a test tube loading position and a sample-taking position. The device also includes a controller configured to control position of the support for test tube. The controller can also include at least one sensor of the position of the support for test tube and a blocking component configured to block a position of said support for test tube.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- A61J Class
- 770 Applications Filed
- 558 Patents Issued To-Date
- 72.47 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A61J Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 21, 2028 |
