Switch strip, safety sensor strip and production method thereof, and also anti-trap protection
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 14, 2017
Grant Date -
Apr 14, 2016
app pub date -
May 14, 2014
filing date -
May 14, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

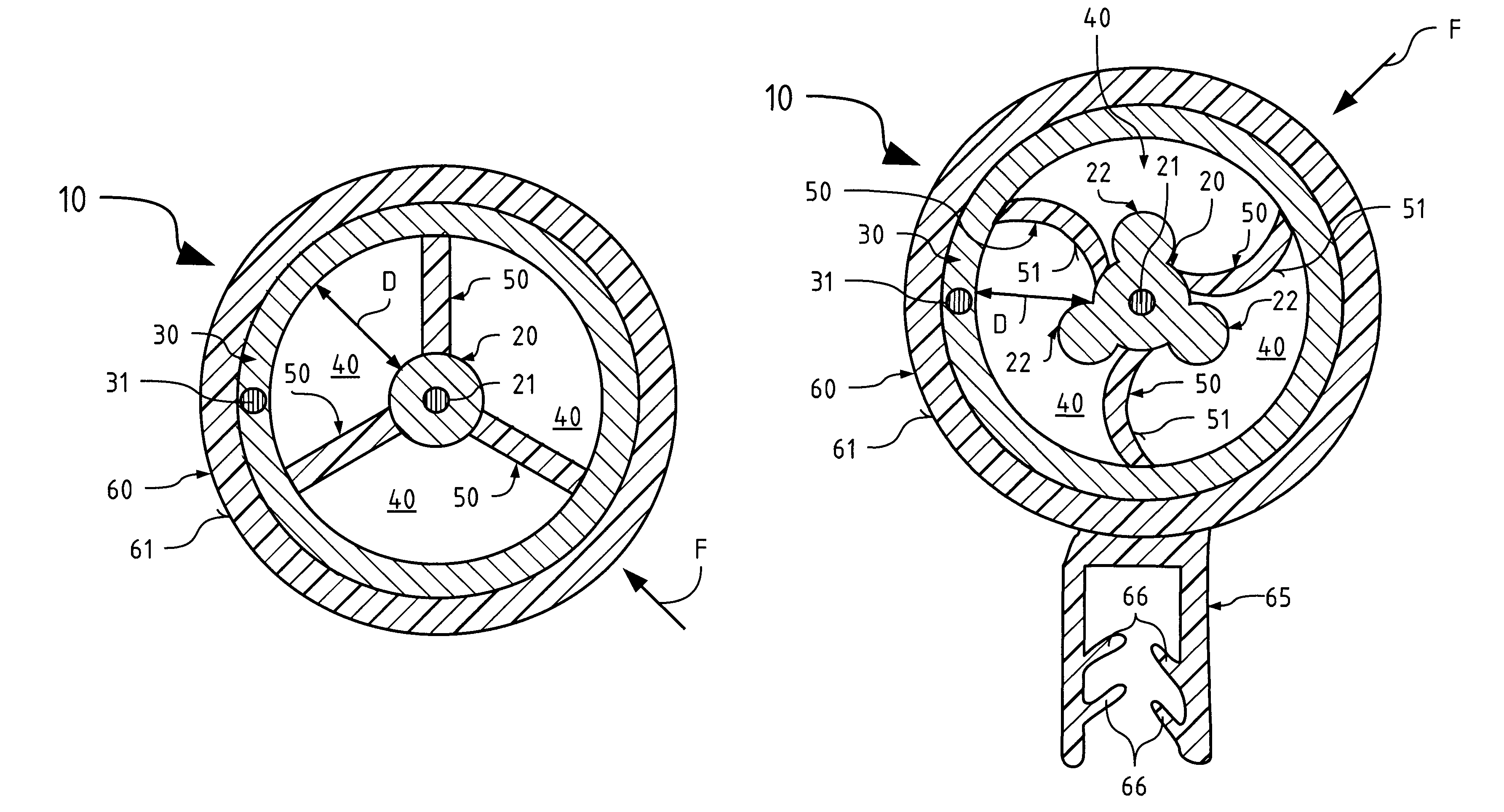

The invention relates to a switch strip (10) for an apparatus for detecting an obstruction (210) in the movement range (221) of a closure element (220), in particular of an automotive vehicle (200). The switch strip (10) has an inner electrode (20), an outer electrode (30) approximately concentrically surrounding the inner electrode (20) at a distance (D), and a space (40) filled with air, which is arranged between the outer electrode (30) and the inner electrode (20) and which is dielectric. Furthermore, the switch strip (10) has a spacer (50) which is deformable in a direction transverse to the longitudinal direction. The spacer (50) spaces and insulates the two electrodes (20, 30) from one another. The outer electrode (30) is deformable by a force (F) applied from the outside. The deformation of the outer electrode (30) is able to at least in portions bring the inner electrode (20) and the outer electrode (30) into contact with each other. Such a switch strip (10) is also referred to as a tactile switch strip (10).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- H03K Class
- 17.11 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 14, 2028 |
