Sheet processing apparatus and image forming system having the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 14, 2017
Issued Date -
N/A
app pub date -
Dec 15, 2014
filing date -
Dec 16, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

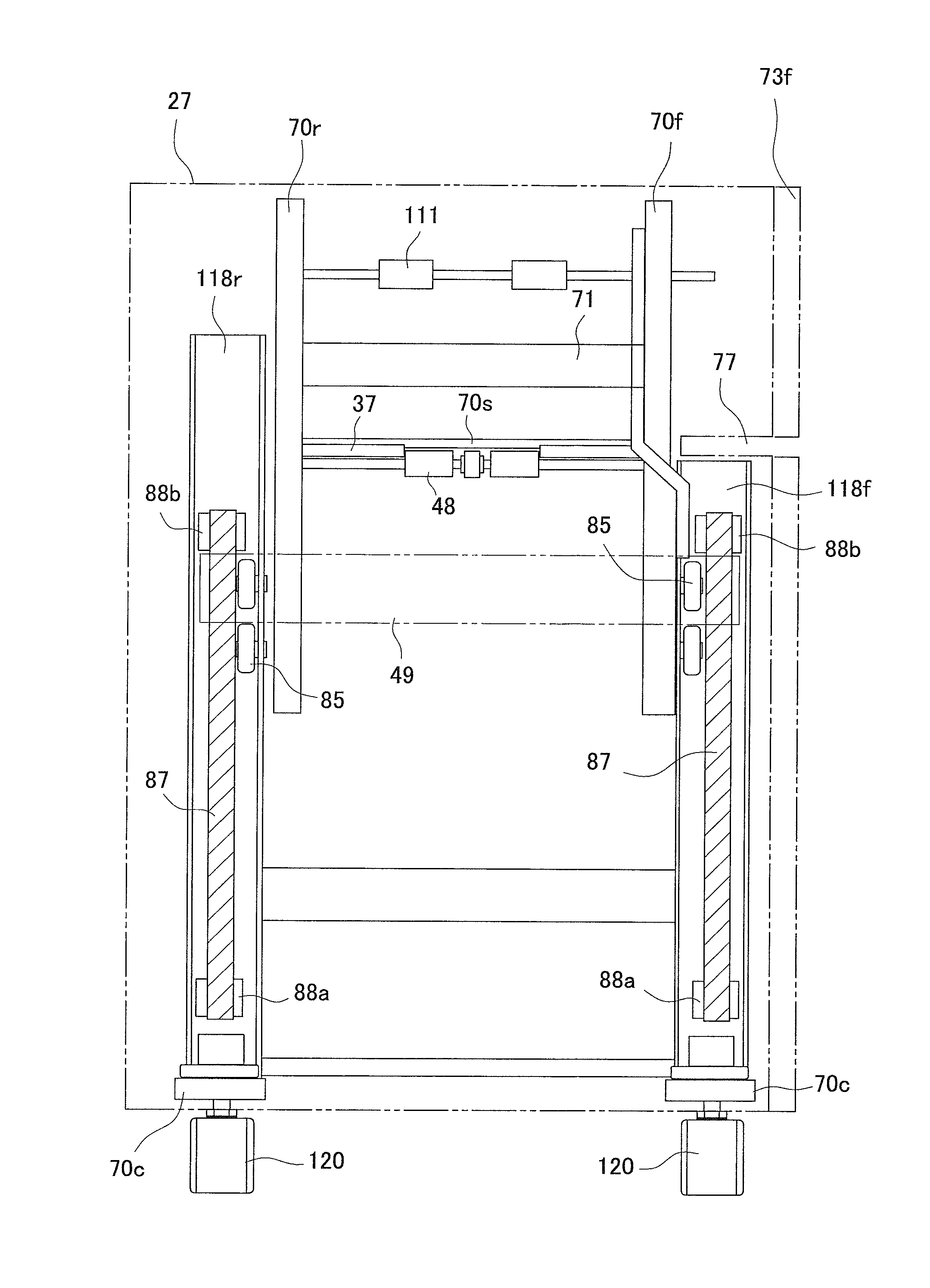

To provide a sheet storing apparatus or a sheet processing apparatus which is downsized and slimmed with a structure that a manual setting portion is arranged at an external casing of the sheet storing apparatus or the sheet processing apparatus. An apparatus includes a setting portion for a binding process to be performed on a sheet bundle inserted from the outside, a binding unit which performs the binding process on the sheet bundle inserted to the setting portion, a sheet conveying path which conveys a sheet, and a processing unit which performs a predetermined process on a sheet as being arranged at the sheet conveying path and being moved in a direction intersecting with a conveying direction of the sheet conveyed on the sheet conveying path, and a movement area of the processing unit in the intersecting direction and the setting portion are overlapped in the intersecting direction.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B60B Class
- 398 Applications Filed
- 349 Patents Issued To-Date
- 87.69 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- B60B Class
- 23.68 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 14, 2028 |
