Concrete mosaic
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 7, 2017
Grant Date -
May 26, 2016
app pub date -
Feb 1, 2016
filing date -
Nov 11, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

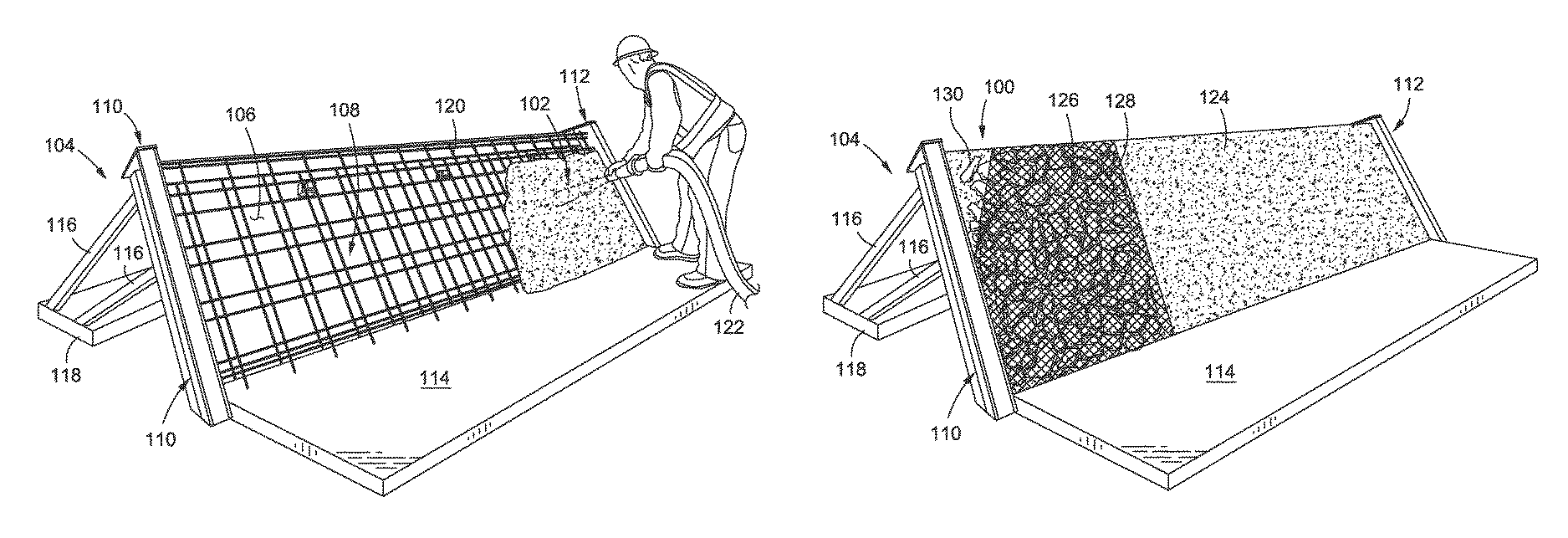

Provided is a method of installing a tile mosaic upon a vertical concrete surface. The method includes providing a plurality of tiles, a tile support, and a concrete form. The plurality of tiles are adhered to the tile support to define a mosaic assembly. The tiles are positioned on the tile support corresponding to the mosaic. The mosaic assembly is connected to the concrete form, and concrete is poured within the concrete form such that a portion of the tiles become embedded within the concrete. The tile support is subsequently detached from the concrete form and the concrete form is removed from the hardened concrete. The tile support is additionally removed from the plurality of tiles to reveal the mosaic on vertical surface of the concrete structure.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B28B Class
- 491 Applications Filed
- 307 Patents Issued To-Date
- 62.53 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- B28B Class
- 35 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 7, 2028 |
