Automatic turning device and spraying system using the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 7, 2017
Grant Date -
Jan 29, 2015
app pub date -
Jul 29, 2014
filing date -
Jul 29, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

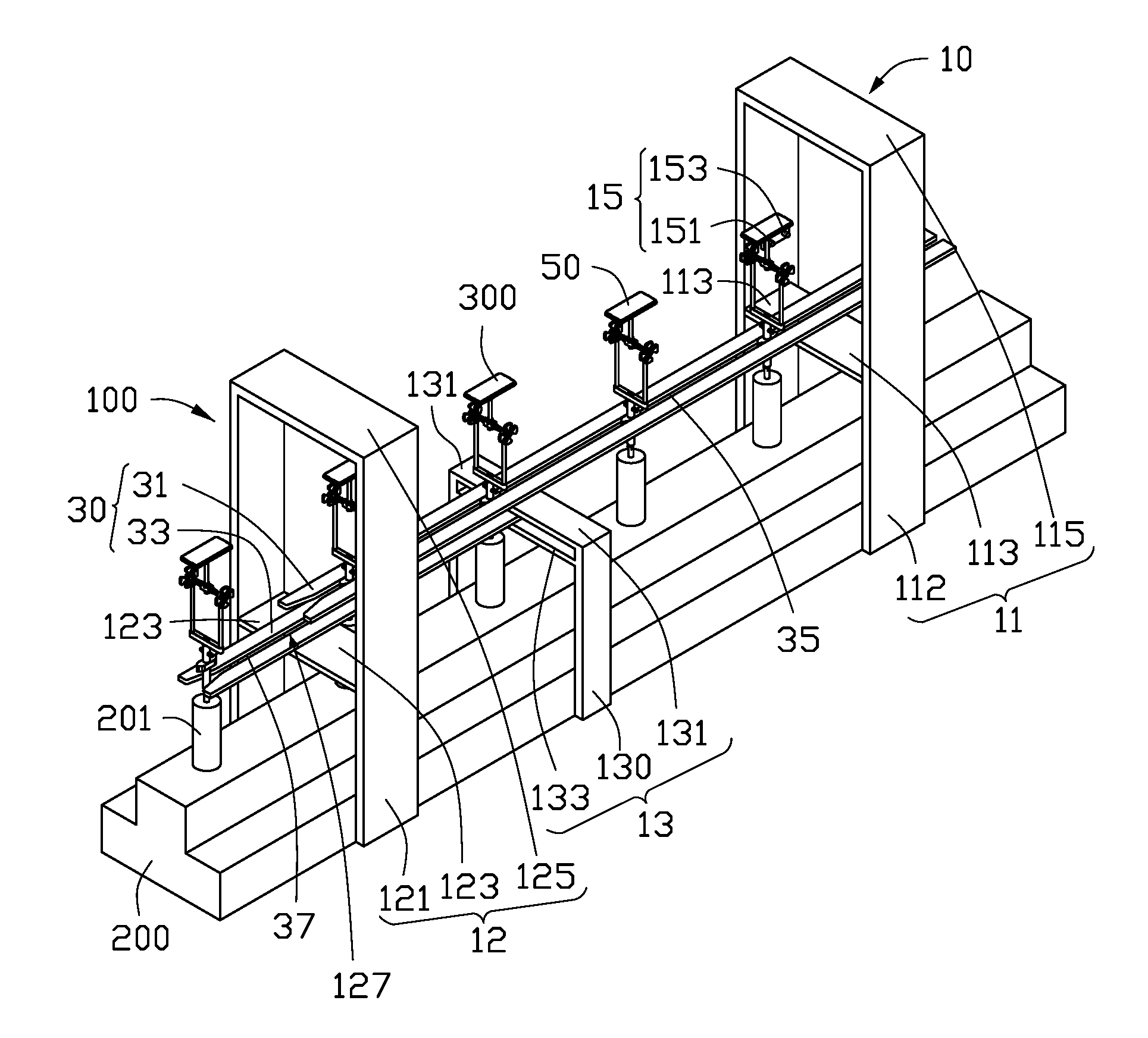

A spraying system includes a spraying device, a toasting device, a conveyor line, and a turning device. The spraying device is configured to spray a workpiece. The toasting device is configured to toast the workpiece. The conveyor line passes through the spraying device and the toasting device and is configured to convey the workpiece. The turning device is coupled to the conveyor line and includes a first fixing frame across the conveyor line, a turning mechanism, and a blocking member. The turning mechanism includes a bearing frame detachably coupled to the conveyor line, a rotation shaft rotatably coupled to the bearing frame; a rotatable member coupled to the rotation shaft; and a positioning member coupled to the rotation shaft and configured to couple the workpiece. The blocking member is coupled to the fixing frame and configured to block the rotatable member to rotate the rotation shaft, the positioning member.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2014 Application Filing Year
- B05B Class
- 1151 Applications Filed
- 958 Patents Issued To-Date
- 83.24 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B05B Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 7, 2028 |
