Porous silica aerogel composite membrane and method for making the same and carbon dioxide sorption device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 7, 2017
Issued Date -
N/A
app pub date -
Apr 9, 2014
filing date -
Oct 15, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

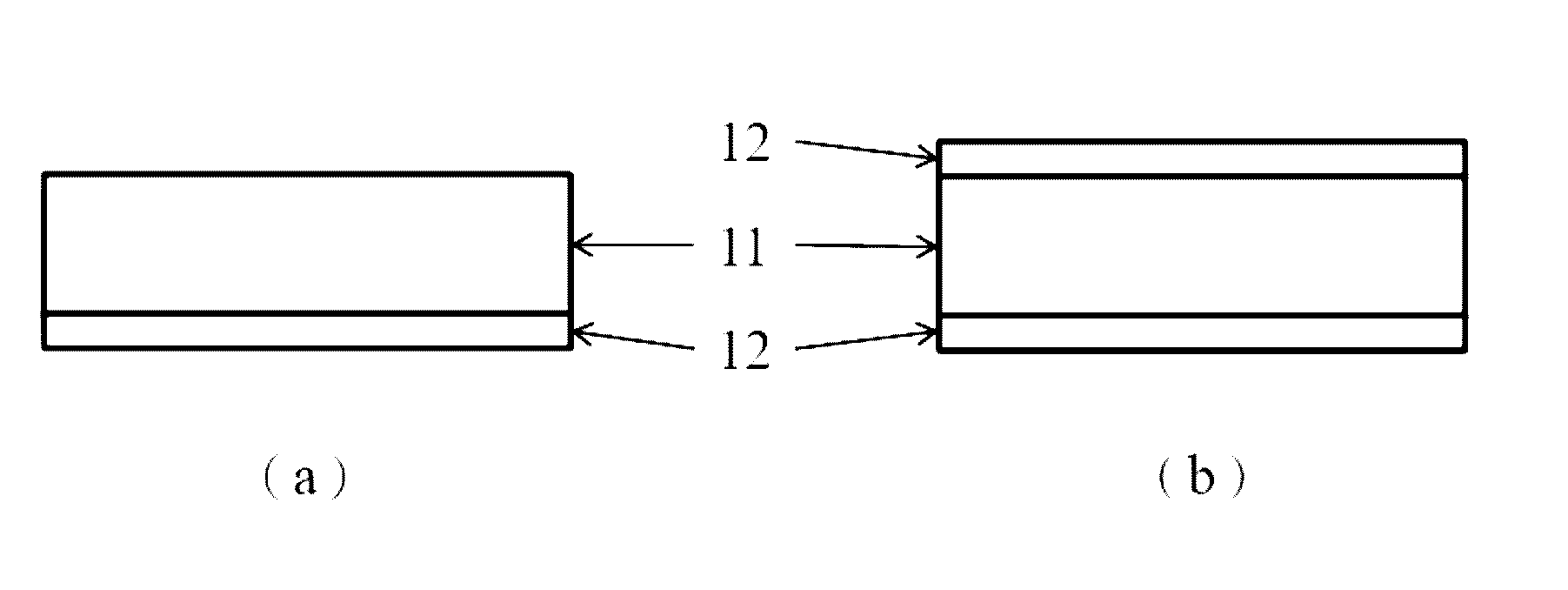

The present invention provides a porous silica aerogel composite membrane and method for making the same and a carbon dioxide sorption device. The porous silicon oxide aerogel composite membrane includes a porous aluminum oxide membrane having a plurality of macro pores with an average diameter larger than 50 nm and a porous silica aerogel membrane formed on at least one side of the porous aluminum oxide membrane and the macro pores of surface layers of the porous aluminum oxide membrane where the porous silica aerogel membrane has a plurality of meso pores with an average diameter of 2˜50 nm and is derived from methyltrimethoxysilane precursor by a sol-gel synthetic method.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B01J Class
- 3035 Applications Filed
- 2524 Patents Issued To-Date
- 83.17 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B01J Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 7, 2028 |
