Turbine for operation in a fluid
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 31, 2017
Grant Date -
Aug 27, 2015
app pub date -
Feb 25, 2015
filing date -
Feb 25, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

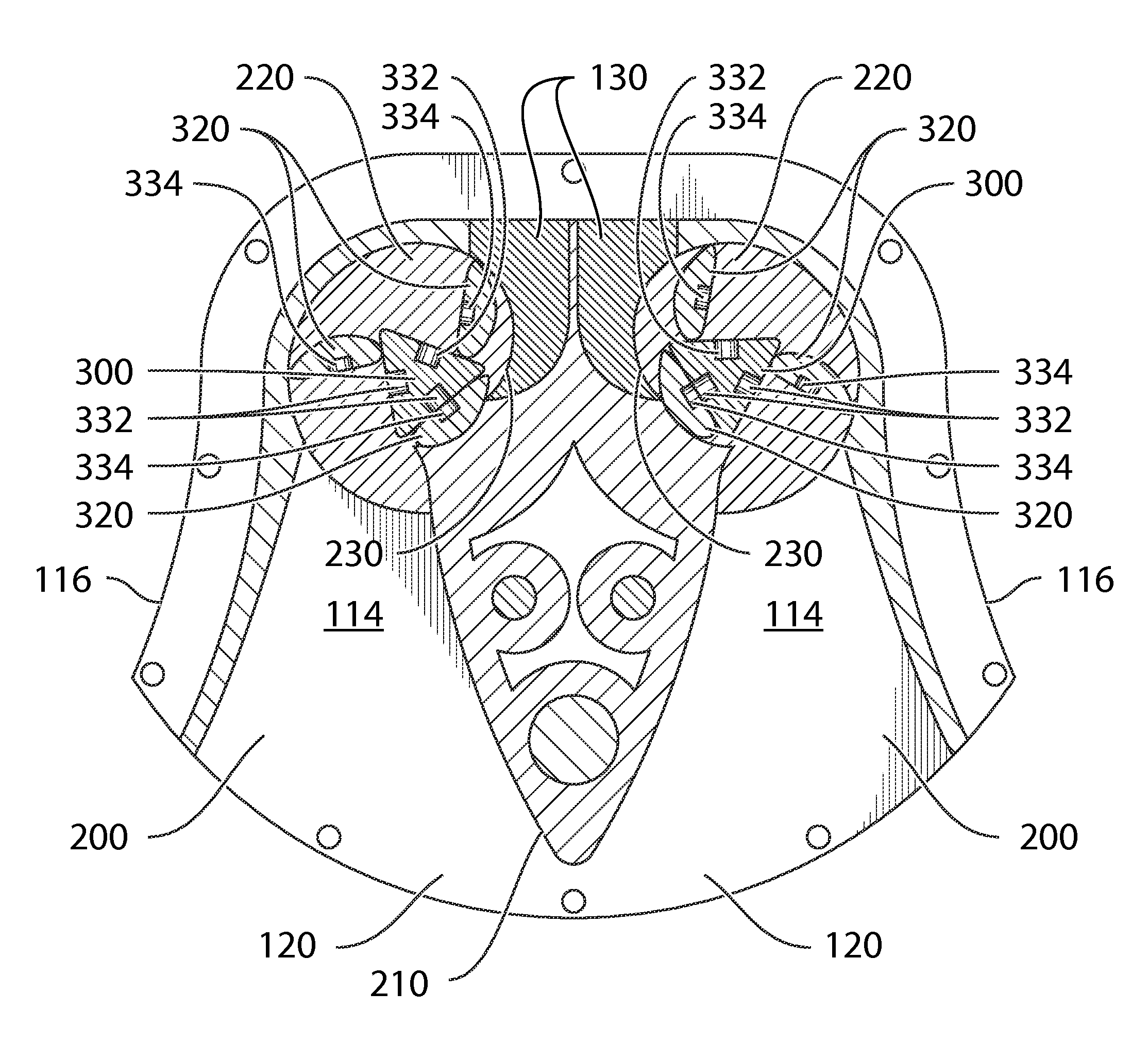

A turbine is provided, comprising a housing having a fluid inlet and a fluid outlet, each in communication with an internal chamber formed within the housing. A rotor is mounted for rotation within the internal chamber. At least one paddle is pivotally mounted to the rotor for pivoting between an extended position in which the paddle extends substantially radially from the rotor for receiving pressure exerted by fluid moving through the housing and causing the rotor to rotate, and a retracted position in which the paddle does not extend from the rotor. A cam is provided in the internal chamber for moving the paddle from the extended position to the retracted position when, during rotation of the rotor, the paddle moves past the cam in the extended position. Magnetic biasing means may be used to bias the paddle in the extended or retracted position.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H02K Class
- 2569 Applications Filed
- 1988 Patents Issued To-Date
- 77.39 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H02K Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 31, 2028 |
