Antenna which can be used as diversity antenna

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9559408
APP PUB NO 20140145889A1
SERIAL NO

14088120

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

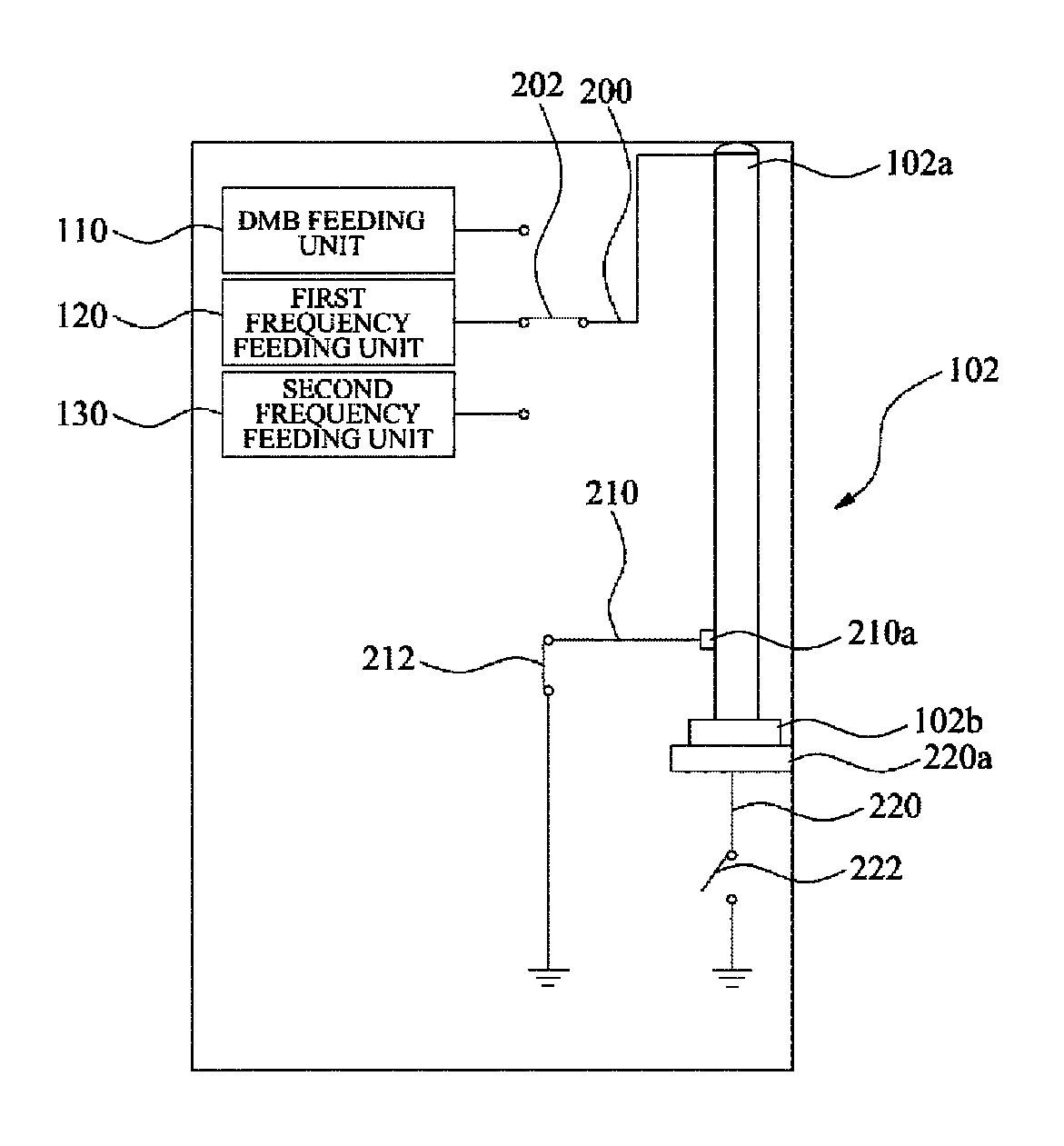

An antenna device capable of using an existing external antenna as a diversity antenna is disclosed. The disclosed antenna device includes: a radiator configured to be extensible to the outside of a terminal; a feeding switch configured to perform a switching operation for connecting one of a plurality of feeding units to the radiator; at least one conductive line of which a first end coming into contact with a part of the radiator when the radiator is inserted into the inside of the terminal; and at least one ground switch coupled to the at least one conductive line and configured to switch a connection between a second end of the conductive line and the ground. In accordance with the disclosed antenna device, it is possible to use an existing external antenna as a diversity antenna without installing an additional antenna.
