Device for the wet-treatment of laundry
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 31, 2017
Grant Date -
Jan 7, 2016
app pub date -
Jun 24, 2015
filing date -
Jul 2, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

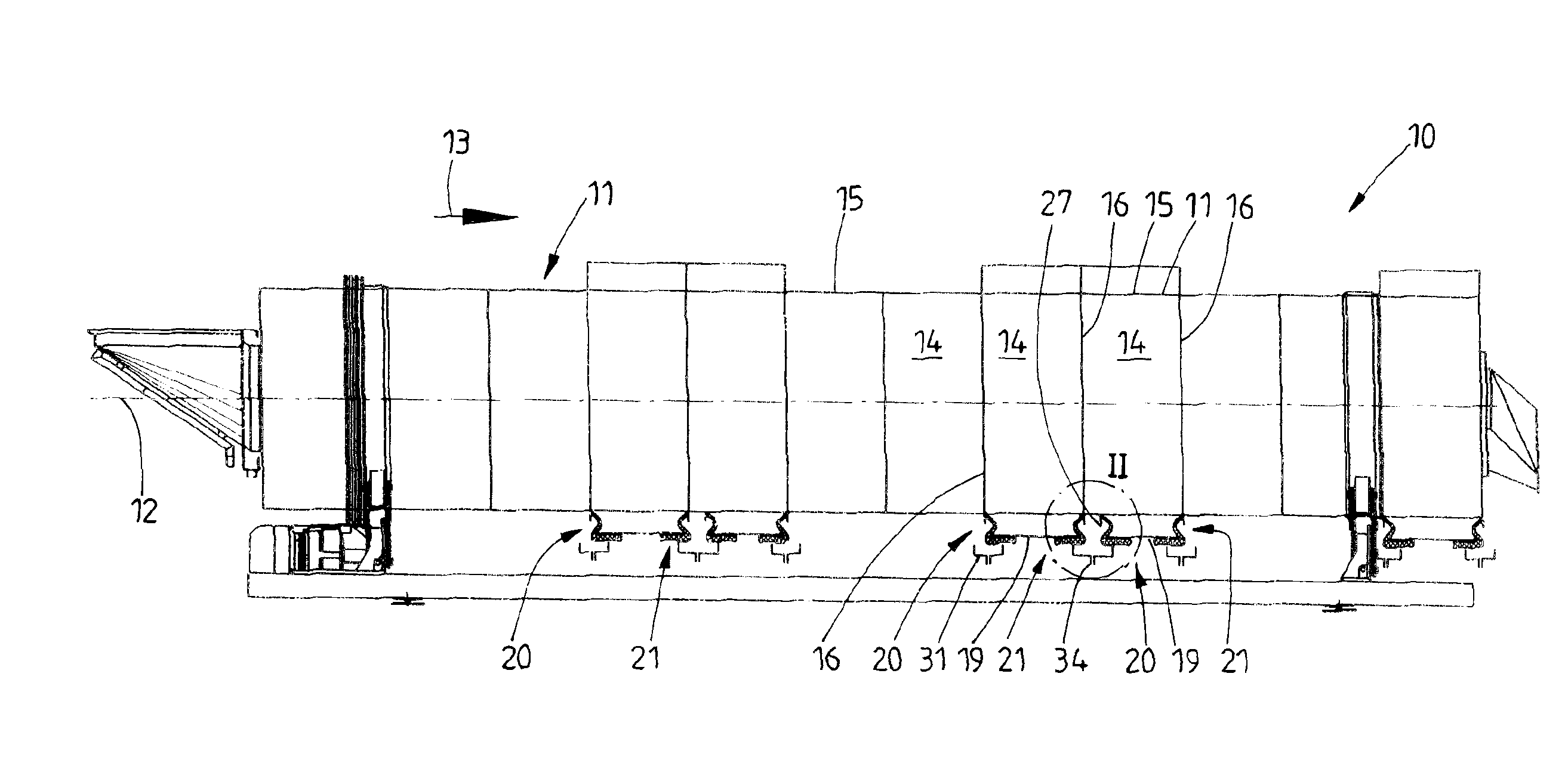

A device for the sealing of an external drum of a continuous-flow washing machines in relation to the internal drum in a more reliable manner and to prevent the risk of treatment liquid flooding from the one treatment chamber into the adjacent treatment chamber if a seal leaks by providing separate seals between adjacent external drums by each of the end faces of the adjacent external drums which point to one another having assigned thereto an own, preferably identically realized seal. In continuous-flow washing machines stationary external drums are assigned to some treatment chambers in a rotatingly drivable internal drum. Said stationary external drums have to be sealed relative to the treatment chambers of the rotatable internal drum. If one common seal is provided between adjacent external drums, if there are leaks, this results in total failure with treatment liquid flooding from the external drum into the adjacent external drum.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- D06F Class
- 565 Applications Filed
- 454 Patents Issued To-Date
- 80.36 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- D06F Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 31, 2028 |
