Magnesium-based composite member, heat radiation member, and semiconductor device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 31, 2017
Grant Date -
Jan 10, 2013
app pub date -
Mar 16, 2011
filing date -
Apr 2, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

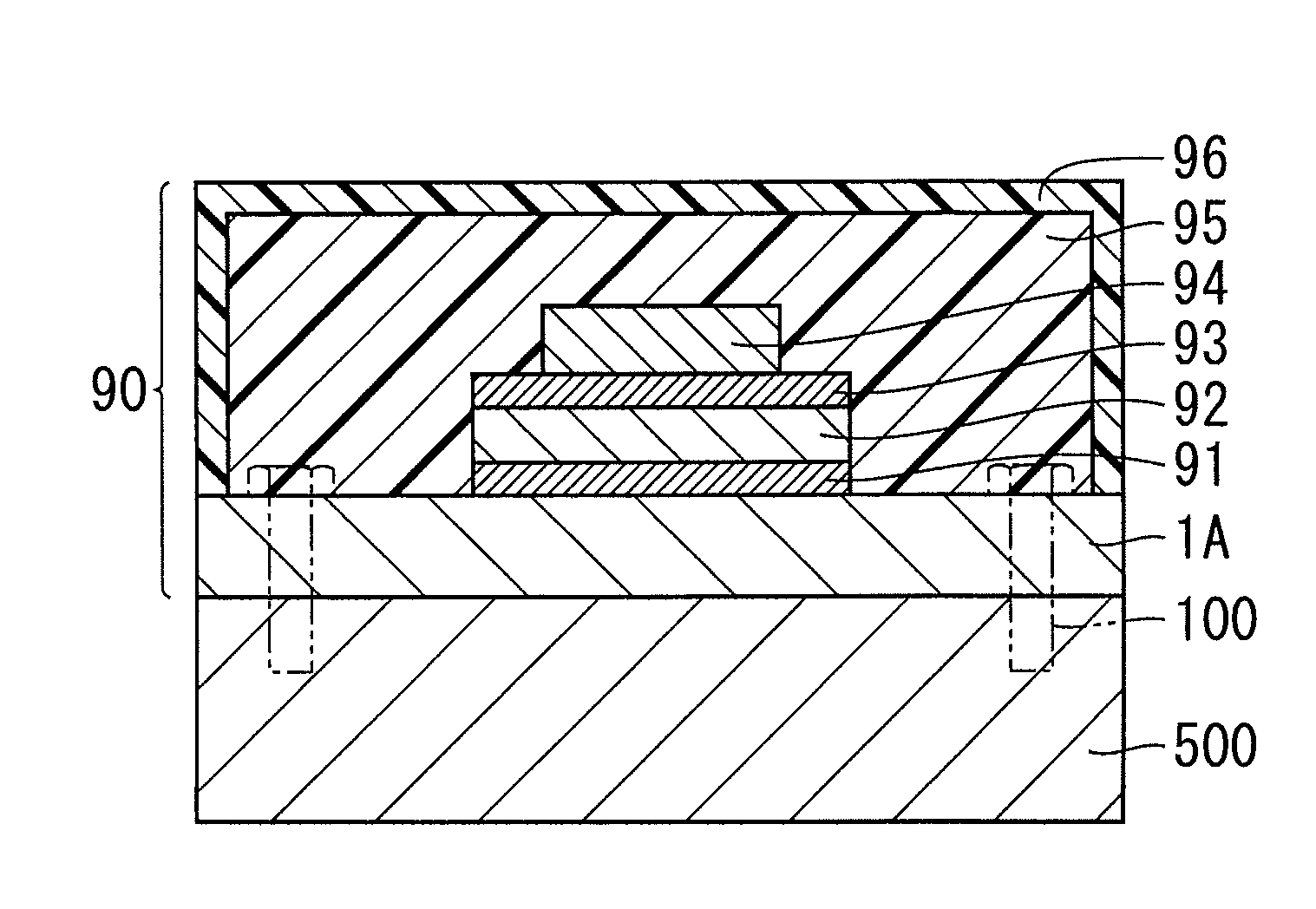

A magnesium-based composite member is provided with a through hole through which a fastening member for attachment to a fixing target is to be inserted. A substrate is provided with a substrate hole through which the fastening member is to be inserted, and made of a composite material which is a composite of SiC and a matrix metal which is any of magnesium and a magnesium alloy. A receiving portion is attached to the substrate and made of a metal material different from the matrix metal. The receiving portion is provided with a receiving portion hole through which the fastening member is to be inserted, and at least a part of an inner circumferential surface of the through hole is formed from an inner circumferential surface of the receiving portion hole.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H01L Class
- 18.50 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 31, 2028 |
