Deposition mask, producing method therefor and forming method for thin film pattern
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 31, 2017
Issued Date -
N/A
app pub date -
Mar 15, 2016
filing date -
Sep 16, 2011
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

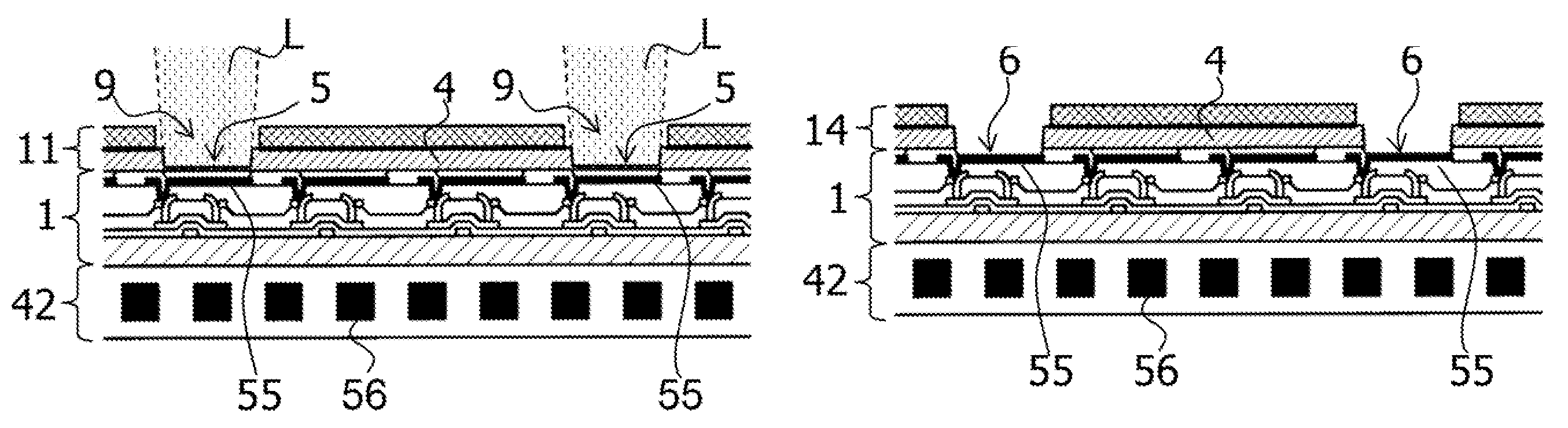

A deposition mask for forming a thin film pattern having a predetermined shape on a substrate by deposition, includes a resin film that transmits visible light and has an opening pattern penetrating through the resin film and having the same shape and dimension as those of the thin film pattern so as to correspond to a preliminarily determined forming region of the thin film pattern on the substrate.
