Ultra-wideband biconical antenna with excellent gain and impedance matching
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 24, 2017
Grant Date -
Oct 1, 2015
app pub date -
Feb 7, 2014
filing date -
Feb 7, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

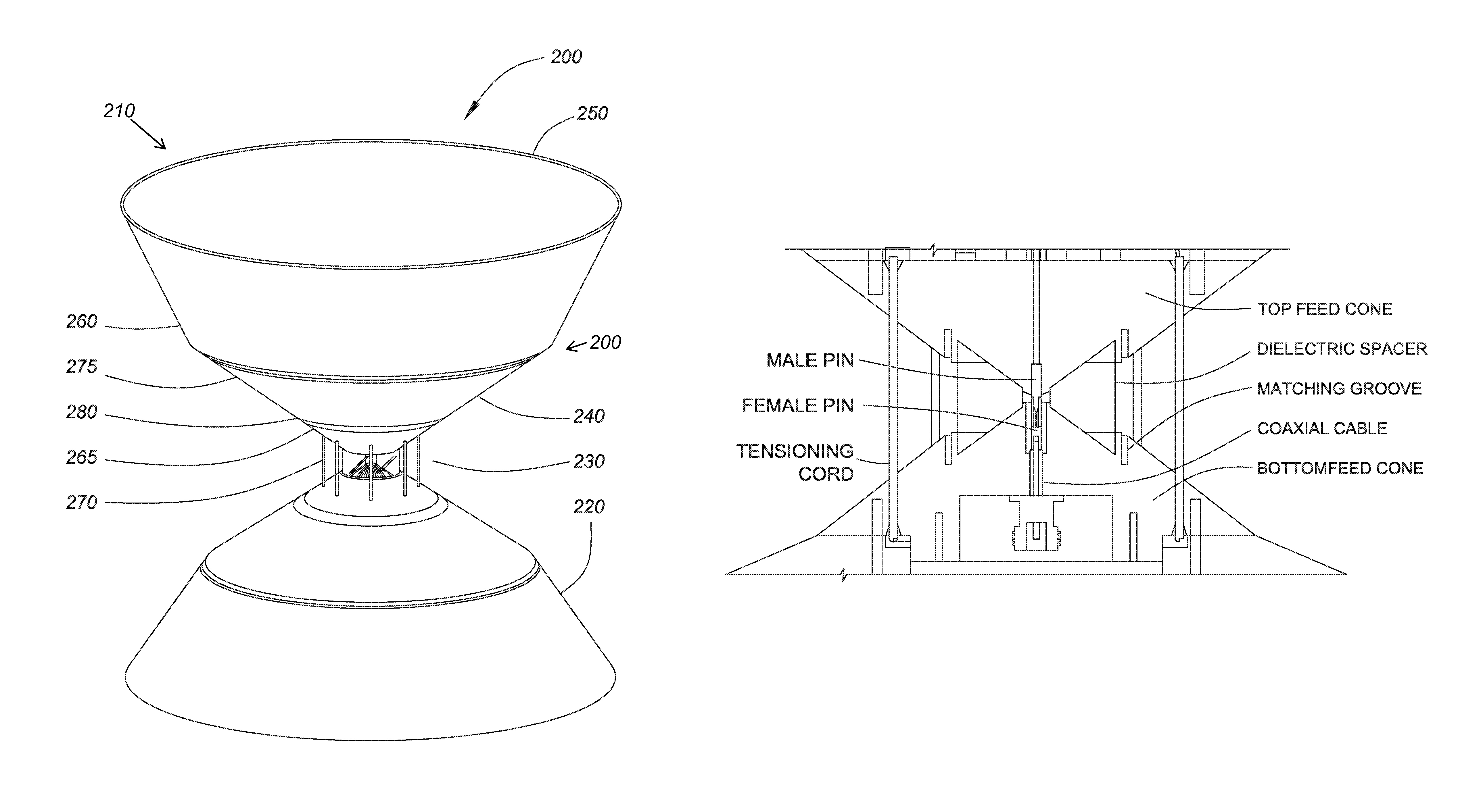

Systems and devices relating to a biconical antenna. The antenna has a top cone assembly and a bottom cone assembly, each cone assembly being coupled to a dielectric spacer at its apex. Each cone assembly has a cone section and a truncated cone section. The cone section is a cone with an apex which forms the apex of the cone assembly. The truncated cone section is coupled to the cone of the cone section at the cone's rim. The cone has an opening angle which is larger than the opening angle of the truncated cone. The biconical antenna can be fed by way of a coaxial cable with the outer cable feeding the bottom cone assembly and the inner cable feeding the top cone assembly.
