US Patent No: 9551330

Frangible closure coupling for liquid natural gas tank

---

Abstract

---

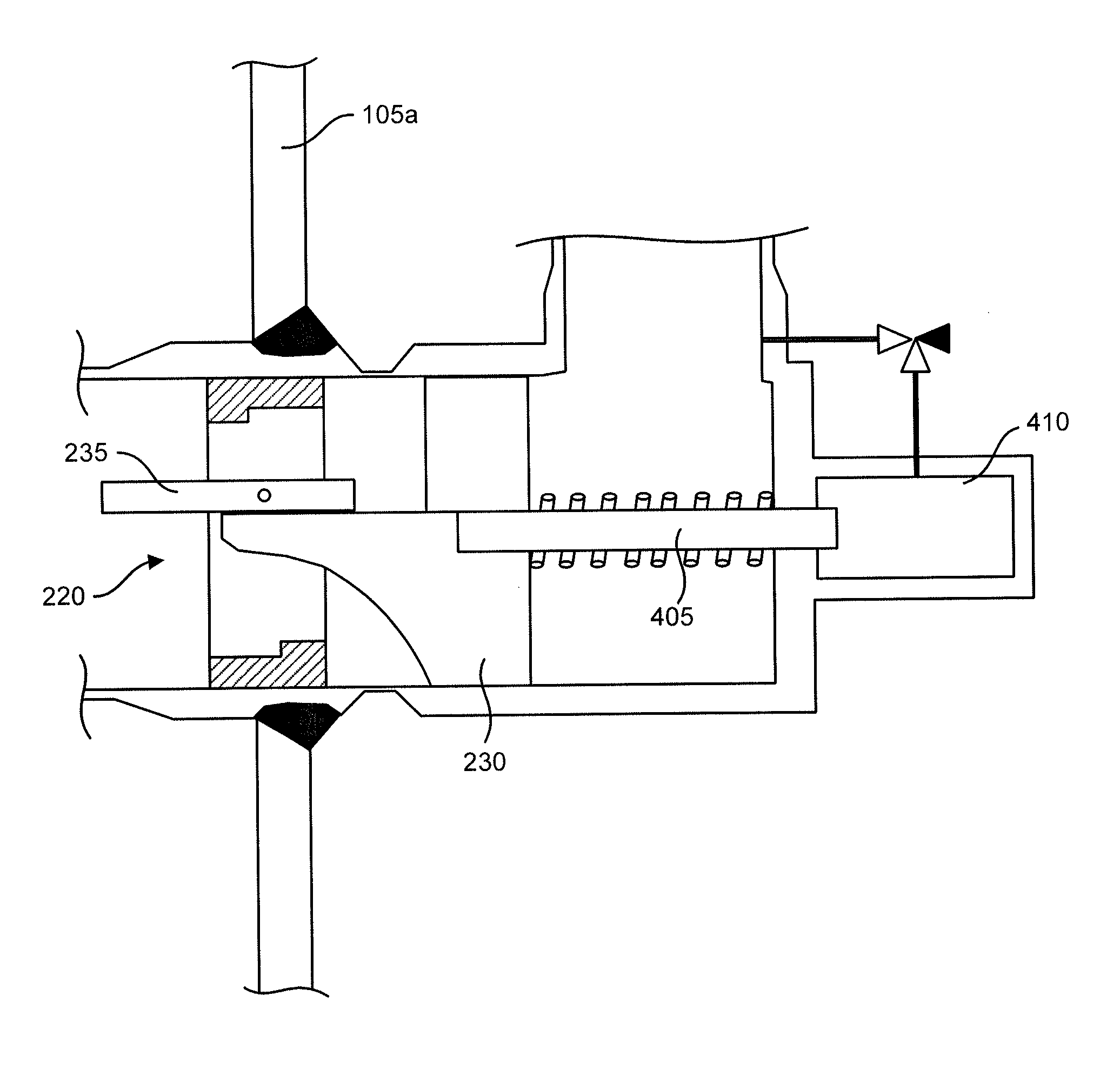

A frangible closure coupling is used with or on pipe of a tank that contains a potentially dangerous fluid, such as liquid natural gas. The closure coupling mitigates the uncontrolled release of fluid from the tank in the event of a rupture of a pipe attached to the tank.

---



---
