Desalination apparatus and process
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 24, 2017
Grant Date -
Jul 14, 2011
app pub date -
Aug 31, 2009
filing date -
Sep 4, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

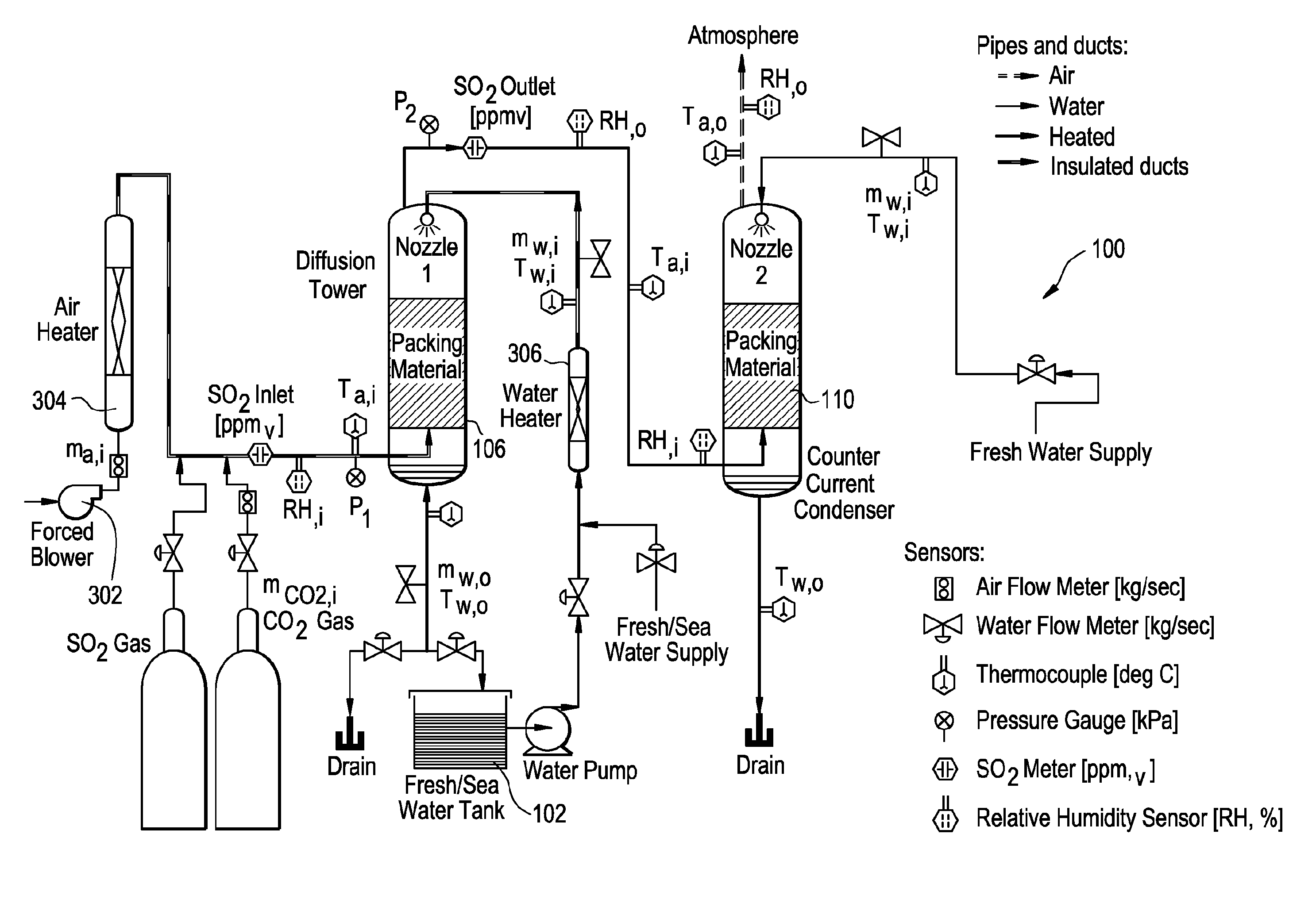

Disclosed herein are an apparatus and a process that can be used to remove sulfur dioxide other environmentally hazardous contaminants from a gaseous waste stream while at the same time providing a source of purified water. The process can be used for the desalination of sea or brackish water, or for the concentration of contaminated waste water. The method comprises feeding a gaseous waste stream that comprises sulfur dioxide into a diffusion tower. Feed water is sprayed onto a packing material in the diffusion tower to form a thin film of feed water on a surface of the packing material. Sulfur dioxide diffuses into the thin film of feed water to form water that contains sulfur dioxide. The gaseous waste stream is simultaneously humidified. The humidified gaseous waste stream is then subjected to direct contact condensation to obtain purified water.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 25 Citation Count
- C02F Class
- 98.08 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 24, 2028 |
