type crystal and graphene, method for its manufacture and chip comprising the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 17, 2017
Grant Date -
Aug 20, 2015
app pub date -
Sep 18, 2013
filing date -
Sep 18, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Calculated Rating
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

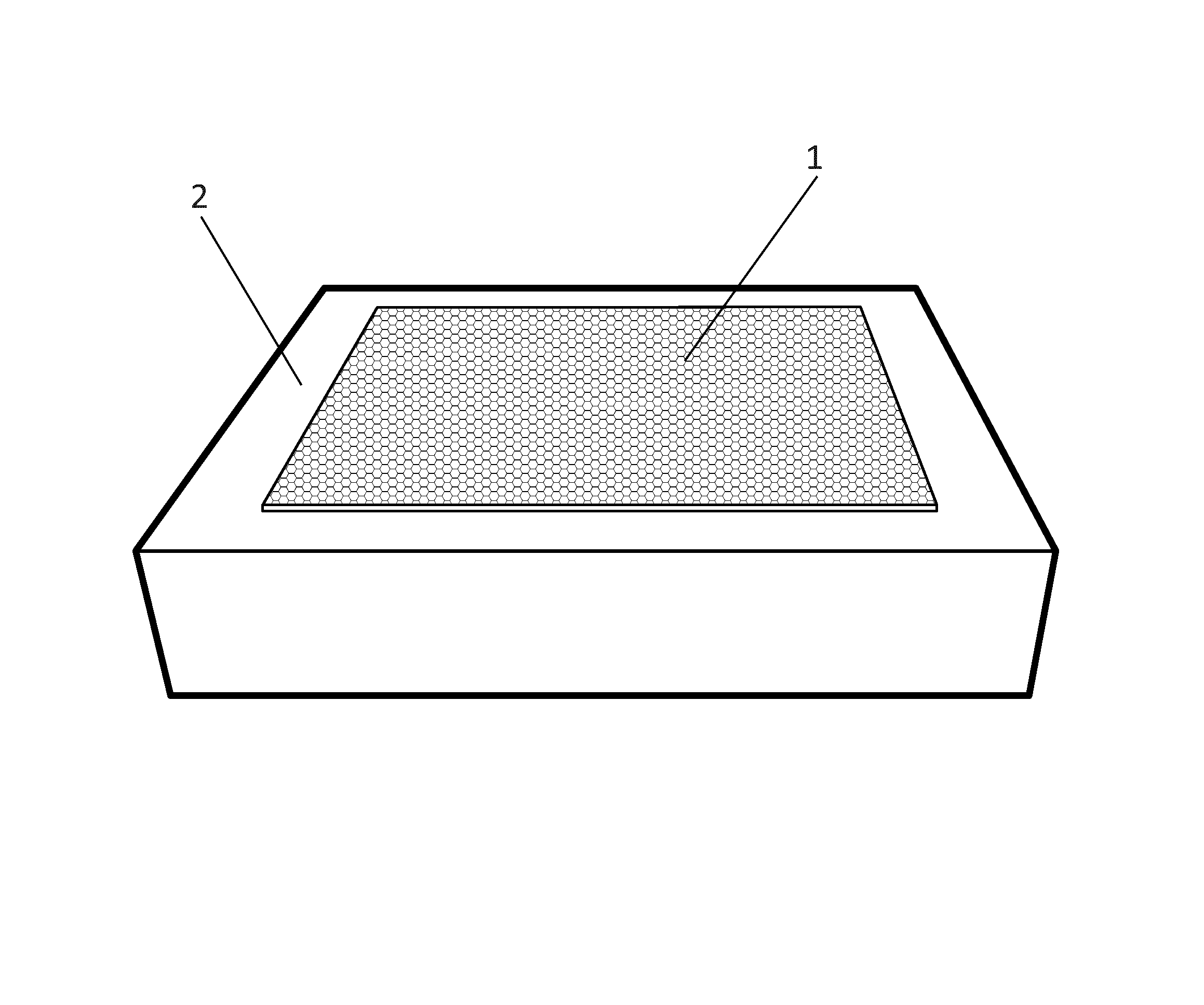

An electronic platform comprising a substrate made of a ABO3 crystal (2) and at least one layer of a two-dimensional conducting sheet of carbon atoms (1) of a thickness between one and four atoms, characterized in that the conducting layer(s) is (are) placed on top of a face of the crystal whose orthogonal axis is at an angle up to 35° of the crystal's spontaneous polarization or c-axis. The invention achieves a sheet resistance lower than 1 Ω/square at temperatures higher than 77K.
