Cable-based measuring system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 10, 2017
Grant Date -
Mar 19, 2015
app pub date -
Dec 19, 2012
filing date -
Jan 9, 2012
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

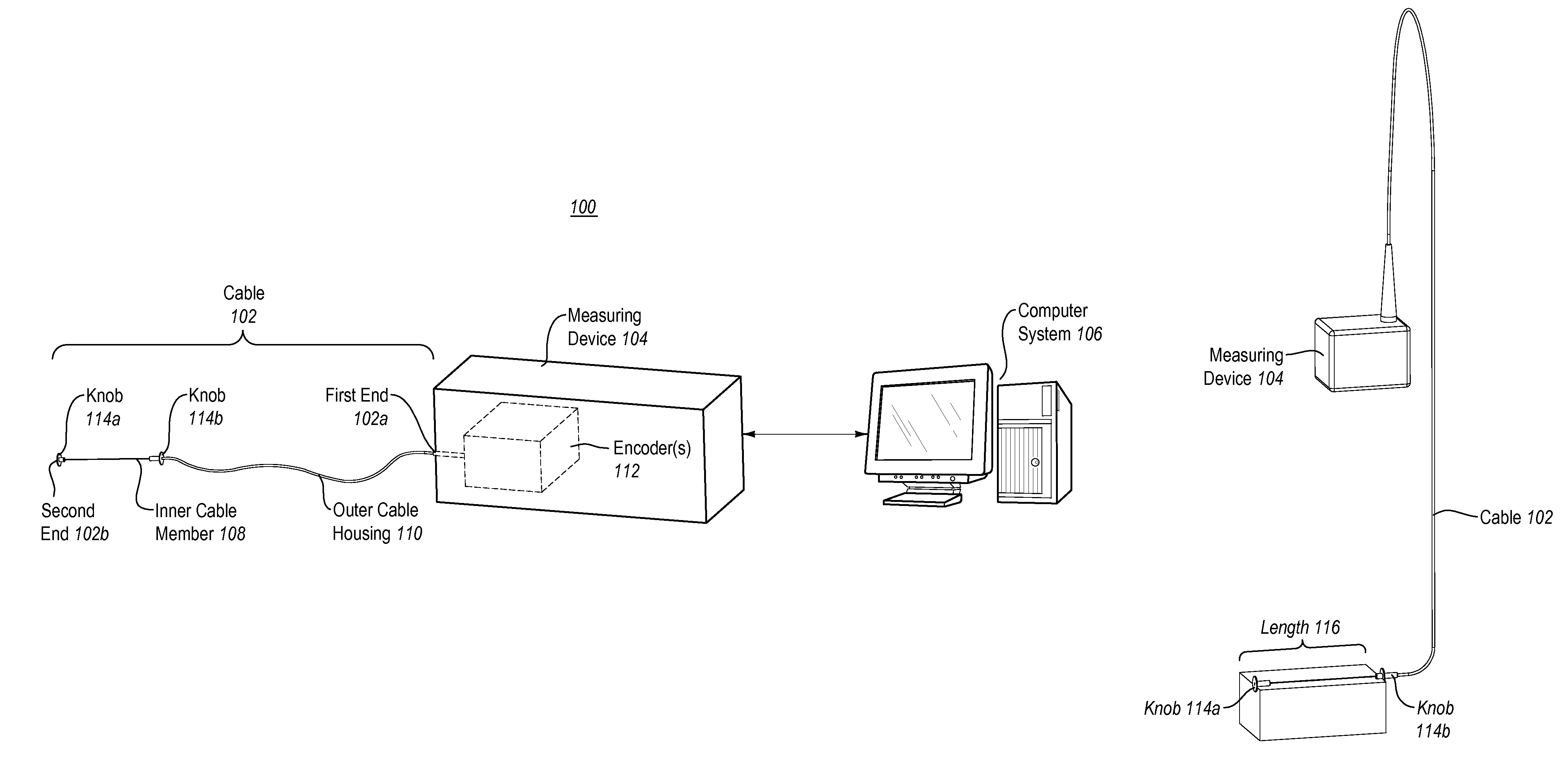

The present invention extends to methods, systems, apparatus, and computer program products related to a cable-based measuring system. The cable-based measuring system includes a cable, comprising an inner cable member configured to move linearly within an outer cable housing. The measuring system also includes a measuring device configured to generate measurement information regarding movement of the inner cable member relative to the outer cable housing using one or more encoders. A computer system receives the measurement information from the measuring device. The measurement information indicates length as a function of time, and represents three orthogonal dimensional measurements of a three-dimensional object. Based on the measurement information, the computer system identifies a length of each dimensional measurement, including a length, a width, and a height of the three-dimensional object. The computer system then initiates creation of a box template sized to accommodate the three-dimensional object and/or updates a database.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
PACKSIZE LLC | 6440 WASATCH BOULEVARD SALT LAKE CITY UT 84121 |
International Classification(s)

- 2012 Application Filing Year
- G01B Class
- 1778 Applications Filed
- 1478 Patents Issued To-Date
- 83.13 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Pettersson, Niklas | Vasteras, SE | 129 | 1411 |
# of filed Patents : 129 Total Citations : 1411 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 2 Citation Count
- G01B Class
- 16 % this patent is cited more than
- 8 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 10, 2028 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
Date | Code | Event | Description |
---|---|---|---|
May 14, 2021 | MAFP | MAINTENANCE FEE PAYMENT | free format text: PAYMENT OF MAINTENANCE FEE, 4TH YEAR, LARGE ENTITY (ORIGINAL EVENT CODE: M1551); ENTITY STATUS OF PATENT OWNER: LARGE ENTITY year of fee payment: 4 |
Nov 14, 2017 | I | Issuance | |
Oct 25, 2017 | STCF | INFORMATION ON STATUS: PATENT GRANT | free format text: PATENTED CASE |
Sep 11, 2014 | P | Published | |
Mar 05, 2013 | F | Filing | |
Mar 05, 2013 | PD | Priority Date | |
Mar 04, 2013 | AS | ASSIGNMENT | free format text: ASSIGNMENT OF ASSIGNORS INTEREST;ASSIGNORS:BYNUM, ANTHONY EUGENE;JOHNSON, BRADLEY THOMAS;REEL/FRAME:029922/0725 Owner name: RTC INDUSTRIES, INC., ILLINOIS Effective Date: Mar 04, 2013 |
