Valve manifold
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 10, 2017
Grant Date -
Sep 22, 2011
app pub date -
Mar 14, 2011
filing date -
Mar 16, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

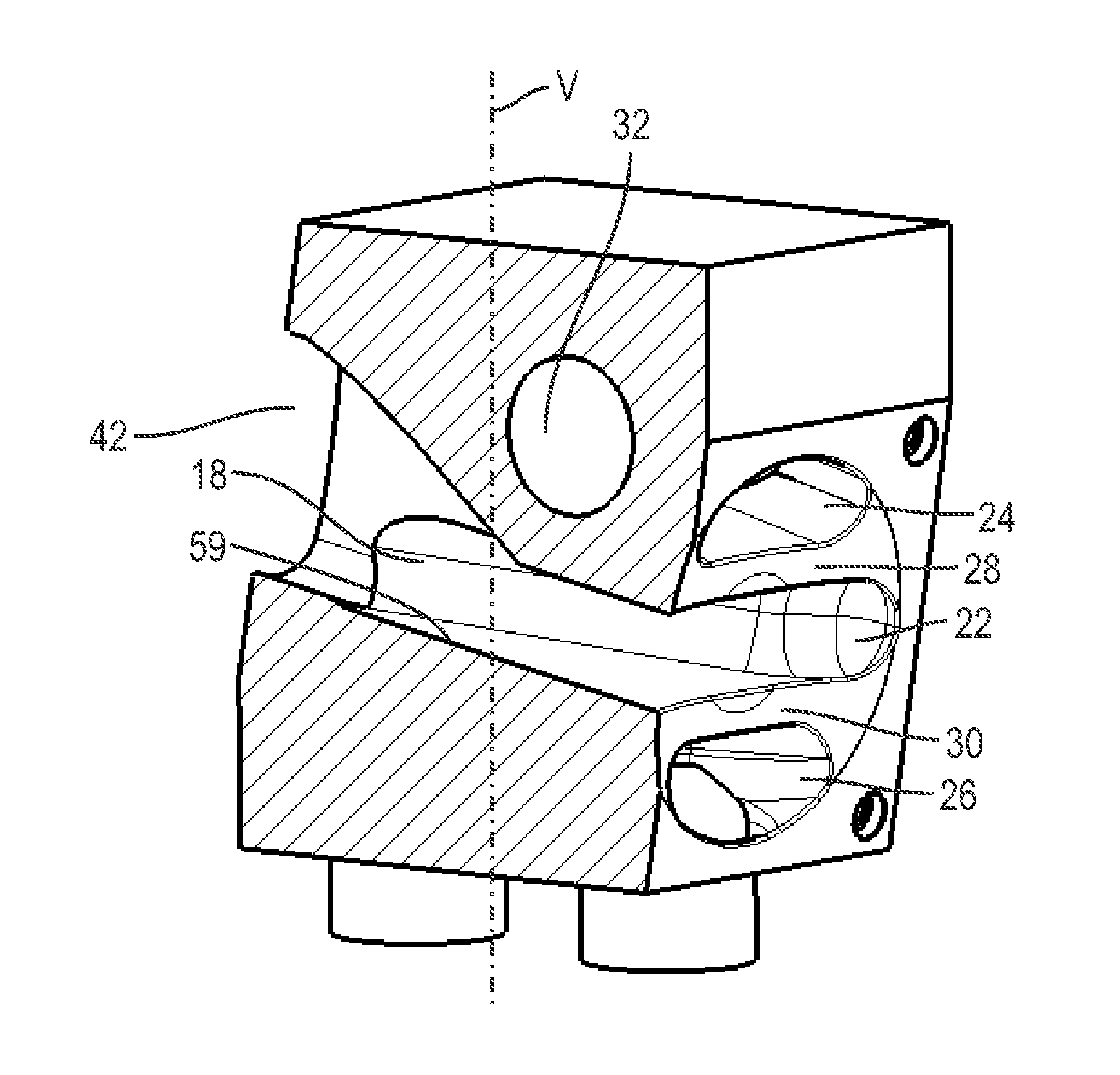

A valve manifold has a housing with a central mixing chamber and a shell surface. The shell surface of the valve manifold has at least two valve ports, with each valve port being associated with one valve. A first valve port has three openings, and additional valve ports each having three openings. A respective first opening of the valve ports is in direct fluid communication with the central mixing chamber, and the second and third openings of the valve ports are each in fluid communication with an inflow or outflow via a duct. A bottom of the mixing chamber, in relation to a plane arranged perpendicularly to a vertical longitudinal axis of the housing, has a slope towards the first opening of the first.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- F16K Class
- 1299 Applications Filed
- 961 Patents Issued To-Date
- 73.98 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16K Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 10, 2028 |
