Floating wave energy converter with semi-submersble characteristic
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 10, 2017
Grant Date -
Nov 20, 2014
app pub date -
May 24, 2012
filing date -
May 14, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

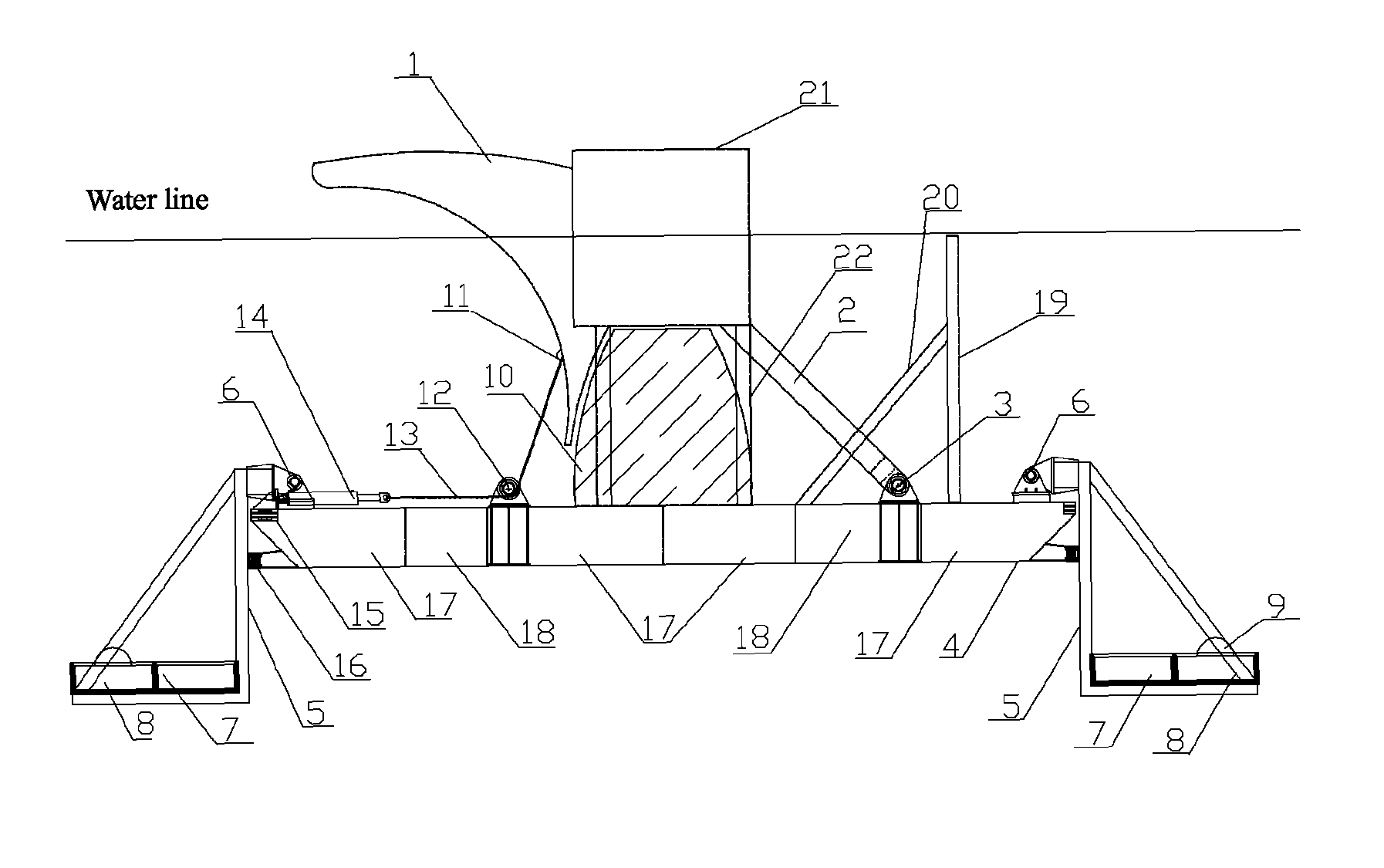

A floating eagle type wave power generating device includes an eagle-head-shaped wave absorption floating body, a ship-shaped underwater appendage and a door-shaped support arm. The eagle-head-shaped wave absorption floating body is fixedly connected with an upper end of the door-shaped support arm. A lower end of the door-shaped support arm is connected with first hinges. The first hinges are fixedly connected with the ship-shaped underwater appendage through a base. The door-shaped support arm, together with the eagle-head-shaped wave absorption floating body, can rotate around the first hinges. L-shaped underwater appendages, mounted at two ends of the ship-shaped underwater appendage, are connected with the ship-shaped underwater appendage through second hinges and can rotate around the second hinges. A main floating body is arranged above the ship-shaped underwater appendage and below the eagle-head-shaped wave absorption floating body. The ship-shaped underwater appendage is provided with buoyancy compartments and equipment compartments.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- F03B Class
- 303 Applications Filed
- 216 Patents Issued To-Date
- 71.29 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- F03B Class
- 19.82 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 10, 2028 |
