Mechanism with simplified handling for controlling a device for sealingly connecting two enclosed spaces
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 10, 2017
Grant Date -
Aug 21, 2014
app pub date -
Sep 28, 2012
filing date -
Sep 30, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

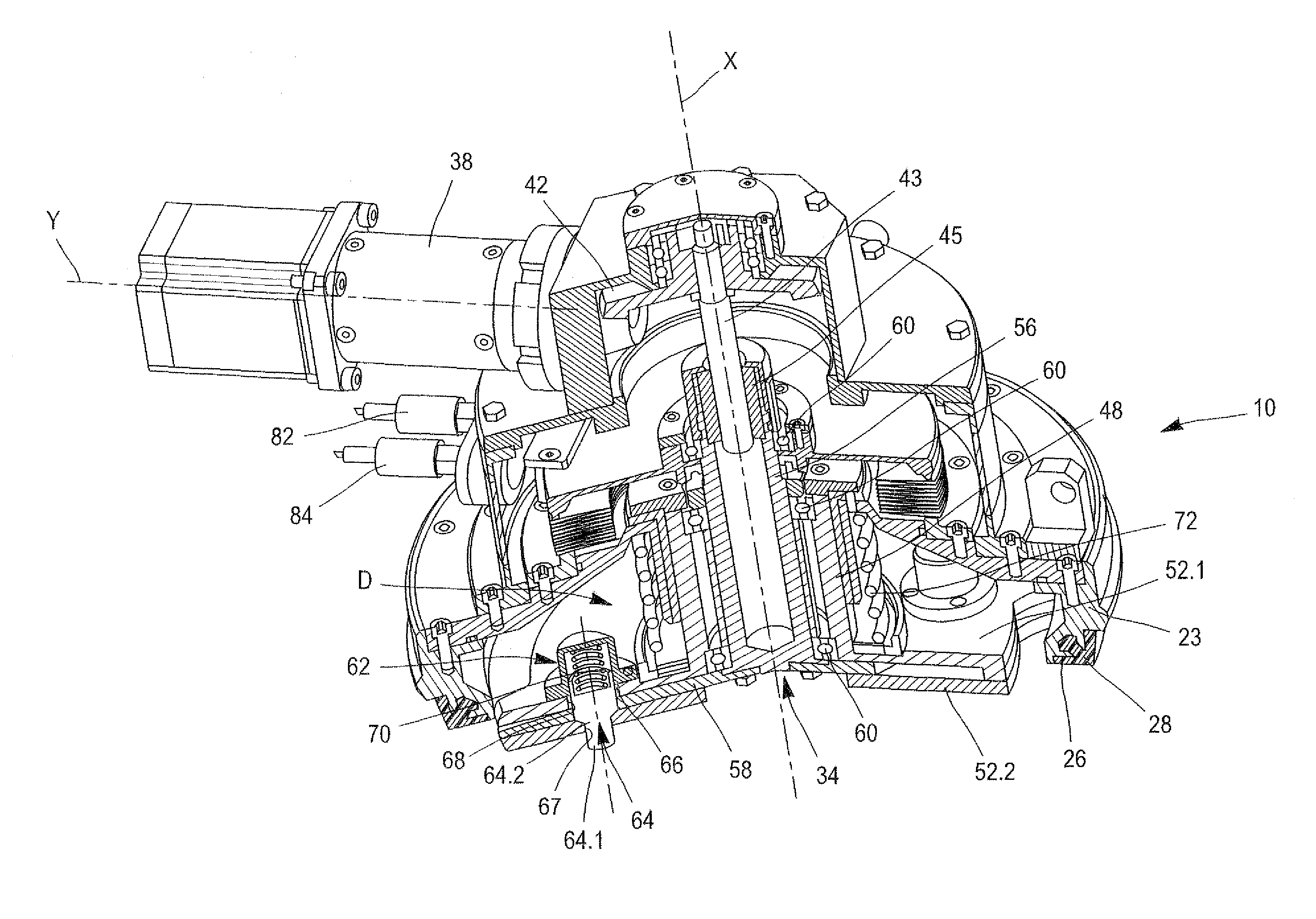

Mechanism for controlling a device for sealingly connecting an enclosure and a container, with the enclosure comprising a door (10) and the container comprising a door (14), with the door (10) of the enclosure containing the control mechanism (D), with that comprising a male element (34) cooperating with a recess of the door (14) of the container, with this male element (34) being rotatably movable about and translatably movable along a longitudinal axis (X) and is capable of being accommodated in the recess of the door (14), of locking the two doors (10, 14) together and of unlocking the door (14) of the container.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- F16L Class
- 1403 Applications Filed
- 1109 Patents Issued To-Date
- 79.05 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16L Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 10, 2028 |
