Concealed ladder
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 10, 2017
Issued Date -
N/A
app pub date -
Feb 17, 2015
filing date -
Feb 20, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

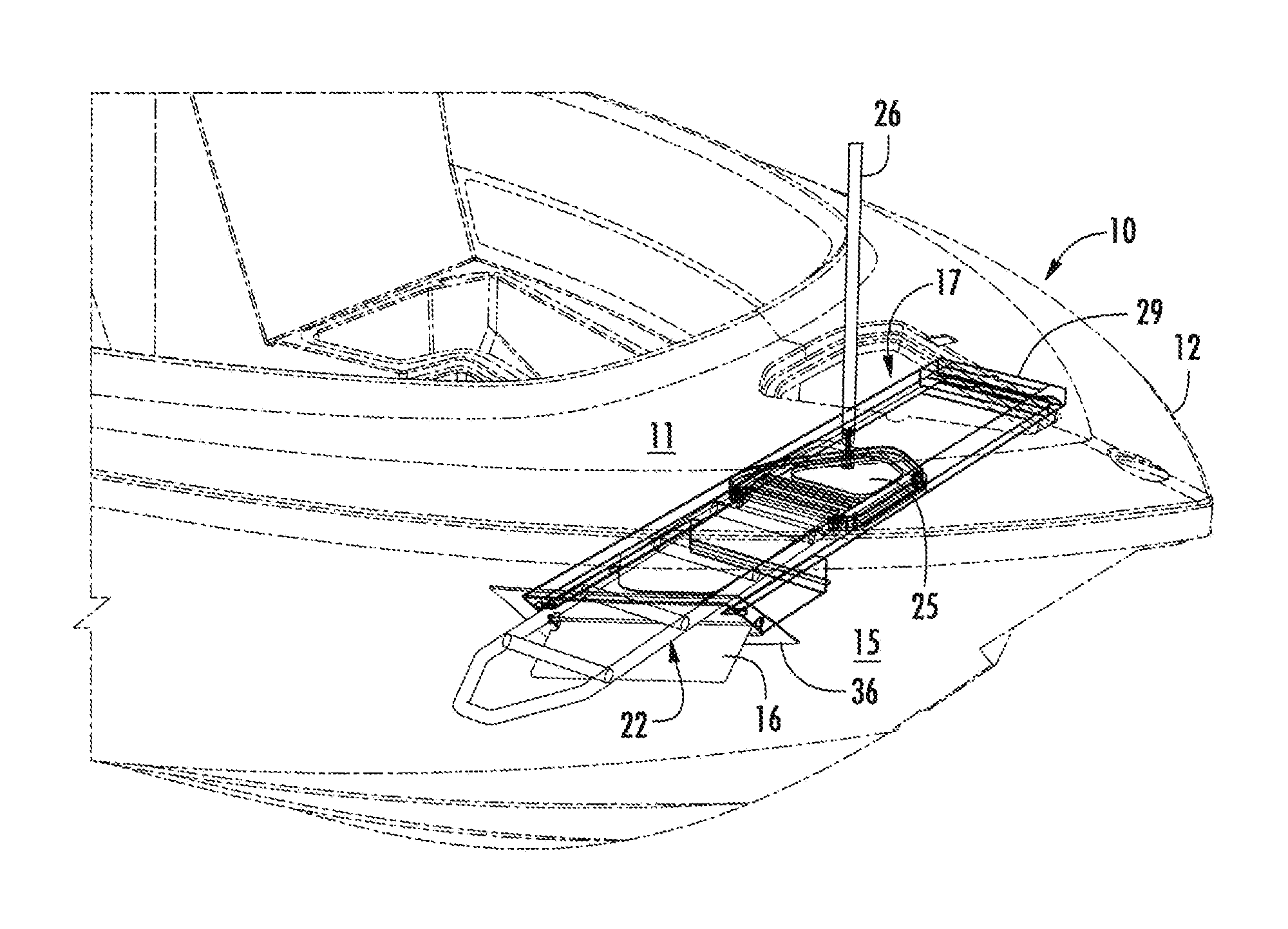

A ladder assembly for mounting a concealed ladder to a boat includes a frame having a pair of spaced-apart guides. The frame is adapted to be mounted within a boat. A slide is movably mounted to the guides for sliding from one end of said frame to an opposite end, and a ladder is pivotally mounted to said slide, such that the ladder can extend from a hatch in the boat and be lowered for use of the ladder in entering and exiting the water from the boat. In one embodiment, a pivot plate is pivotally mounted to the slide and the ladder is pivotally mounted to the slide. A control arm is pivotally mounted to the pivot plate or slide and provides leverage for the easy deployment and storing of the ladder.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- E06C Class
- 111 Applications Filed
- 89 Patents Issued To-Date
- 80.19 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- E06C Class
- 25.81 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 10, 2028 |
