Bicycle actuation structure and bicycle seatpost assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 10, 2017
Grant Date -
N/A
app pub date -
Oct 9, 2015
filing date -
Oct 9, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

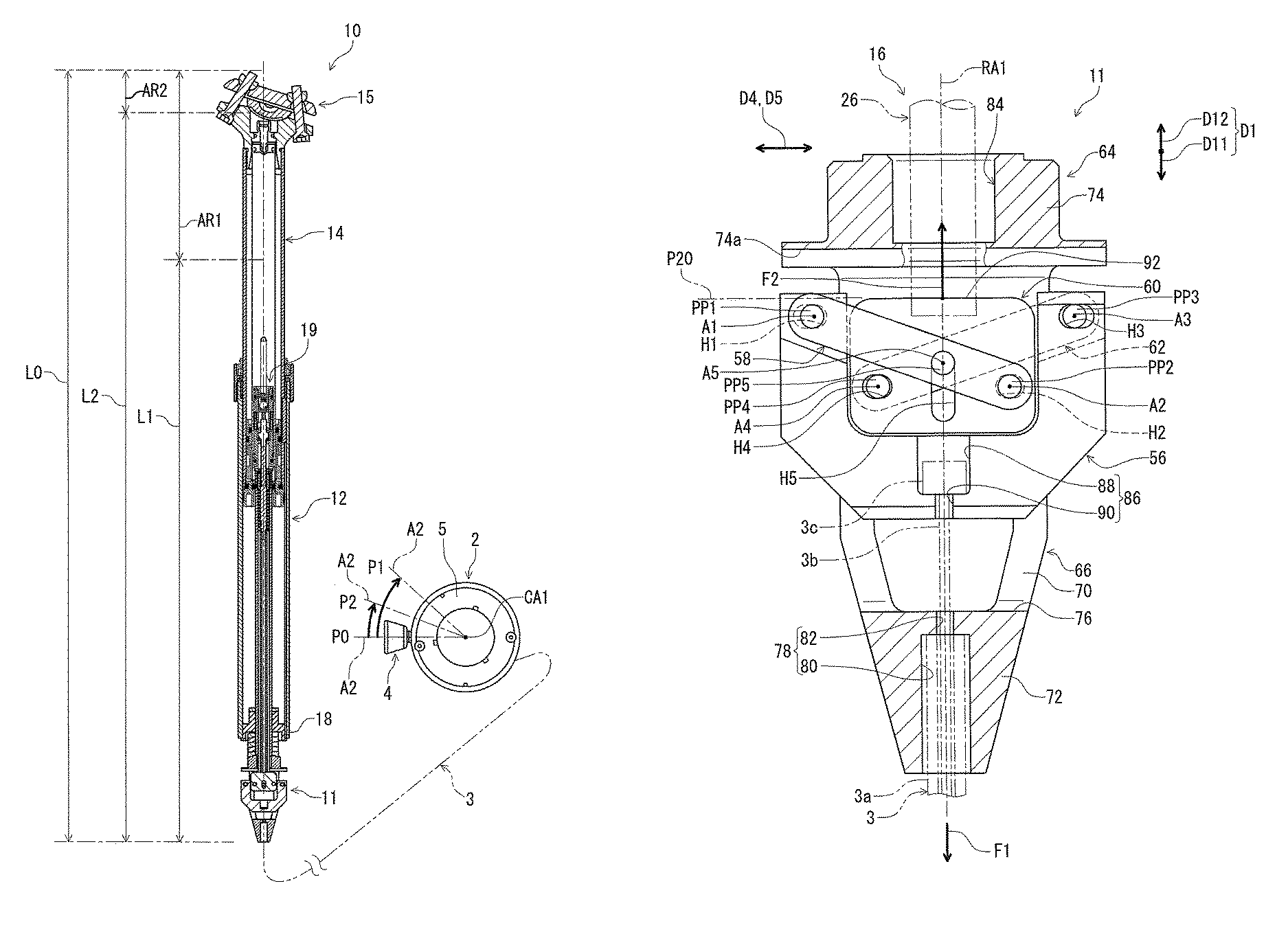

A bicycle actuation structure comprises an input member, a coupling member, and an output member. The input member is configured to receive a pulling force to move in a first direction. The coupling member is pivotally coupled to the input member about a first pivot axis. The output member is pivotally coupled to the coupling member about a second pivot axis to move in a second direction opposite to the first direction in response to a movement of the input member in the first direction, the second pivot axis being different from the first pivot axis.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2015 Application Filing Year
- B62J Class
- 314 Applications Filed
- 264 Patents Issued To-Date
- 84.08 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- B62J Class
- 24.55 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 10, 2028 |
