Abstract

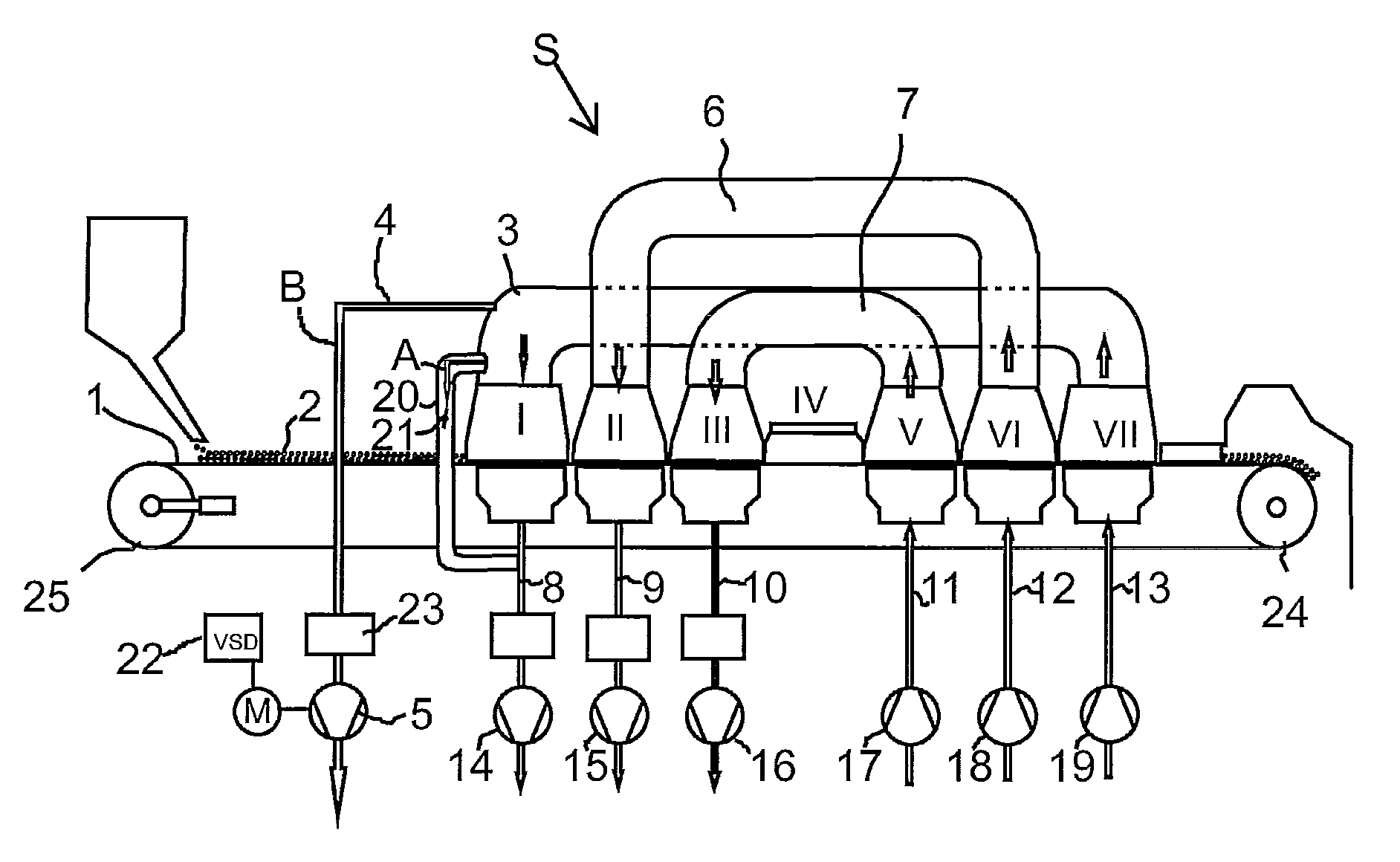

The invention relates to a method and equipment for the continuous sintering of mineral material in a sintering furnace (S). In the method, a material bed (2) is formed on a conveyor base (1), the material bed (2) is conveyed by the conveyor base (1) through the process zones (I-VII) of the sintering furnace that have different temperatures, the zones including at least one drying zone (I), at least one cooling zone (VII), and at least one other process zone (II, III, IV, V, VI) between the said drying zone and cooling zone, and gas is conducted through the conveyor base and the material bed (2), when the material bed travels through the process zones (I-VII), and gas is circulated in a circulation gas duct (3) from the last cooling zone (VII) to the drying zone (I). Part of the gas flow that is conducted to the drying zone (I) in the circulation gas duct (3) is removed as an exhaust gas flow (B) by the exhaust gas blower (5) of an exhaust gas duct (4). The volume flow of the exhaust gas flow (B) is regulated by regulating the blowing power of the blower (5) to control the temperature of the gas flow travelling through the material bed in the drying zone.
