Reciprocating-type electric shaver
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 3, 2017
Issued Date -
N/A
app pub date -
Dec 1, 2014
filing date -
Dec 16, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

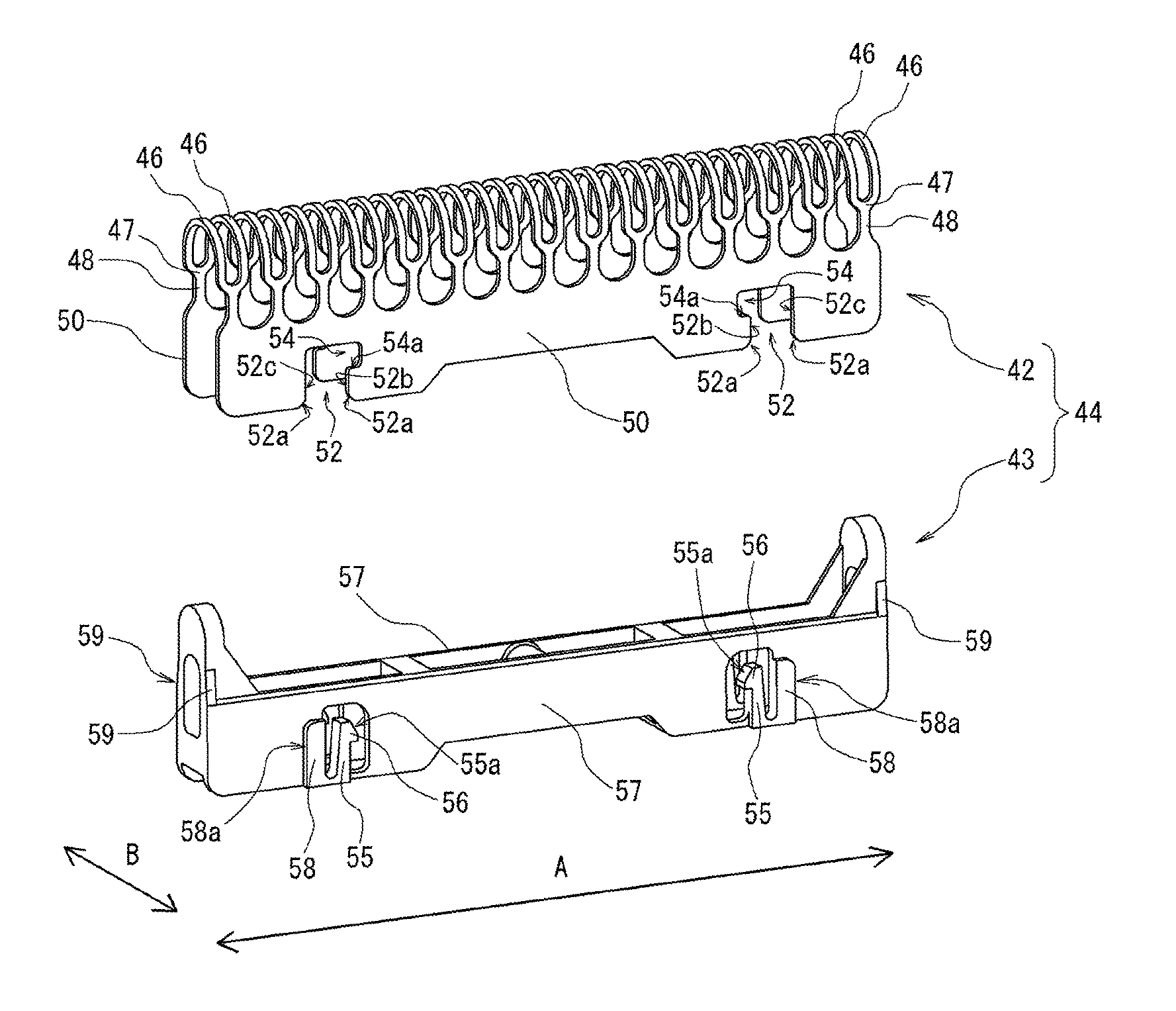

In a reciprocating-type electric shaver, an inner blade has an attachment groove which is open downward in a lower end of a side edge. An inner peripheral portion of the attachment groove has an engagement groove which is recessed in an in-plane direction on a wall surface of the side edge and in a longitudinal direction of the inner blade. An inner blade base has a projection at a position corresponding to the attachment groove. The projection can be elastically deformed in the in-plane direction on the wall surface of the side edge and in the longitudinal direction of the inner blade, and is formed so that an engagement claw disposed in a distal end of the projection can enter and engage with the engagement groove. The engagement claw engages with the engagement groove, thereby causing the inner blade to be fixed to the inner blade base.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B26B Class
- 250 Applications Filed
- 219 Patents Issued To-Date
- 87.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B26B Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 3, 2028 |
