Foldable stand
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 3, 2017
Grant Date -
Jun 16, 2016
app pub date -
Dec 15, 2015
filing date -
Dec 16, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

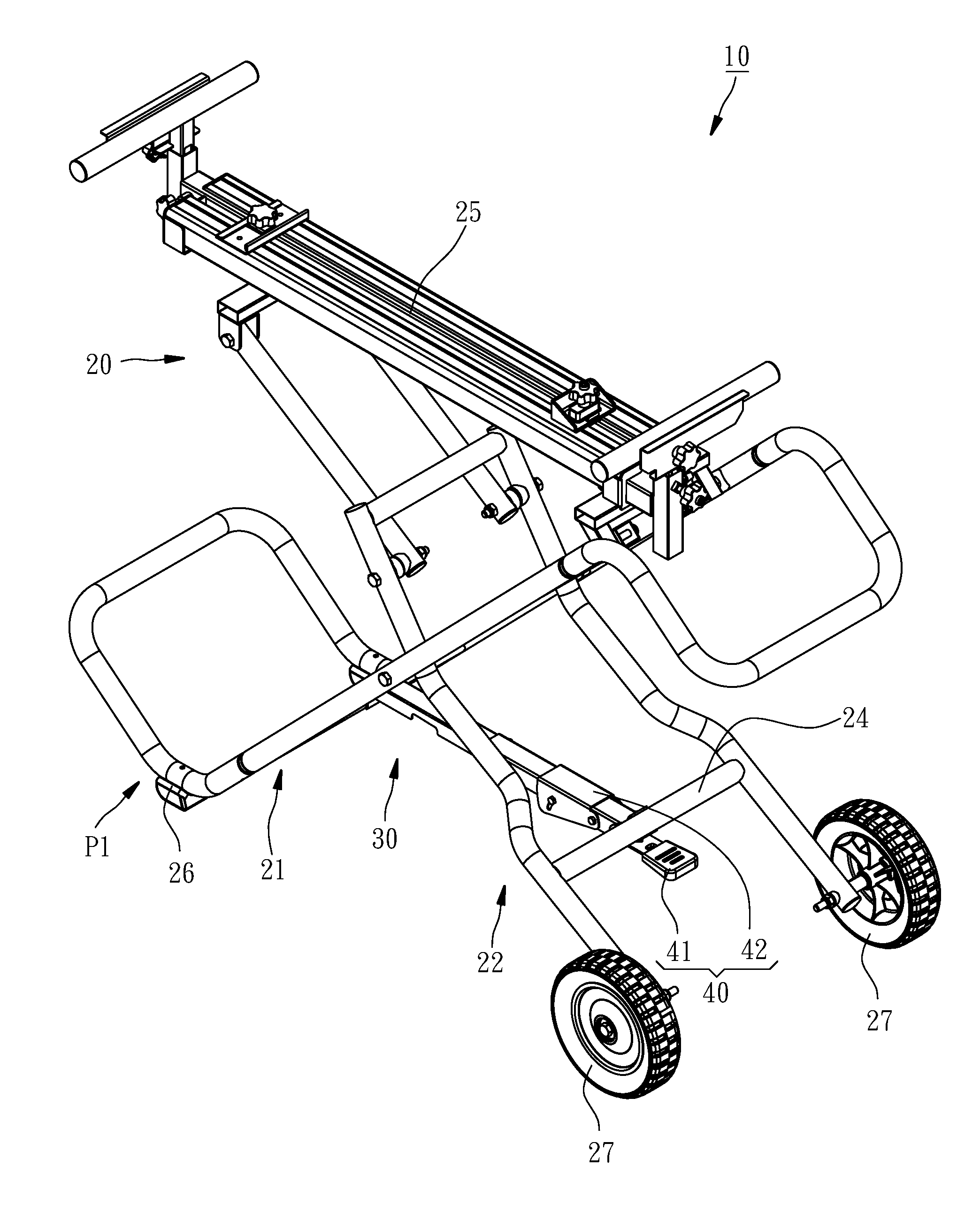

A foldable stand includes two stand legs pivotally connected together. A positioning unit is set between the two stand legs and includes a first link pivotally connected to a second link, a locating plate mounted in the first link and a locking pin mounted in the second link. The foldable stand also includes a control unit having a first pedal mounted at the second link and pressable to move the first and second links toward each other into a folded position. In the folded position, the locking pin is forced into engagement with the locating plate. A second pedal is pivotally connected to the second link and pressable to pull the locking pin out of the locating plate for enabling the two stand legs to be biased from the folded position to an extended position.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- F16M Class
- 19.07 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 3, 2028 |
