Media stiffness sensor assembly for an imaging device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 27, 2016
Grant Date -
Oct 15, 2015
app pub date -
Dec 31, 2013
filing date -
Dec 31, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

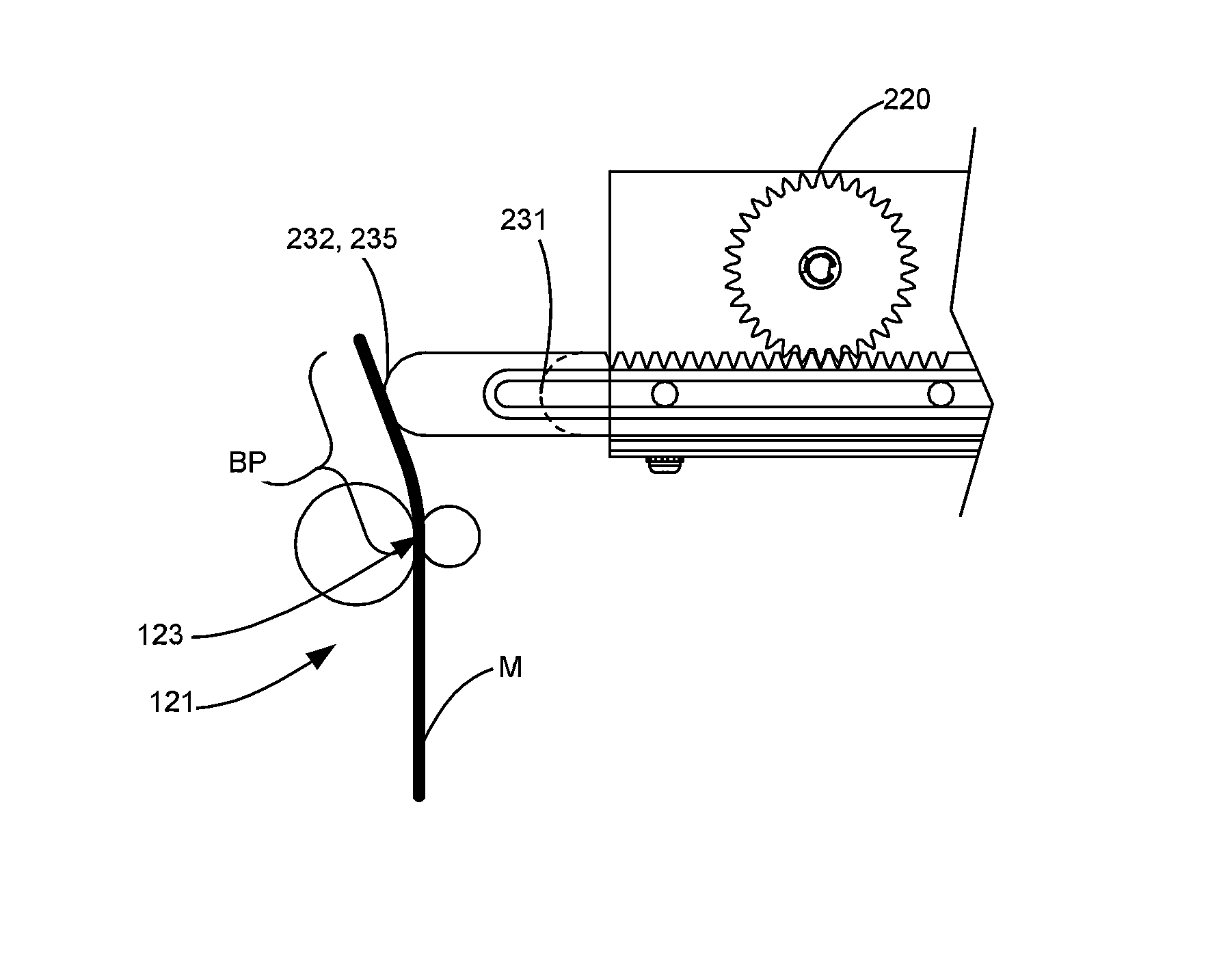

A media stiffness sensor assembly for an imaging device. The assembly comprises a translation mechanism coupled to a contact member, a drive mechanism coupled to the translation mechanism and a position sensor for providing a signal indicative of the position of the contact member. The assembly is mounted within an imaging device so that the contact member is moved into bending contact with a cantilevered portion of a media sheet in the media path. The energy used to translate the contact member from a home position into the cantilevered portion of a media sheet in the media path to deflect the cantilevered portion is used to determine a weight of the media sheet.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- H04N Class
- 13279 Applications Filed
- 11945 Patents Issued To-Date
- 89.96 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H04N Class
- 14.12 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 27, 2028 |
