Semiconductor device

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9531377
APP PUB NO 20150381170A1
SERIAL NO

14766966

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

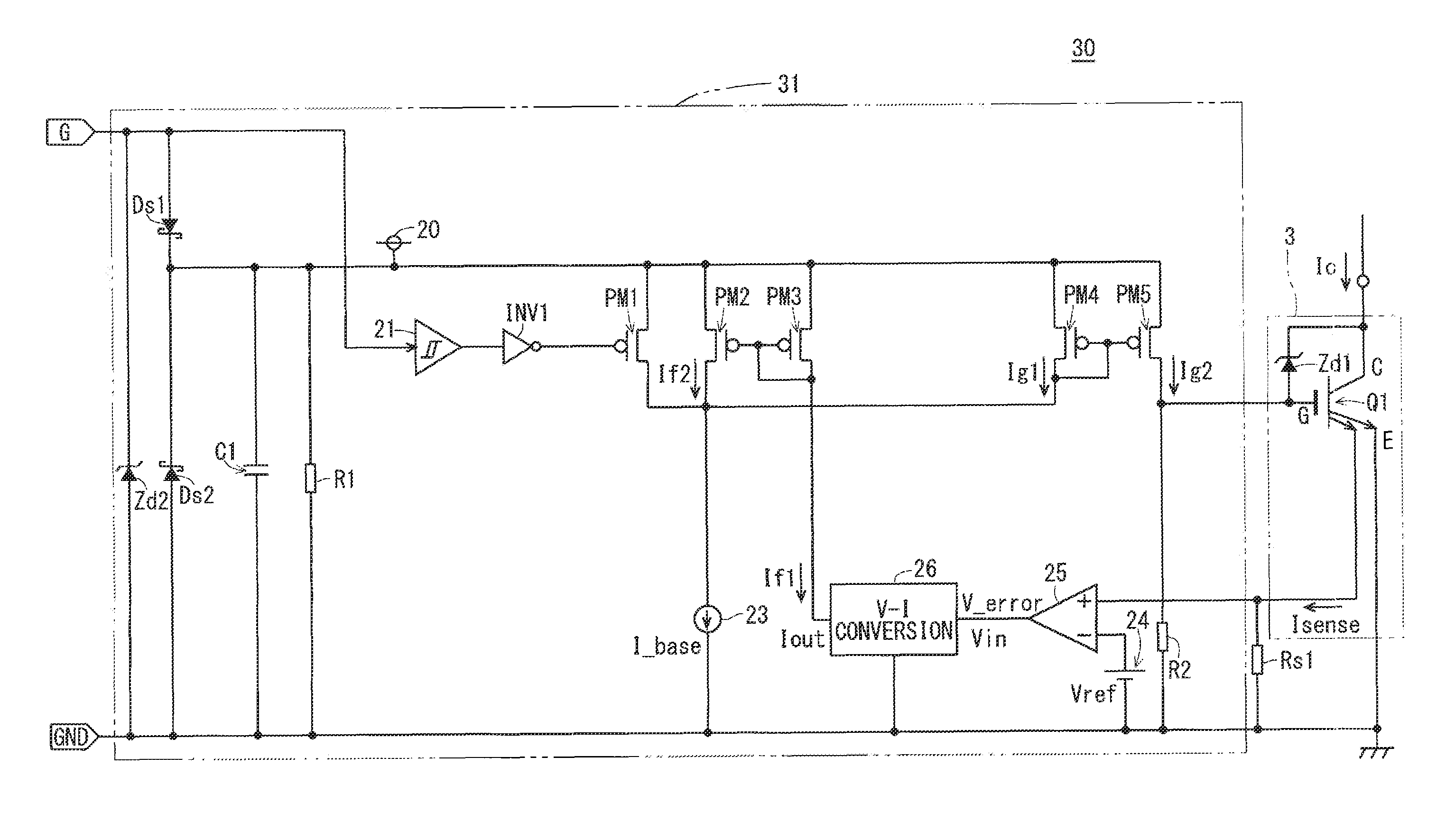

The present invention has an object to provide a semiconductor device that has protective functions and is capable of achieving miniaturization and cost reduction. A semiconductor device according to the present invention includes a switching element, a drive circuit, and a control circuit. When a high-level drive control signal is output from the drive circuit, the control circuit stops driving of the switching element and charges an electric charge storing capacitor. When a low-level drive control signal is output from the drive circuit, the control circuit drives the switching element using electric charges stored in the electric charge storing capacitor.
