Apparatus and method for out-of-step protection using the analysis of trajectories of electrical measurements in state plane
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 27, 2016
Grant Date -
Jan 30, 2014
app pub date -
Jul 24, 2013
filing date -
Jul 24, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

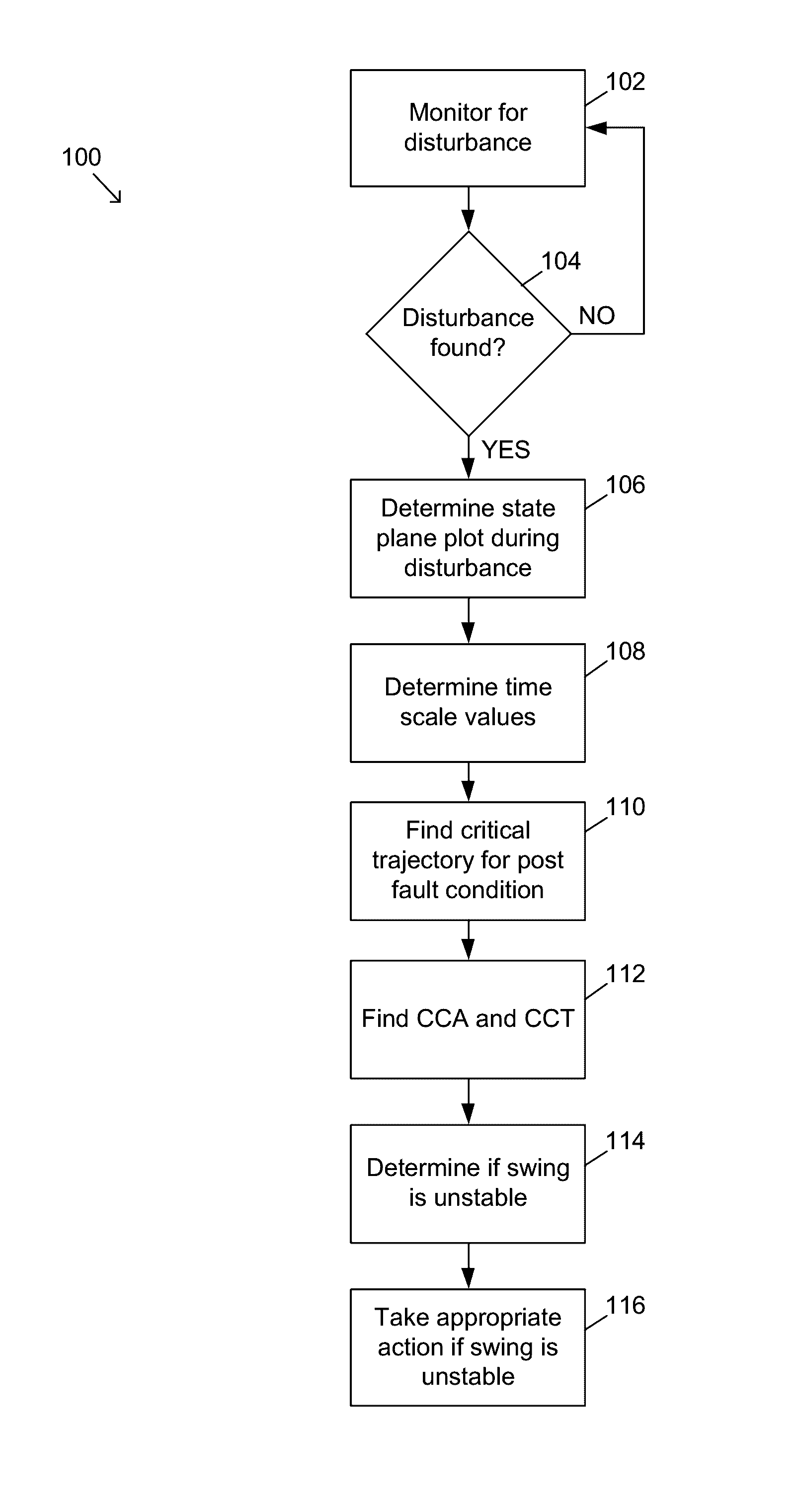

Various embodiments are described herein for a device and method for predicting an out-of-step or transient instability condition in a power system due to a disturbance, such as a fault, where the power system comprises a power generator. The method comprises determining values for a state plane trajectory for the power generator during the disturbance based on using an internal voltage angle of the power generator or an equivalent power generator and a during fault rotor speed of the power generator or equivalent power generator as state variables, determining time scale values; determining values for a critical state plane trajectory for the power generator after clearing the fault, determining values for a state plane trajectory for the power generator after clearing the fault, determining a critical clearing angle and a critical clearing time, and predicting that the power generator will be stable or unstable by comparing the time to clear the fault with the critical clearing time.
First Claim
Other Claims data not available
Family
International Classification(s)
- G05B:CONTROL OR REGULATING SYSTEMS IN GENERAL; FUNCTION....
- G06F:ELECTRIC DIGITAL DATA PROCESSING
- G01R:MEASURING ELECTRIC VARIABLES; MEASURING MAGNETIC V....
- G01D:MEASURING NOT SPECIALLY ADAPTED FOR A SPECIFIC VAR....
- H01H:ELECTRIC SWITCHES; RELAYS; SELECTORS; EMERGENCY PR....
- H02H:EMERGENCY PROTECTIVE CIRCUIT ARRANGEMENTS
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- G05B Class
- 11.58 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 27, 2028 |
