Transducer assembly with digitally created signals
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 27, 2016
Grant Date -
Oct 29, 2015
app pub date -
May 1, 2015
filing date -
May 24, 2002
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

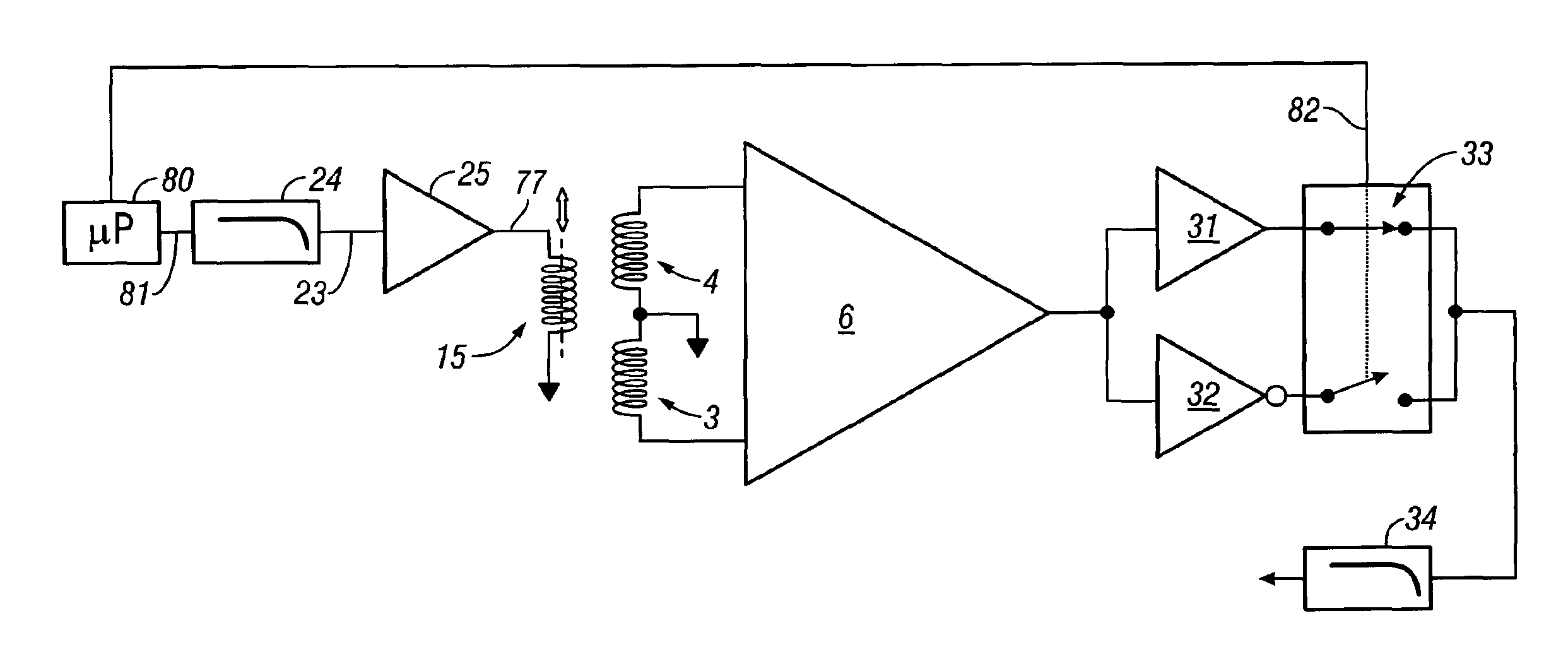

Techniques for coupling with devices that convert displacements into differential voltages and improve the sensitivity of such devices. A transducer operates based on changes of inductances between primary and secondary of a transformer to produce a differential signal that includes a noninverted signal and an inverted signal. A switch receives the noninverted signal and the inverted signal. A processor creates a square wave signal for driving the transducer input, and also digitally creates an inverted transducer output. A filter operates to filter the square wave output from the processor to produce a substantially single frequency signal at a specified timing having a specified phase relationship relative to the first phase inversion signal based on instructions that are executed by the processor.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01B Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 27, 2028 |
