Fluid drilling head with sliding gauging ring
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 27, 2016
Grant Date -
Jan 2, 2014
app pub date -
Feb 23, 2012
filing date -
Feb 25, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

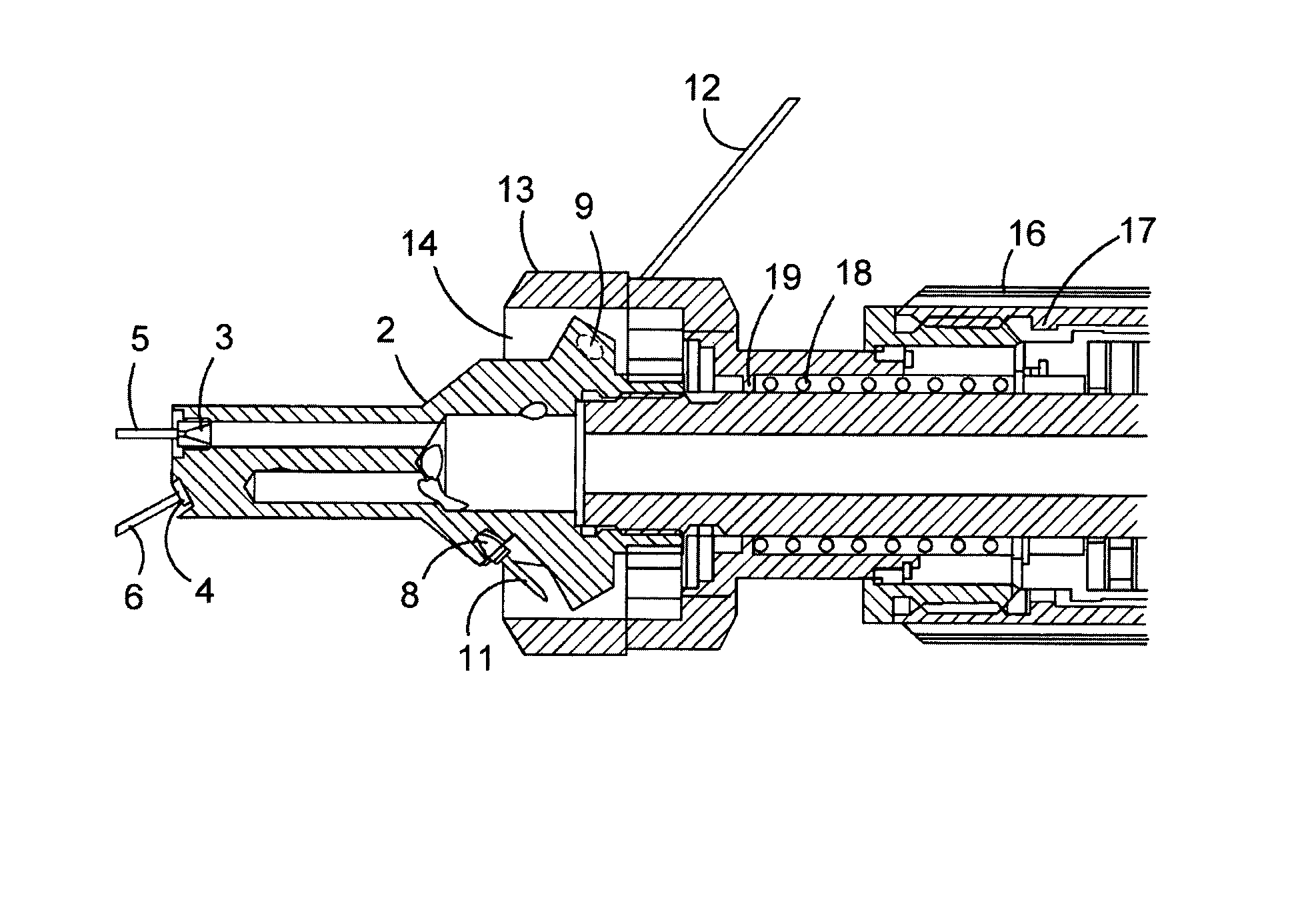

A fluid drilling head for drilling a bore hole through rock. The fluid drilling head has a rotatable nozzle assembly incorporating a plurality of nozzles arranged to form fluid jets when provided with a supply of drilling fluid under pressure. The fluid jets include pilot jets directed in the general direction of movement of the drilling head and reaming jets directed generally radially and arranged to enlarge the initial hole formed by the pilot jets. A gauging ring is located behind the cutting head and sized to the intended diameter of the bore hole. The gauging ring is arranged to slide axially relative to the rotating cutting head between a rearward position where the reaming jets are exposed, and a forward position where some or all of the reaming jets are shrouded by the gauging ring and inhibited from enlarging the diameter of the bore hole.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E21B Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 27, 2028 |
