Power drill
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 27, 2016
Grant Date -
Dec 25, 2014
app pub date -
May 27, 2014
filing date -
Jun 21, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

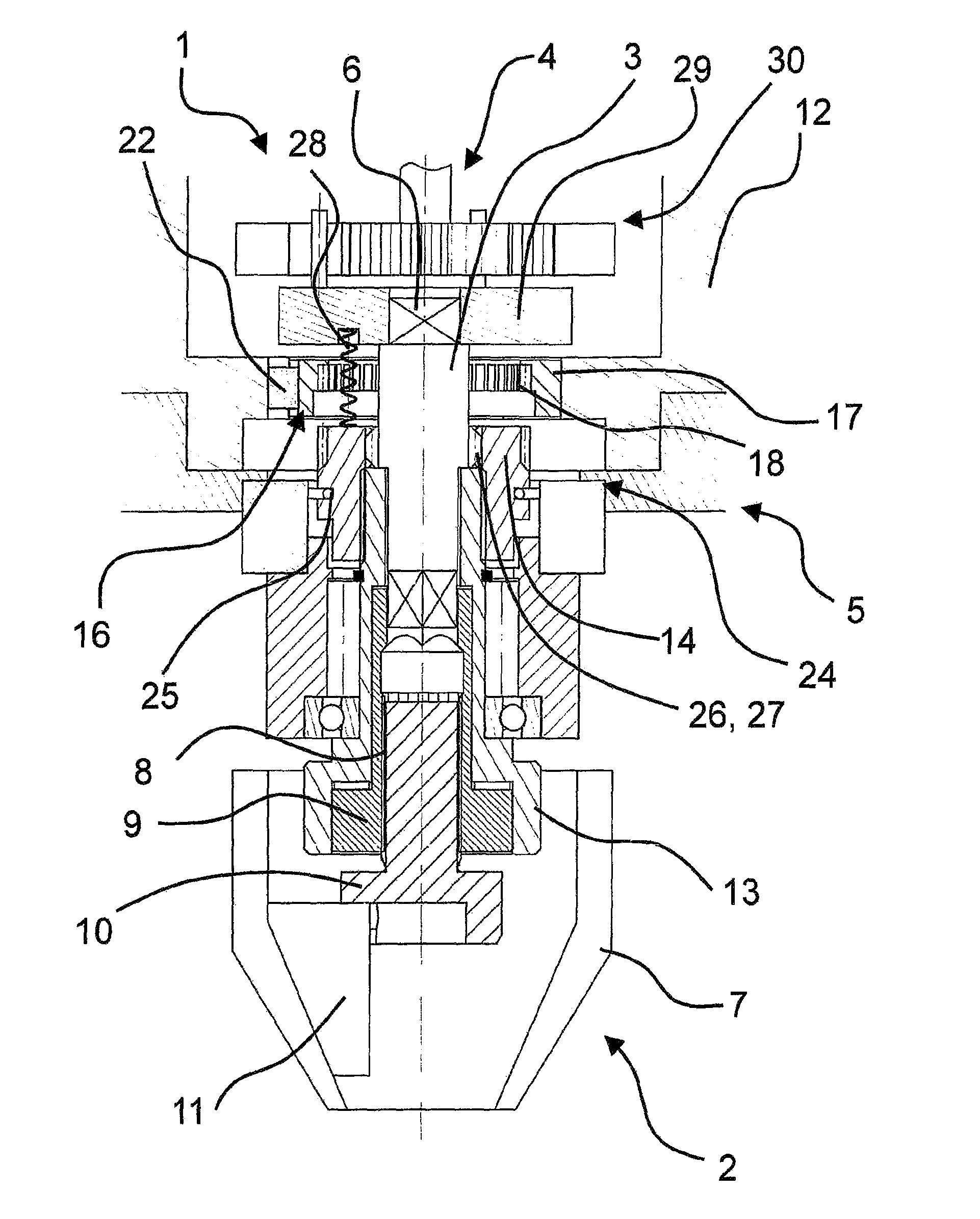

A power drill has a housing holding a motor and a drive member rotatable about an axis. An arbor extending along the axis outside the housing is rotationally coupled by complementary formations with the drive member. A tube shaft on which is fixed a chuck body holding a plurality of axially displaceable jaws. A sleeve in the tube shaft is rotationally coupled to the arbor. A pusher element braced axially forward against the jaws extends axially rearward into the sleeve, and interengaging screwthreads on the sleeve and pusher element axially displace the pusher element and the jaws on relative rotation of the sleeve and pusher element. A setting sleeve rotationally coupled to the rear end of the tube shaft is axially displaceable between a tightening position engaging a slip coupling on the housing and a drilling position disengaged from the slip coupling and rotationally coupled to the arbor.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B23B Class
- 472 Applications Filed
- 409 Patents Issued To-Date
- 86.66 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B23B Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 27, 2028 |
