separation, and method of same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 27, 2016
Grant Date -
Jan 8, 2015
app pub date -
Jul 8, 2014
filing date -
Jul 8, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

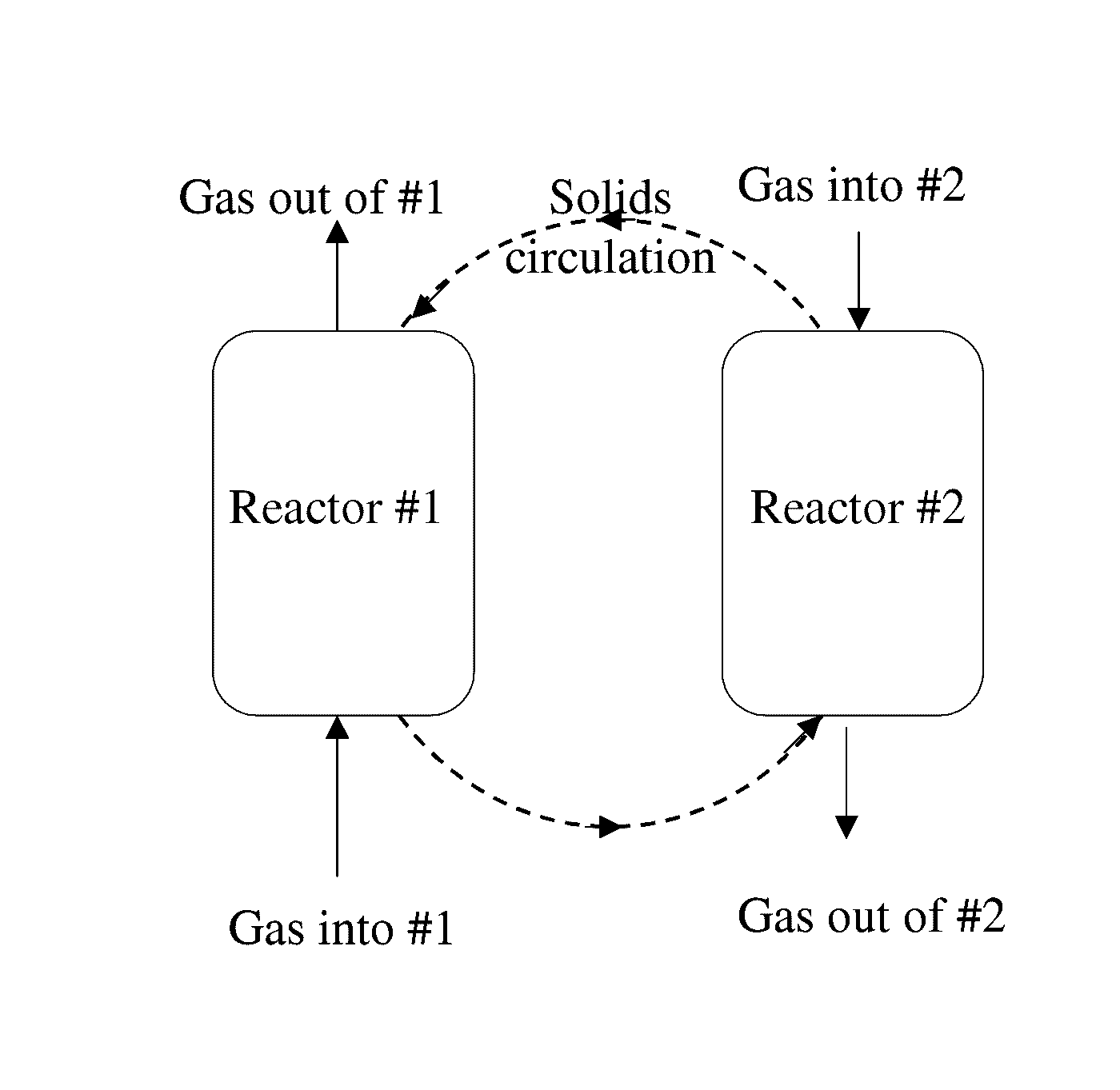

A circulating moving bed and process for separating a carbon dioxide from a gas stream is disclosed. The circulating moving bed can include an adsorption reactor and a desorption reactor, and a sorbent that moves through the two reactors. The sorbent can enter the adsorptive reactor and one end and move to an exit point distal to its entry point, while a CO2 feed stream can enter near the distal point and move countercurrently through the sorbent to exit at a position near the entry point of the sorbent. The sorbent can adsorb the CO2 by concentration swing adsorption and adsorptive displacement. The sorbent can then transfer to a regeneration reactor and can move countercurrently against a flow of steam through the regeneration reactor. The sorbent can be regenerated and the carbon dioxide recaptured by desorbing the carbon dioxide from the sorbent using concentration swing desorption and desorptive displacement with steam.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| WO | A1 | WO2015006266 | Jul 08, 2014 |
International Classification(s)
- 2014 Application Filing Year
- B01D Class
- 3939 Applications Filed
- 3248 Patents Issued To-Date
- 82.46 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- B01D Class
- 20.19 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 27, 2028 |
