Ice making apparatus and process of reducing scale buildup and flushing the apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 20, 2016
Grant Date -
Jan 7, 2016
app pub date -
Jul 2, 2014
filing date -
Jul 2, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

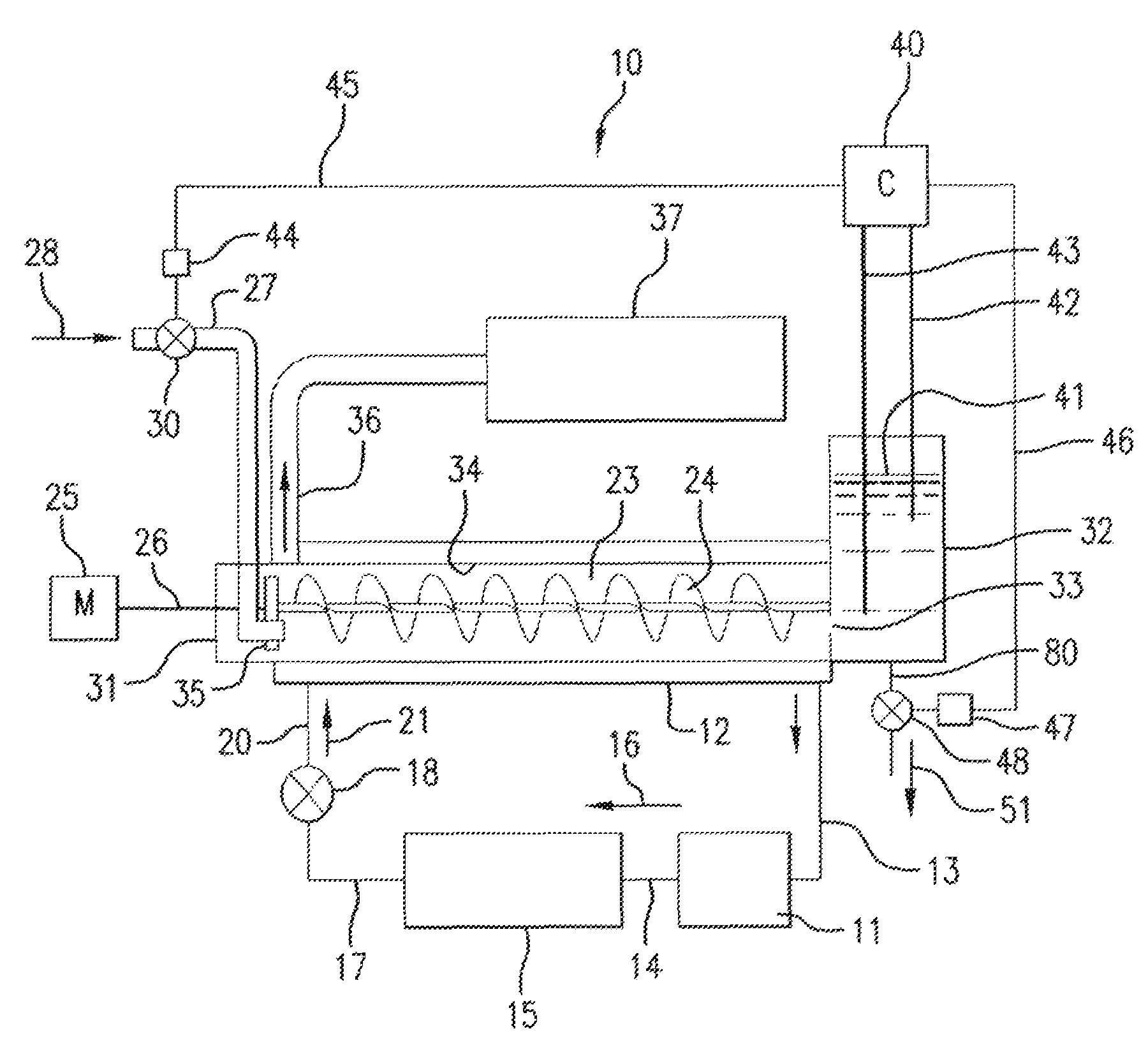

An ice making apparatus is provided for making ice of the nugget-forming type from ice shavings that are compacted, wherein inlet water is provided to a freezing chamber having a rotatable auger therein, for flow of the inlet water and water squeezed from ice leaving the freezing chamber at the discharge end thereof along the auger, for flow of water through the freezing chamber, to a water reservoir at an opposite end of the freezing chamber, whereby ice flow through the freezing chamber is in one direction, and water flow through the freezing chamber is in an opposite direction. Dissolved minerals are thereby substantially removed from the ice being discharged from the freezing chamber, and are conveyed from a zone of lesser water volume to a zone of higher water volume where they are more substantially dispersed. Water is flushed from the freezing chamber, by dispensing water containing dissolved minerals from a reservoir of greater volume than the volume of water at the water inlet end of the freezing chamber.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F25C Class
- 99 Applications Filed
- 78 Patents Issued To-Date
- 78.79 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F25C Class
- 23.53 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 20, 2028 |
