Method and device for producing metal profiles having a closely toleranced chamber dimension
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 20, 2016
Grant Date -
May 14, 2015
app pub date -
May 13, 2011
filing date -
May 13, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

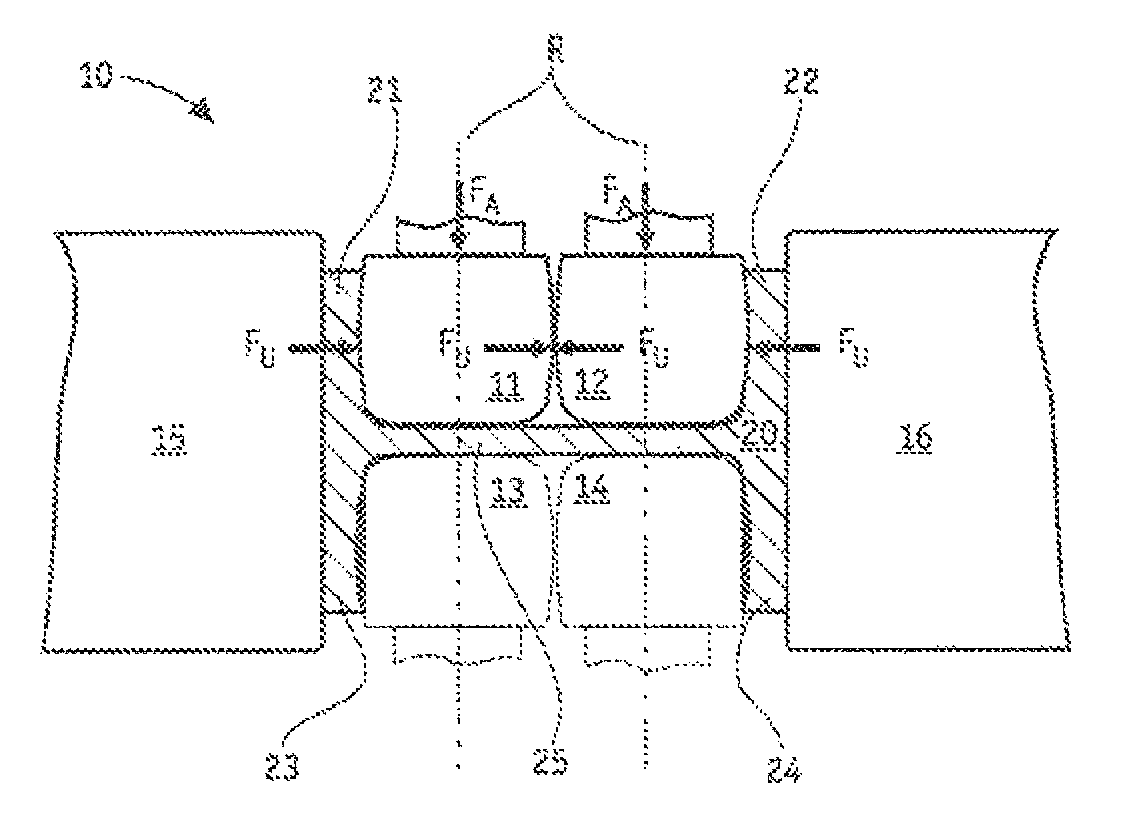

The invention relates to a method and device for producing metal sections having two profile flanges arranged opposite one another and having flange inner faces that are to be kept apart from each other by a closely toleranced final chamber dimension. In order to adapt the chamber dimension from a starting chamber dimension K0 to a desired final chamber dimension K1, the metal section is passed through the device, which forms working gaps between an inner working roll pair and outer support rolls. The working rolls that form the inner working roll pair roll over each other in order to brace the forming forces exerted on the working roll pair from the flange inner faces against each other.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- B21D Class
- 918 Applications Filed
- 560 Patents Issued To-Date
- 61.01 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B21D Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 20, 2028 |
