Reflective structure with transparent and semi-transparent transmission regions
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 13, 2016
Grant Date -
Jul 30, 2015
app pub date -
Sep 27, 2012
filing date -
Sep 27, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

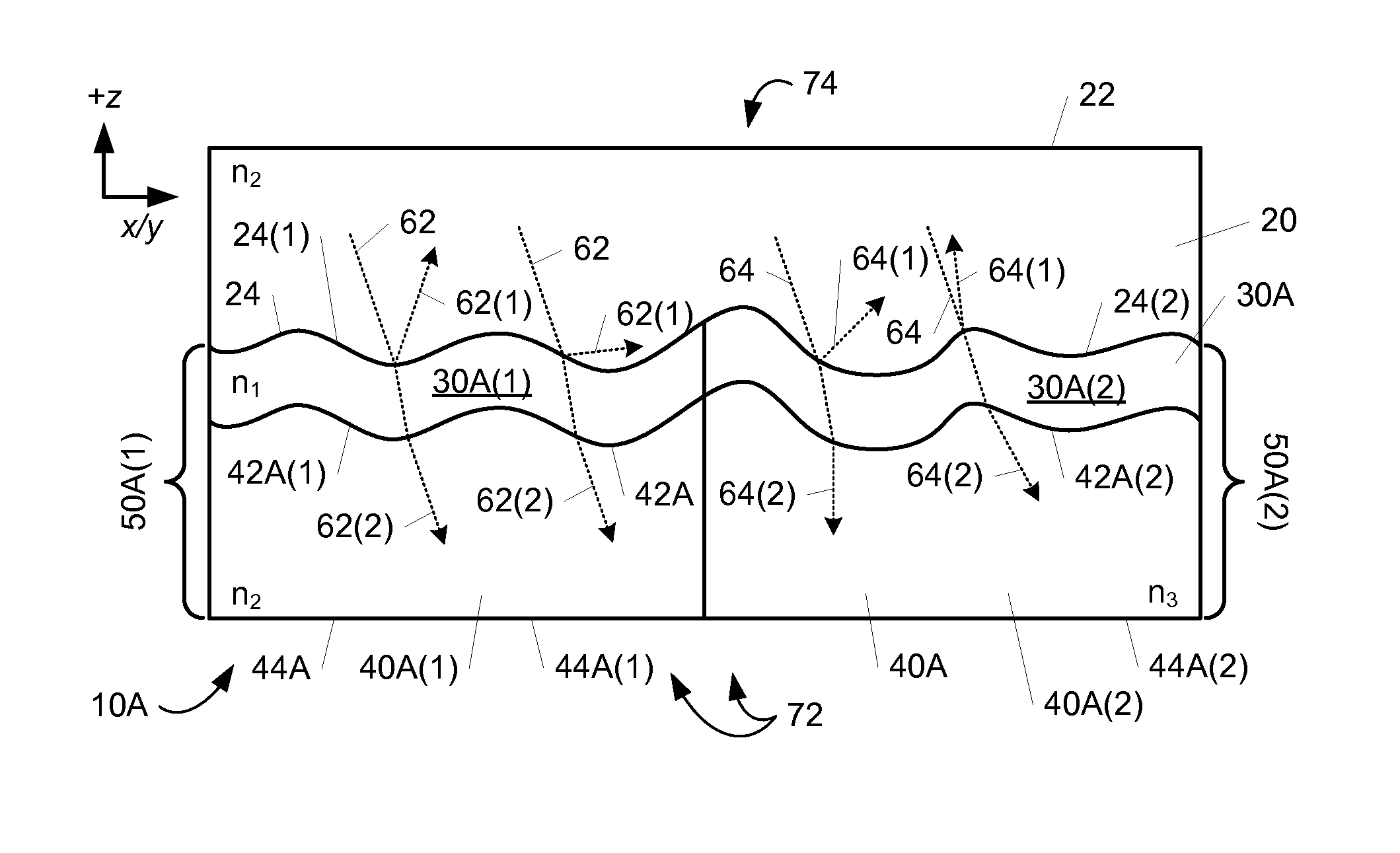

A reflective structure with transparent and semi-transparent transmission regions and includes a first transparent layer with a textured area, a reflective layer disposed below the first transparent layer and having a portion that is substantially conformal with at least a first portion of the textured area, and a second transparent layer disposed below the reflective layer and having a portion with a refractive index that is substantially equal to a refractive index of the first transparent layer. The transparent transmission region is configured to transmit a portion of light without substantial deviation, and the semi-transparent transmission region is configured to transmit another portion of the light from the first transparent layer with substantial deviation.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 13, 2028 |
