Method and apparatus for analyzing acetone in breath
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 13, 2016
Issued Date -
N/A
app pub date -
May 15, 2013
filing date -
May 15, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

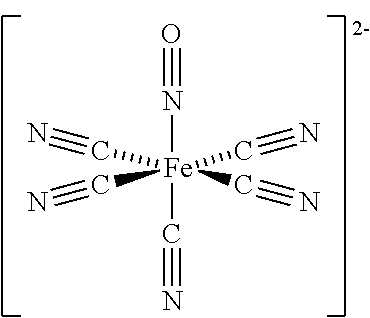

Methods and devices are provided for analyzing acetone in breath. One such method comprises disposing a reactant in a reaction zone within the breath analysis device, wherein the reactant comprises a primary amine disposed on a surface, and wherein the reaction zone has an optical characteristic that is at a reference level. It also comprises pre-storing a liquid nitroprusside solution within the breath analysis device separately from the reactant. The method further comprises using the breath analysis device to cause the breath to contact the reactant in the reaction zone so that the acetone in the breath reacts with the reactant to form a reaction product and, after the reaction product has been formed, using the breath analysis device to cause the nitroprusside solution to contact and react with the reaction product and to facilitate a change in the optical characteristic of the reaction zone relative to the reference level.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- G01N Class
- 9056 Applications Filed
- 7640 Patents Issued To-Date
- 84.37 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- G01N Class
- 31.44 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 13, 2028 |
