Assembly including a reverse thrust device and system for actuating said device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 13, 2016
Grant Date -
Oct 10, 2013
app pub date -
Nov 30, 2012
filing date -
Jun 1, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

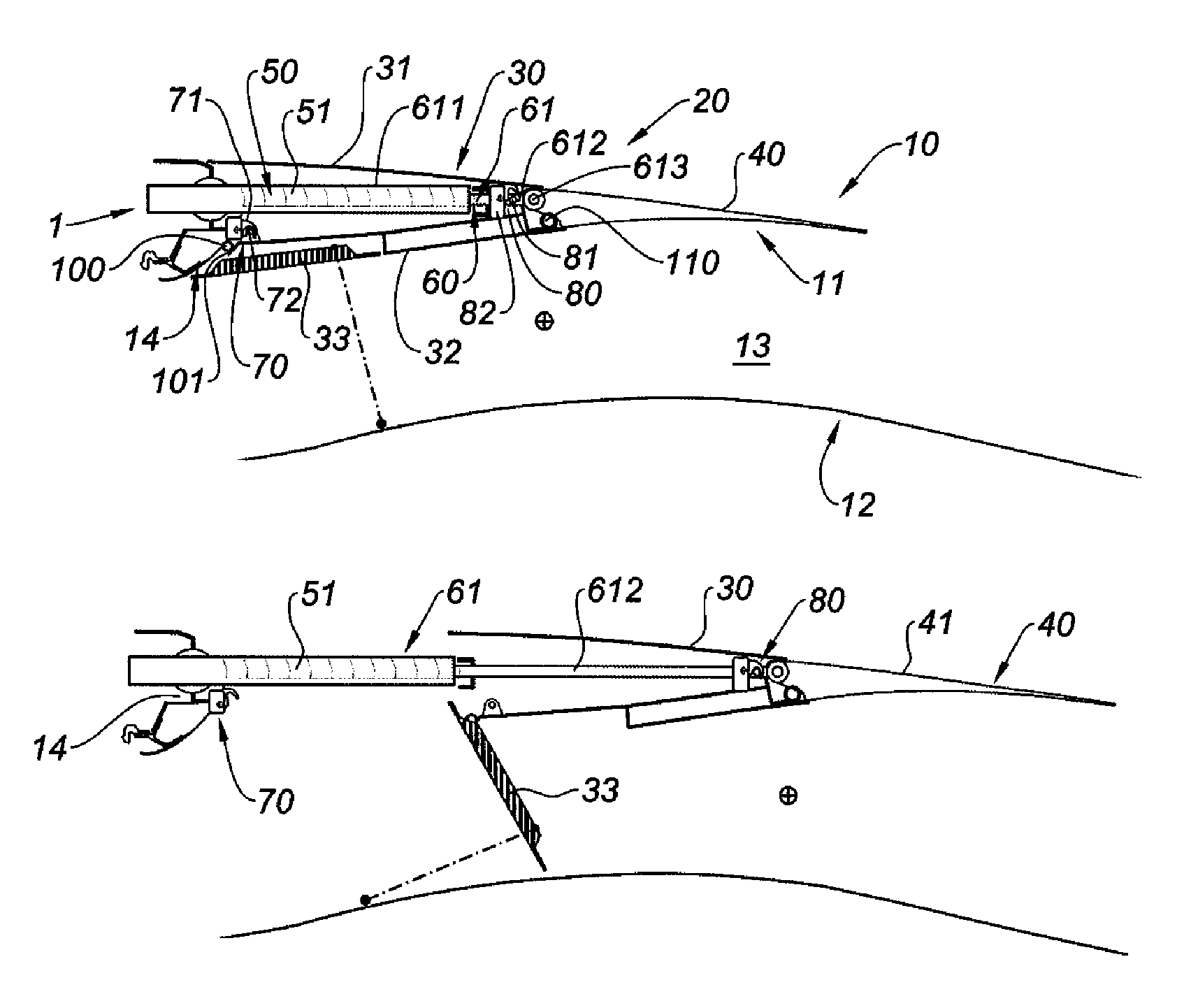

A reverse thrust device and a system for actuating the reverse thrust device is provided by the present disclosure. The device includes at least one cowl that is translatably mounted in a direction substantially parallel to a longitudinal axis of a nacelle. The actuation system includes an actuation means that is capable of activating translational and rotational movement of the cowl and a panel of a nozzle. The actuation system also includes a downstream locking means for the nozzle and the cowl. The downstream locking means includes at least two reversible states, one of the states being a locked state in which the downstream locking means is suitable for locking the panel of the nozzle into a position for varying the section for outputting the nozzle with the cowl.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F02K Class
- 13.76 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 13, 2028 |
