Method of forming a composite structure comprising a flange
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 13, 2016
Grant Date -
Oct 10, 2013
app pub date -
Dec 6, 2011
filing date -
Dec 7, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

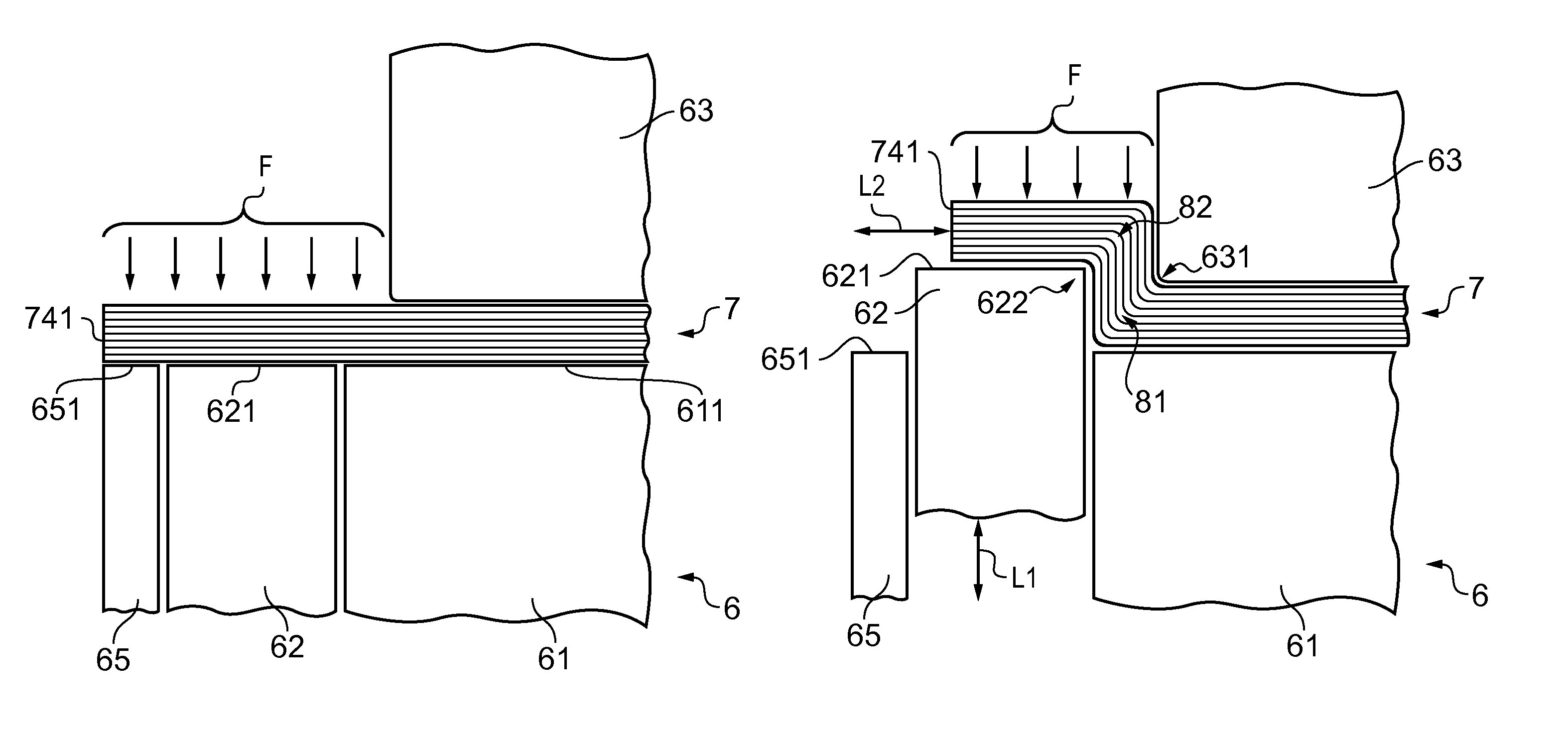

Method forming a composite structure (9) comprising a main body and a flange. The composite structure is manufactured by laying-up a preform (7) on a mold (6). The preform (7) does not have the first and second bends and comprises a first part which corresponds to the main body of the composite structure and a second part which corresponds to the flange of the composite structure. The second part of the (preform (7) has a proximal portion which corresponds to the wall portion of the flange and a distal portion which corresponds to the lip portion of the flange. The preform (7) comprises a plurality of plies and uni-directional ply material extends from the first part of the preform (7) to the distal portion of the second part of the preform (7). The flange is formed by advancing movable portion(s) (62) of the mold 6 to form the proximal portion of the second part of the preform (7) to create the first bend (81) and by forming the distal portion of the second part of the preform (7) around the advancing movable portion(s) (62) of the mold (6) to create the second bend (83). The presence of the two bends (81, 83) ensures that the ply material (78) is kept in tension during the forming operation.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B29C Class
- 27.47 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 13, 2028 |
