Cargo management system including a vehicle load floor having a cellulose-based core and made by a composite, compression molding process and having a wood grain finish
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 6, 2016
Grant Date -
May 14, 2015
app pub date -
Jan 23, 2015
filing date -
Apr 23, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

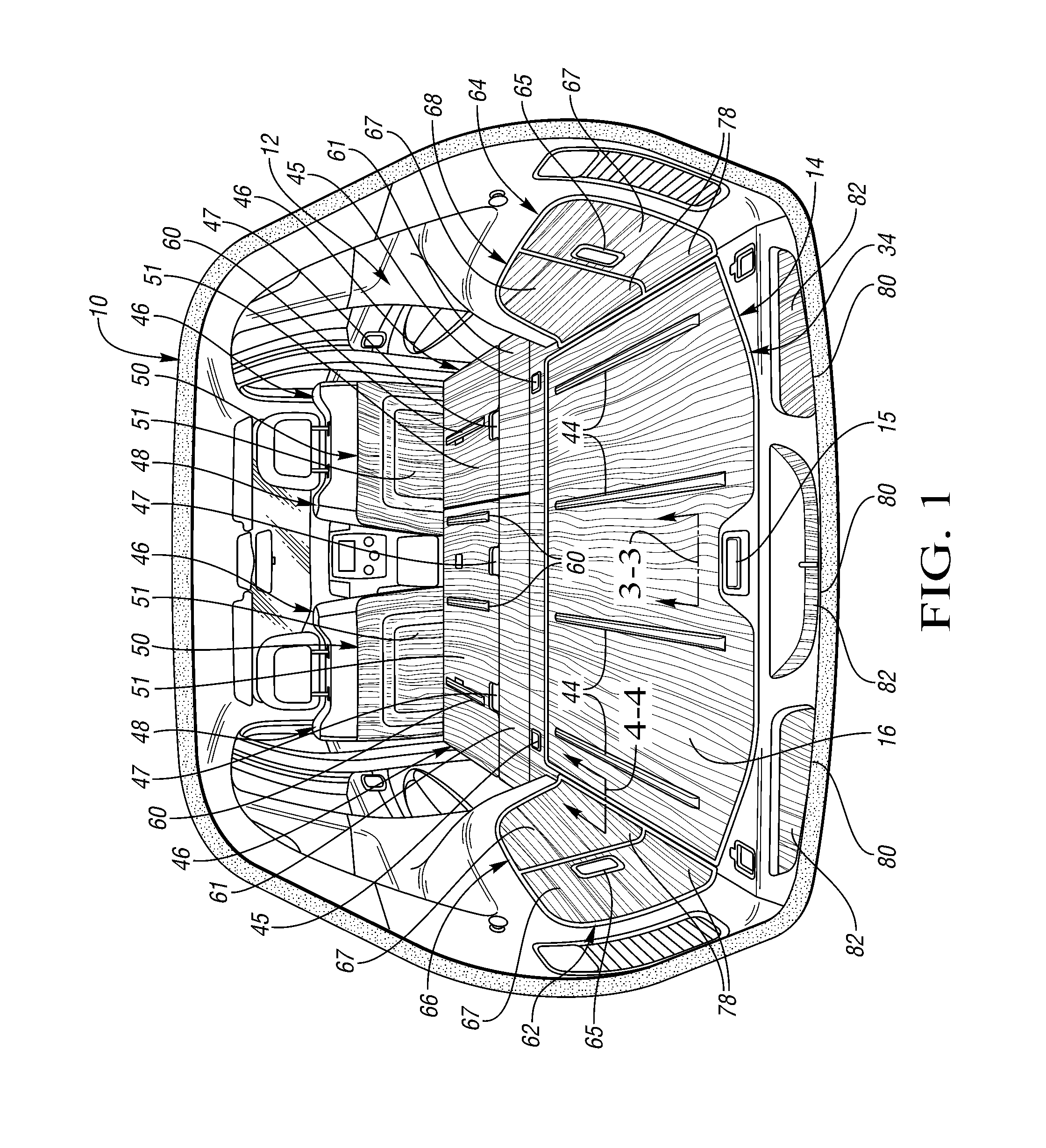

A cargo management system including a vehicle load floor having a cellulose-based core to compartmentalize a cargo area of the vehicle into an upper compartment and a covered lower compartment is provided. The floor has a wood grain finish. The load floor includes a compression-molded composite panel that includes first and second outer layers of fiber-reinforced thermoplastic material, first and second sheets of thermoplastic adhesive and a core of cellulose-based material and positioned between the outer layers. The core has a large number of cavities. The outer layers are bonded to the core by the first and second sheets and by press molding. The first outer layer having a top surface on which a multi-layer sheet is bonded by the press molding. The multi-layer sheet has a substantially planar upper support surface to support cargo in the upper compartment and to provide the load floor with the wood grain finish.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B62D Class
- 2461 Applications Filed
- 1986 Patents Issued To-Date
- 80.70 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B62D Class
- 12.01 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 6, 2028 |
