Method of machining metal plate and mesh member produced by the machining method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 6, 2016
Grant Date -
Aug 27, 2015
app pub date -
Aug 30, 2013
filing date -
Sep 12, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

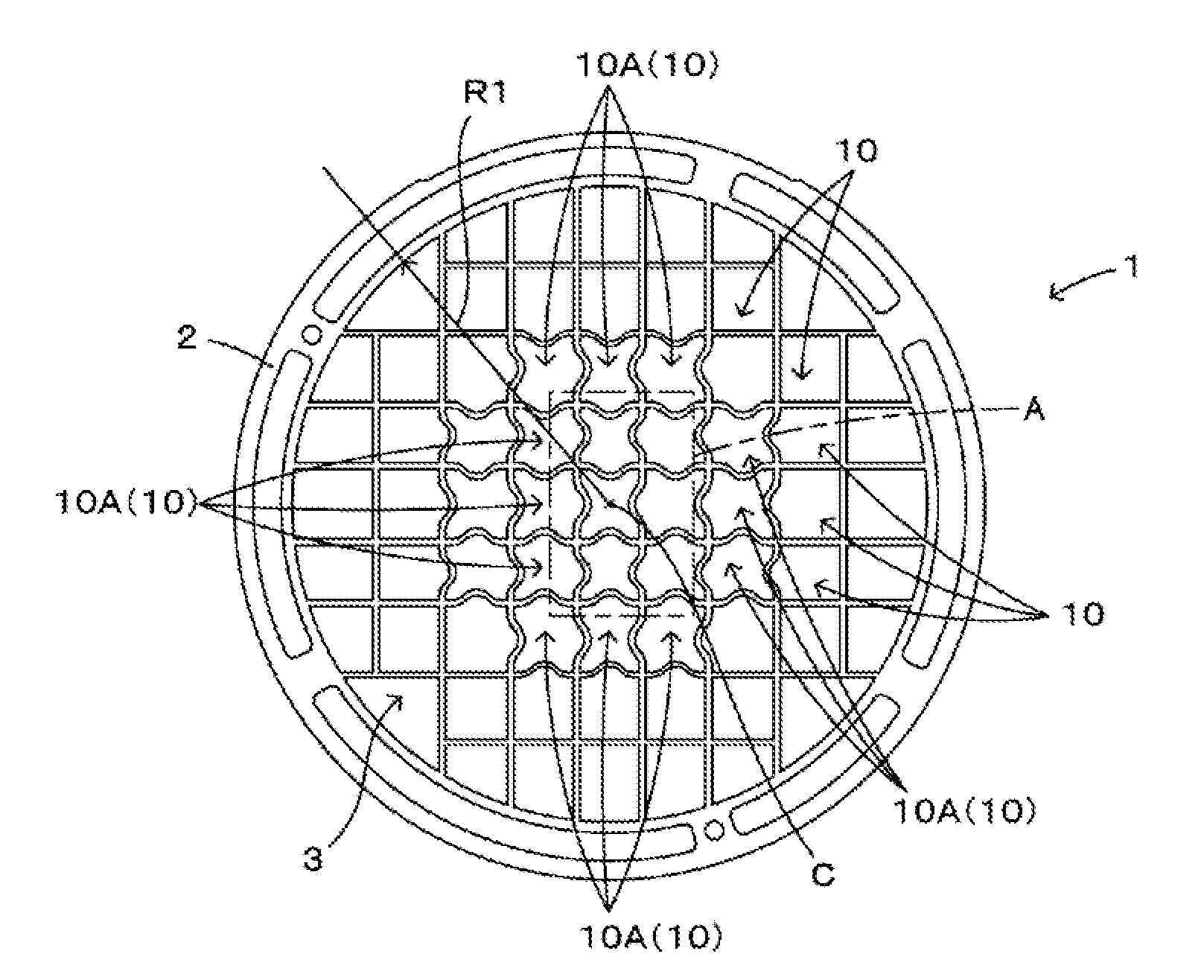

A method of machining a metal plate, the method processing a net body made of a metal plate into a dome shape, the net body having a plurality of lattice-shaped through holes. An extension allowance portion is formed in a plurality of side portions so as to curve along a surface area direction, the side portions are formed in a process area of the net body being pressed at a time of drawing-machining, and the extension allowance portion is formed when forming the net body having the side portions constituting the through holes by processing the metal plate. The net body is processed into the dome shape by drawing-machining from one side to an other side.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B21D Class
- 696 Applications Filed
- 611 Patents Issued To-Date
- 87.79 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B21D Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 6, 2028 |
