Reflector antenna including dual band splashplate support
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 29, 2016
Grant Date -
Oct 2, 2014
app pub date -
Oct 30, 2012
filing date -
Nov 2, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

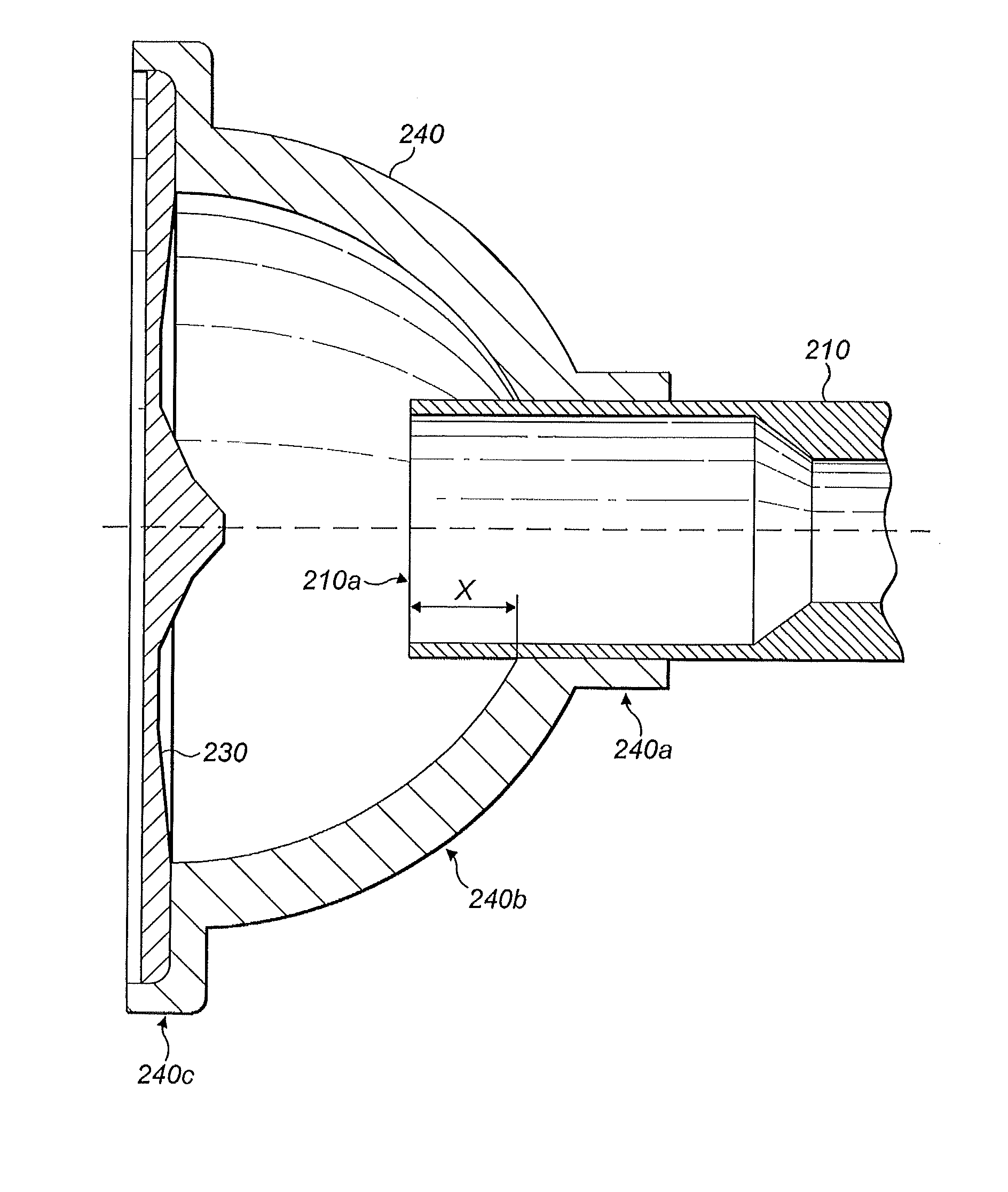

A reflector antenna includes a dual-band waveguide feed and a splashplate support arranged to define a space between the waveguide feed aperture and the splashplate. The dual-band waveguide feed is configured to receive an input signal in a first transmission mode, to convert a transmission mode of an upper frequency band from a first transmission mode to a mixed transmission mode including the first transmission mode and a second transmission mode. The supporting portion can be spaced apart from the aperture of the waveguide feed, and may have a thickness corresponding to half a wavelength of a beam emitted from the aperture.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| EP | A1 | EP2590264 | Nov 02, 2011 |
| WO | A1 | WO2013064514 | Oct 30, 2012 |
| EP | B1 | EP2774219 | Oct 30, 2012 |
| CA | C | CA2857607 | Oct 30, 2012 |
| AU | B2 | AU2012331250 | Oct 30, 2012 |
| RU | C2 | RU2616065 | Oct 30, 2012 |
| JP | B2 | JP6337378 | Oct 30, 2012 |
| CN | A | CN104025383 | Oct 30, 2012 |
| IN | A | IN2014CN03306 | May 01, 2014 |
| JP | B2 | JP6642862 | Mar 06, 2018 |
International Classification(s)
- 2012 Application Filing Year
- H01Q Class
- 1580 Applications Filed
- 1463 Patents Issued To-Date
- 92.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H01Q Class
- 9.22 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 29, 2028 |
