Explosive matrix assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 29, 2016
Issued Date -
N/A
app pub date -
Nov 9, 2015
filing date -
Mar 6, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

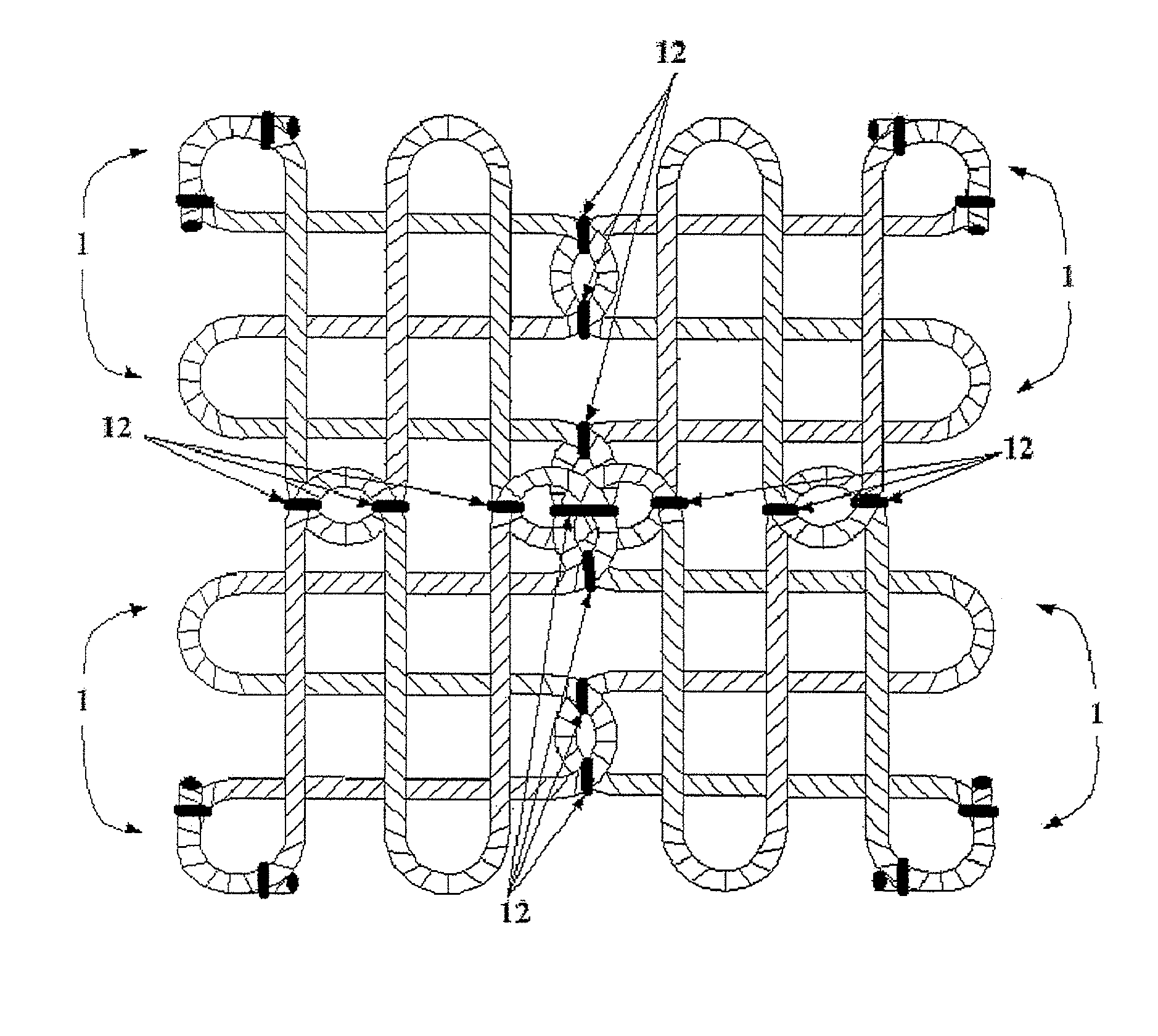

The present disclosure is an explosive matrix assembly that has a first single detonating cord formed into a first grid. The grid has a first plurality of detonating cord portions lying in a first plane and a second plurality of detonating cord portions lying in a second plane and the first plurality of detonating cord portions perpendicularly overlay the second plurality of detonating portions. The explosive matrix assembly further has a second single detonating cord formed into a second grid. The second grid has a third plurality of detonating cord portions lying in the first plane and a fourth plurality of detonating cord portions lying in the second plane and the third plurality of detonating cord portions perpendicularly overlay the second plurality of detonating portions. The first grid is coupled to the second grid via a fastener.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F42D Class
- 63 Applications Filed
- 55 Patents Issued To-Date
- 87.31 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F42D Class
- 35.71 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 29, 2028 |
