Submersible power generator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 29, 2016
Grant Date -
Aug 27, 2015
app pub date -
Oct 17, 2012
filing date -
Oct 17, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

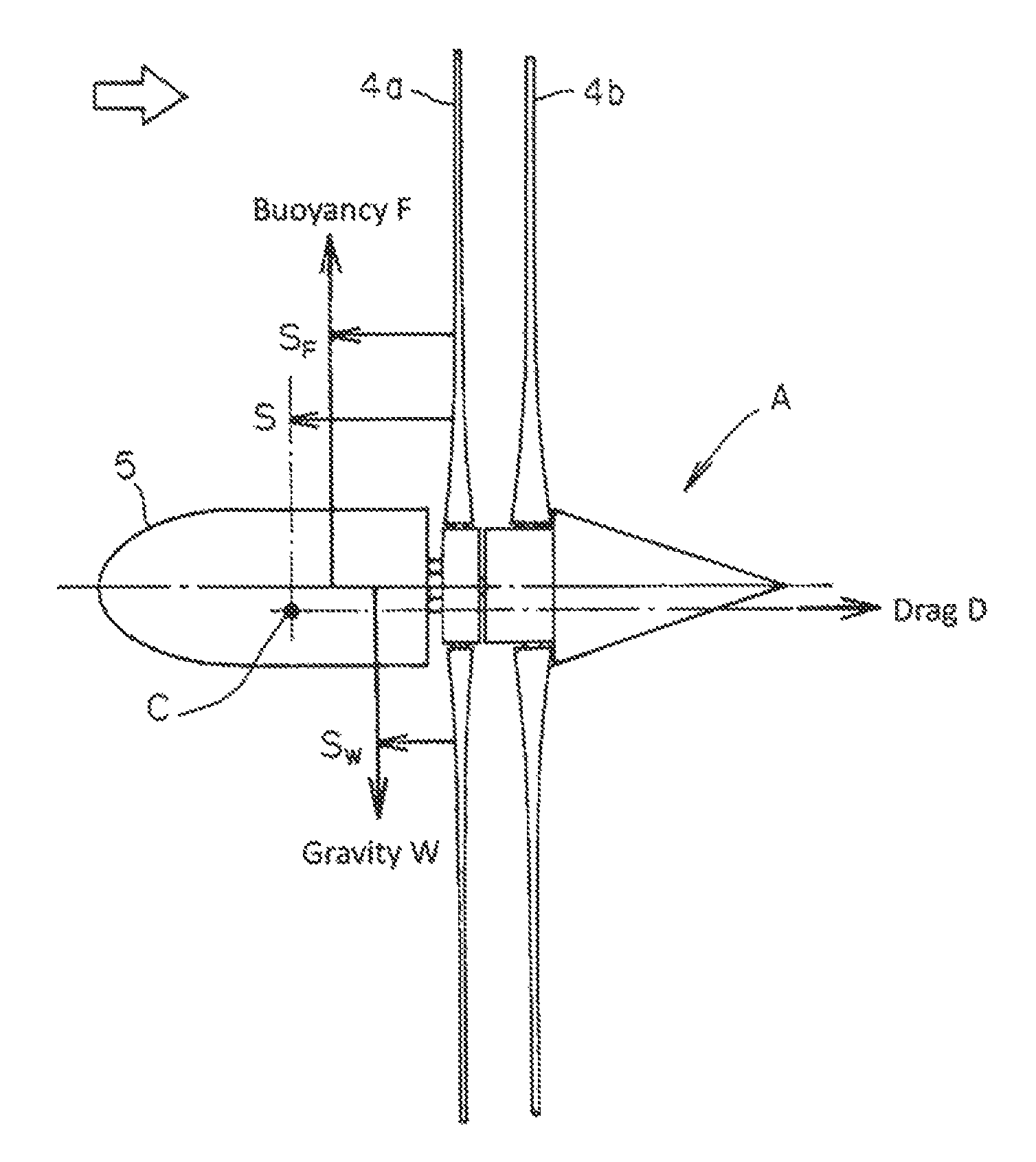

A submersible power generator with an inner/outer double rotational armatures-type power generation mechanism provided with an outer rotational armature and an inner rotational armature opposing the outer rotational armature and rotatable in a direction opposite of the outer rotational armature, and a pair of propellers disposed coaxially with blades of each of the pairs of propellers twists in opposite directions relative to an extending direction of a central axis of the pair of propellers, and a casing for accommodating and shielding the inner/outer double rotational armatures-type power generation mechanism. The submersible power generator, as installed under water to operate in a current, has a buoyancy F acting thereon that is larger than gravity W acting thereon during operation of the submersible power generator due to gravity acting on the mooring wire, so that F>W+gravity acting on the mooring wire−buoyancy acting on the mooring wire.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H02K Class
- 16.70 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 29, 2028 |
