Support rail and swing gear assembly for a mining vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 29, 2016
Grant Date -
Jan 14, 2016
app pub date -
Jul 8, 2014
filing date -
Jul 8, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

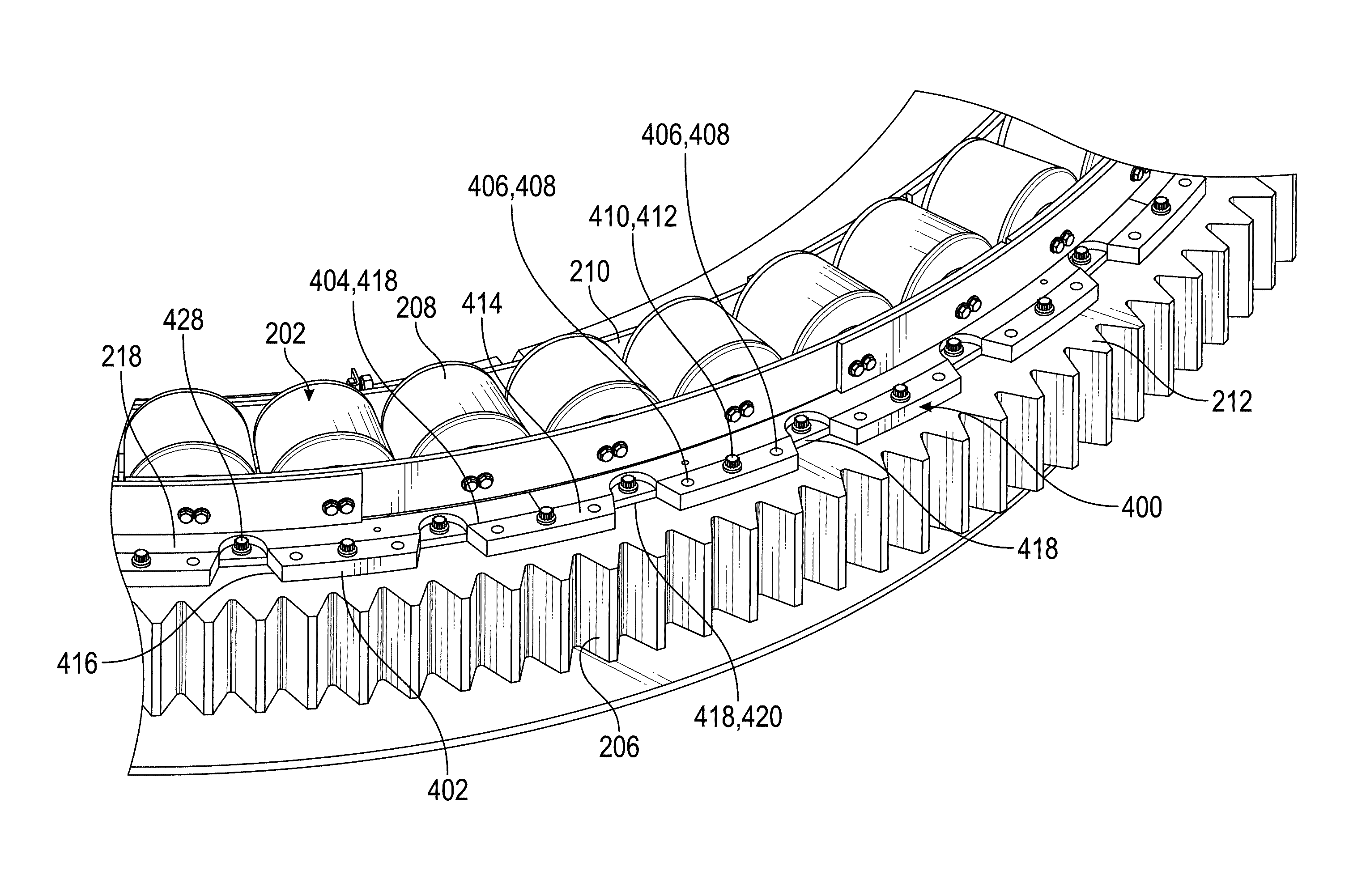

A support rail for a swing gear assembly having a thrust rail coupled to a swing gear includes a substantially horizontal first surface configured to be coupled to the swing gear such that the first surface engages a substantially horizontal top face of the swing gear, and a substantially vertical second surface intersecting the substantially horizontal first surface such that the second surface is substantially perpendicular to the first surface. The second surface is configured to engage a substantially vertical face of the thrust rail when the first surface is coupled to the swing gear. The first surface and the second surface are configured to inhibit a rotation of the thrust rail relative to the swing gear by engaging the top face of the swing gear and the vertical face of the thrust rail simultaneously.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B23P Class
- 1101 Applications Filed
- 767 Patents Issued To-Date
- 69.67 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B23P Class
- 25.84 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 29, 2028 |
