Organometallic adhesion promoters for paint-over-chrome plated polymers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 29, 2016
Issued Date -
N/A
app pub date -
Apr 22, 2014
filing date -
May 15, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

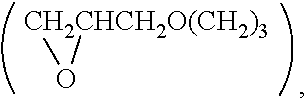

Provided are robust paint coating systems on metal-coated plastic substrates and processes for forming such material systems as decorative components. An organometallic adhesion promoter is applied to a metal-coated plastic substrate. The metal coating comprises chromium (Cr), nickel (Ni) or combinations thereof. The organometallic adhesion promoter comprises (i) a transition metal selected from the group consisting of: zirconium (Zr), titanium (Ti), chromium (Cr), and combinations thereof, (ii) a first ligand complexed to the transition metal comprising an organofunctional group, and (iii) a second ligand complexed to the transition metal having a hydrolysable functional group. Then, one or more organic paint precursor materials are applied thereon. The hydrolysable functional group is capable of reacting with the metal-coated substrate and the organofunctional group with at least a portion of the organic paint precursor material to form a robust polymeric paint coating having a robust bond with the metal-coated plastic substrate below.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- C23C Class
- 2649 Applications Filed
- 2034 Patents Issued To-Date
- 76.79 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C23C Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 29, 2028 |
