Device for employment in a machine tool as well as machine tool
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 29, 2016
Grant Date -
Oct 9, 2014
app pub date -
Nov 20, 2012
filing date -
Nov 21, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

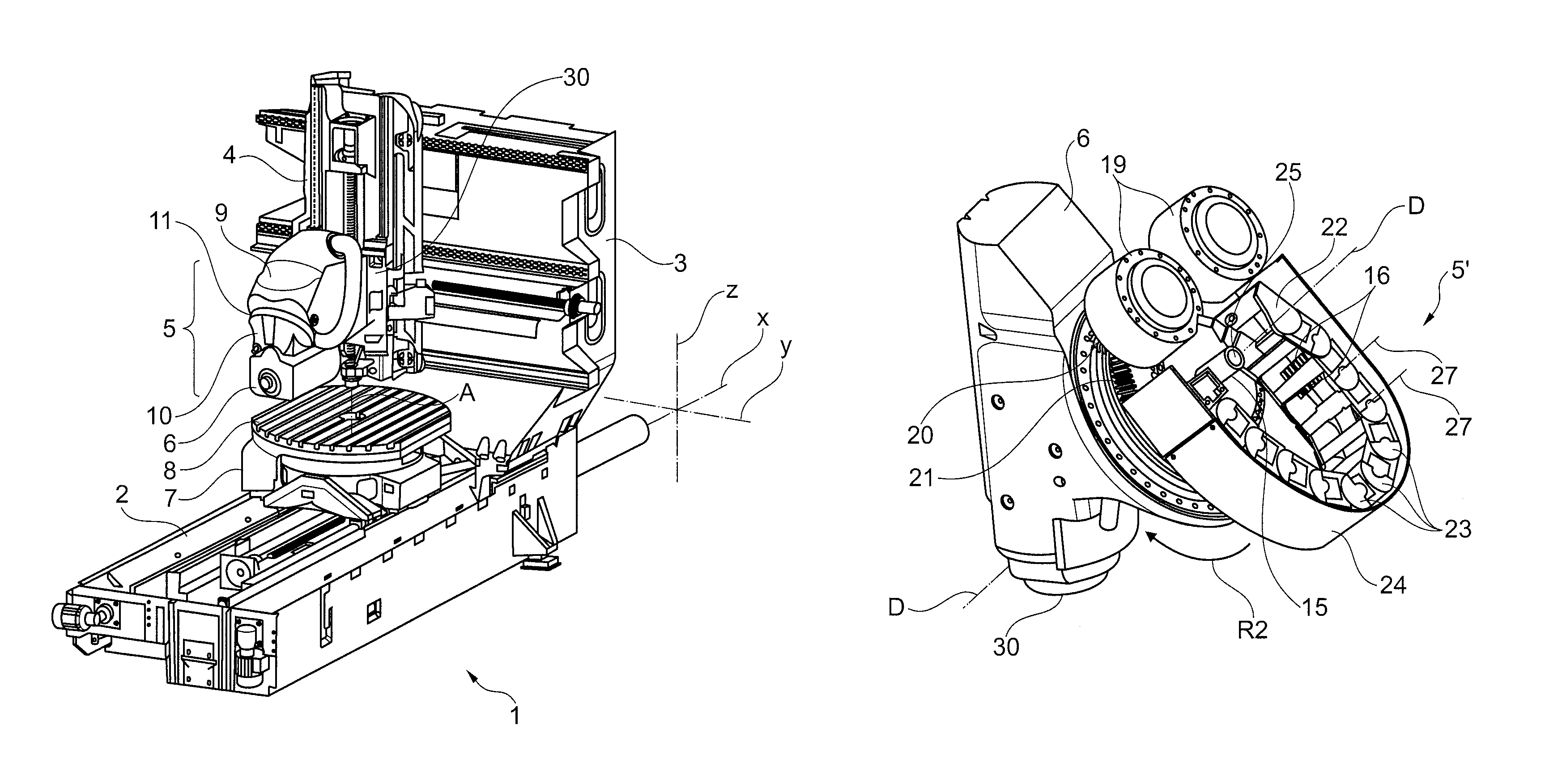

A device for employment in a machine tool, including: a first unit; a second unit connected to the first unit, wherein the first unit is rotatable around a rotational axis relative to the second unit; a motor spindle connected to the second unit; a line feed-through extending along the rotational axis from the first to the second unit; lines extending from the interior of the first unit through the line feed-through as well as through the second unit into the motor spindle; and a line guiding device formed in the first unit and serving for guiding a part of the lines disposed in the first unit immediately in front of the line feed-through, wherein the line guiding device is formed in a plane oriented perpendicularly to the rotational axis, and wherein the line guiding device feeds the lines upon rotation of the second unit with respect to the first unit.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B23Q Class
- 581 Applications Filed
- 430 Patents Issued To-Date
- 74.02 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B23Q Class
- 20.59 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 29, 2028 |
