Coin feeder

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9501886
APP PUB NO 20150294524A1
SERIAL NO

14440730

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

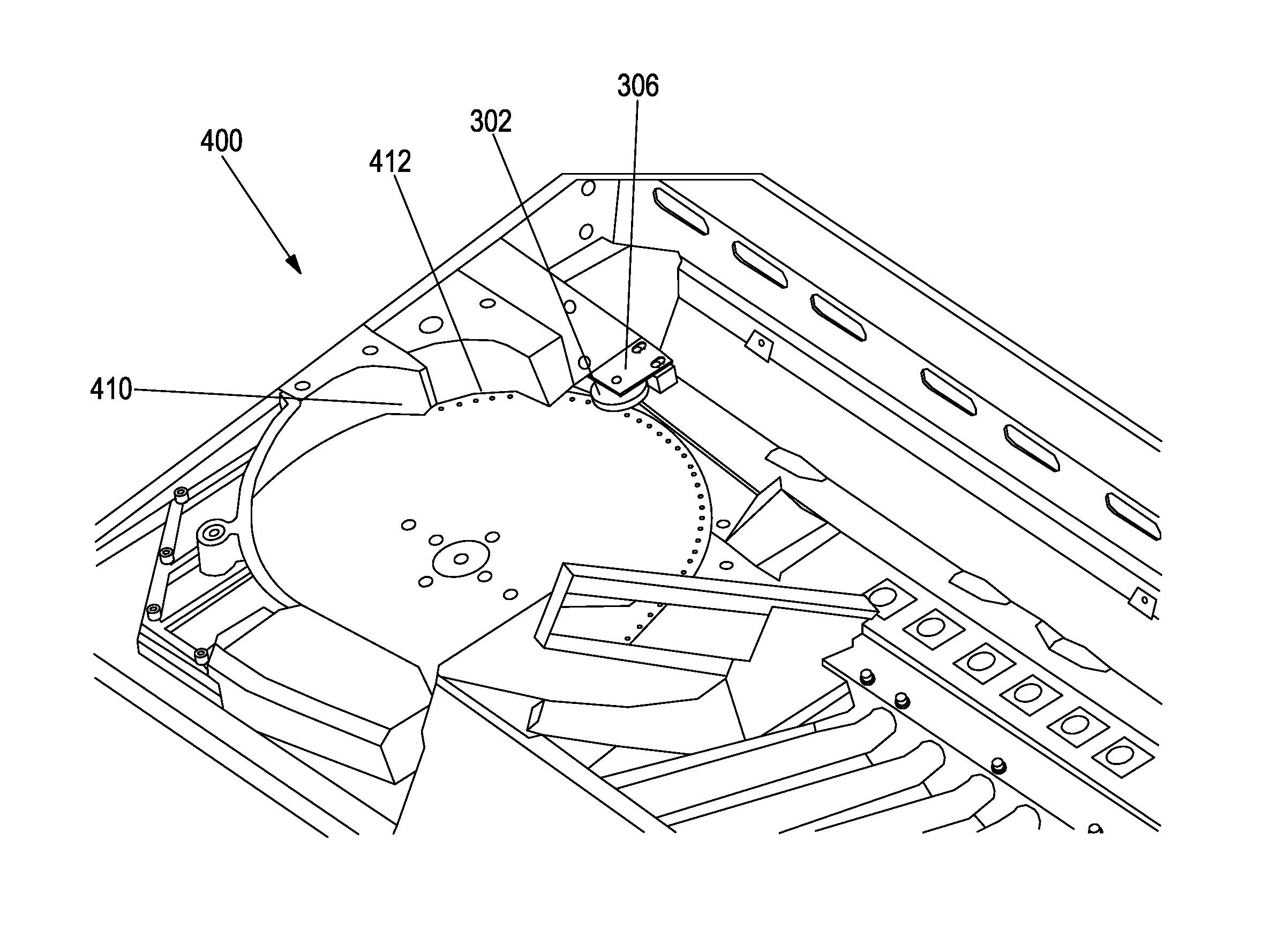

The invention provides a coin feeder for feeding coins to a coin sensor. The coin feeder comprises a hopper disc having a first surface and arranged to receive coins on the first surface, and to transport the coins along a first path towards the coin sensor. The coin feeder also comprises one or more coin deflectors to deflect coins received on the first surface from the first path if the coins are above a threshold thickness. At least one of the one or more coin deflectors comprises a rotatable member spaced from the first surface.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
SCAN COIN AB211 19 MALMÖ

International Classification(s)

loading....
  • 2013 Application Filing Year
  • G07D Class
  • 234 Applications Filed
  • 210 Patents Issued To-Date
  • 89.75 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances2013201420152016201720182019202020210255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Scott-Brown, Simon Newport Shropshire, GB 1 0

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 0 Citation Count
  • G07D Class
  • 0 % this patent is cited more than
  • 9 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges135432101 - 1011 - 2021 - 3071 - 8002.557.51012.51517.52022.52527.53032.53537.54042.54547.55052.55557.5

Forward Cite Landscape

Load Citation

Maintenance Fees

Fee Large entity fee small entity fee micro entity fee due date
11.5 Year Payment $7400.00 $3700.00 $1850.00 May 22, 2028
