Hinged arm safety mechanism for foam dart launcher
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 22, 2016
Grant Date -
Oct 29, 2015
app pub date -
Jul 8, 2015
filing date -
Jun 4, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance

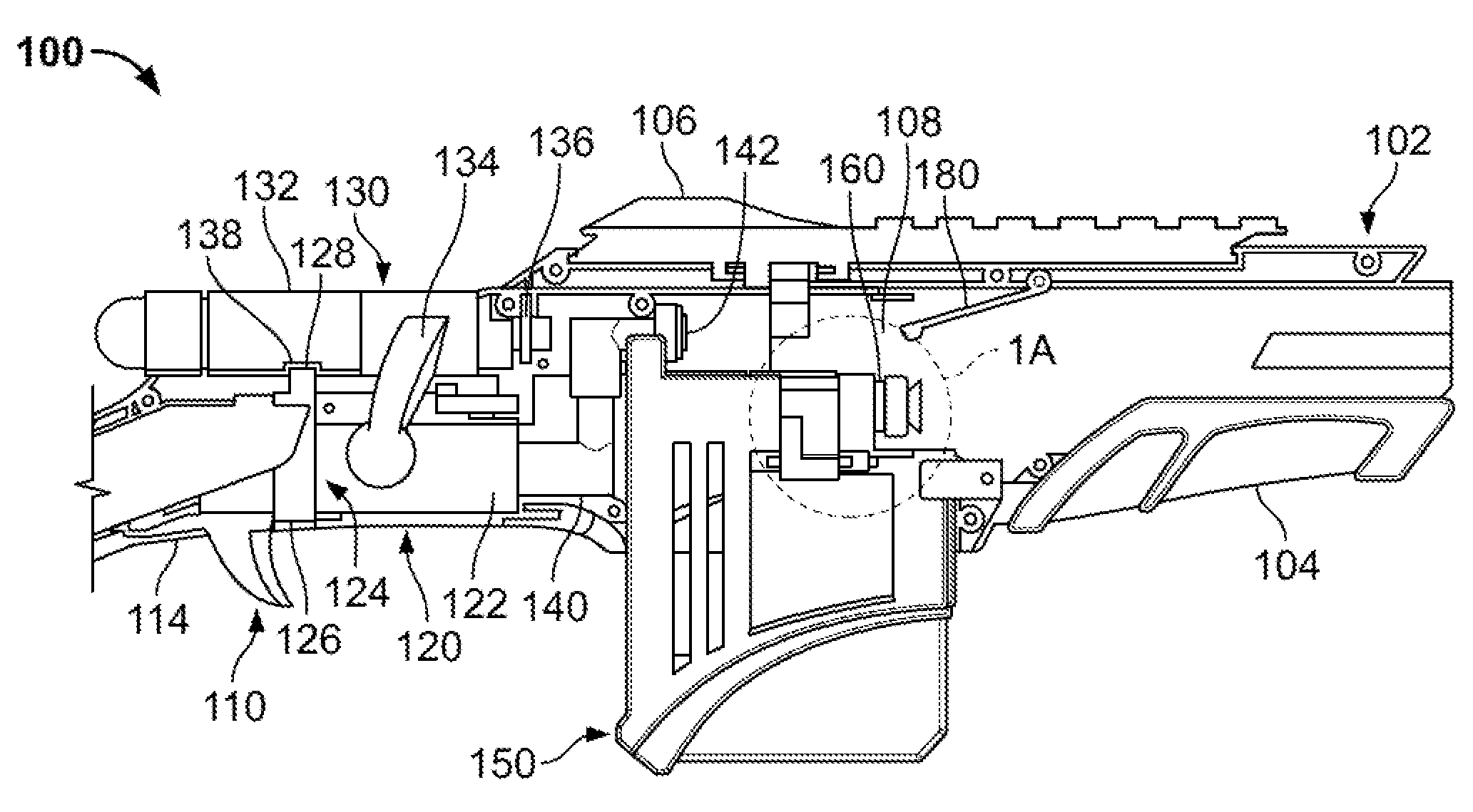

Abstract
A dart launcher comprises a housing, a safety arm, and a trigger. The housing includes a launching section configured to receive a dart having a minimum threshold length. The safety arm is movably attached to the housing and extends at least partially across the launching section. The safety arm is positioned so that the dart having the minimum threshold length engages at least a portion of the safety arm upon insertion into the launching section. The trigger is movable with respect to the housing and is operable to cause the dart having the minimum threshold length to launch from the launching section.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F41B Class
- 196 Applications Filed
- 181 Patents Issued To-Date
- 92.35 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 9 Citation Count
- F41B Class
- 7.74 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 22, 2028 |
