Vehicle tie-down cleat assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 22, 2016
Grant Date -
N/A
app pub date -
Mar 2, 2016
filing date -
Mar 2, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

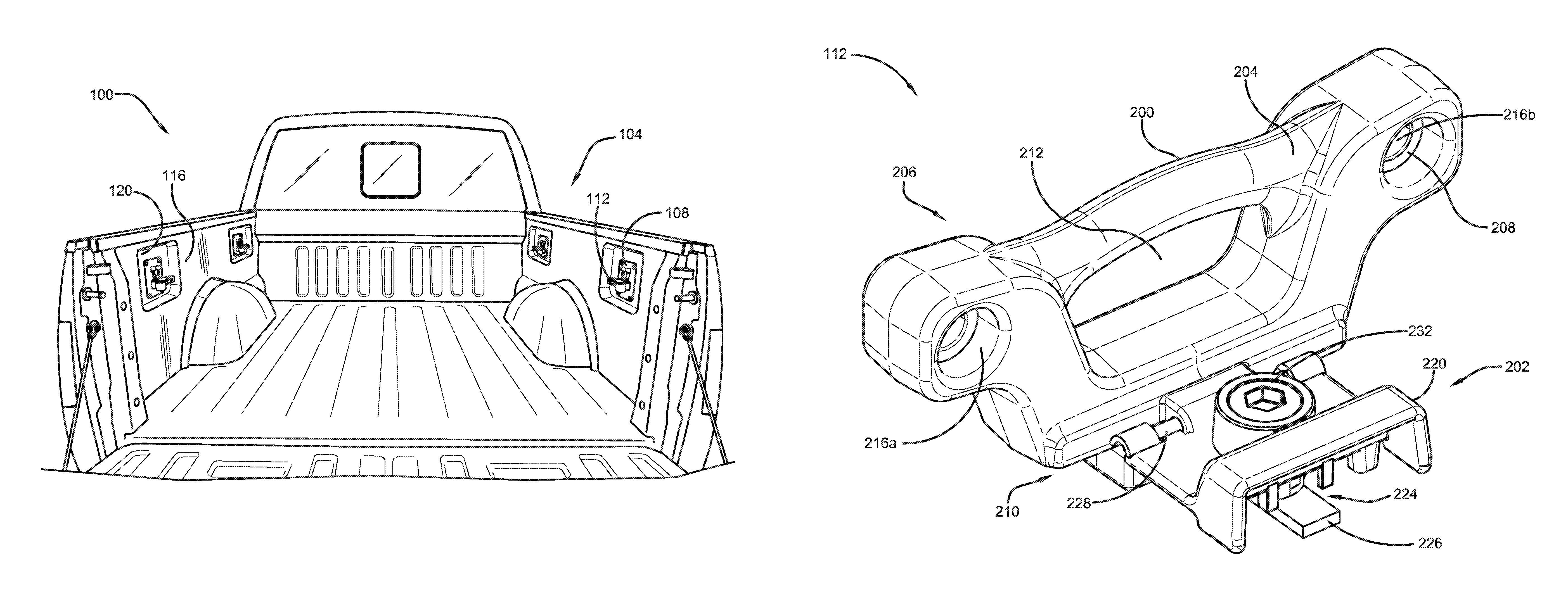

A vehicle tie-down cleat assembly can include (i) a tie-down cleat defining an upper portion and a lower portion, wherein the upper portion defines at least one aperture or member configured to receive a tying member, and wherein the tie-down cleat comprises a plastic housing and a metal insert disposed within the plastic housing, and (ii) a base assembly coupled to the lower portion of the tie-down cleat and configured to be removably coupled to a surface of a storage compartment of the vehicle, the base assembly comprising a base member, a hinge coupled to the lower portion of the tie-down cleat and the base member, the hinge being configured to allow the tie-down cleat to rotate with respect to the base assembly, and a locking system configured to lock/unlock the tie-down cleat assembly to a mounting plate mounted to a surface of a vehicle storage compartment.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B60P Class
- 693 Applications Filed
- 542 Patents Issued To-Date
- 78.22 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- B60P Class
- 13.67 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 22, 2028 |
